FixVault
Home
›
Nissan-Datsun
›
2017
›
Sentra SL
›
Repair and Diagnosis
›
Steering
›
Steering Column
›
Steering System
›
Removal And Installation
›
Lower Joint
›
Exploded View
Exploded View
MRA8DE

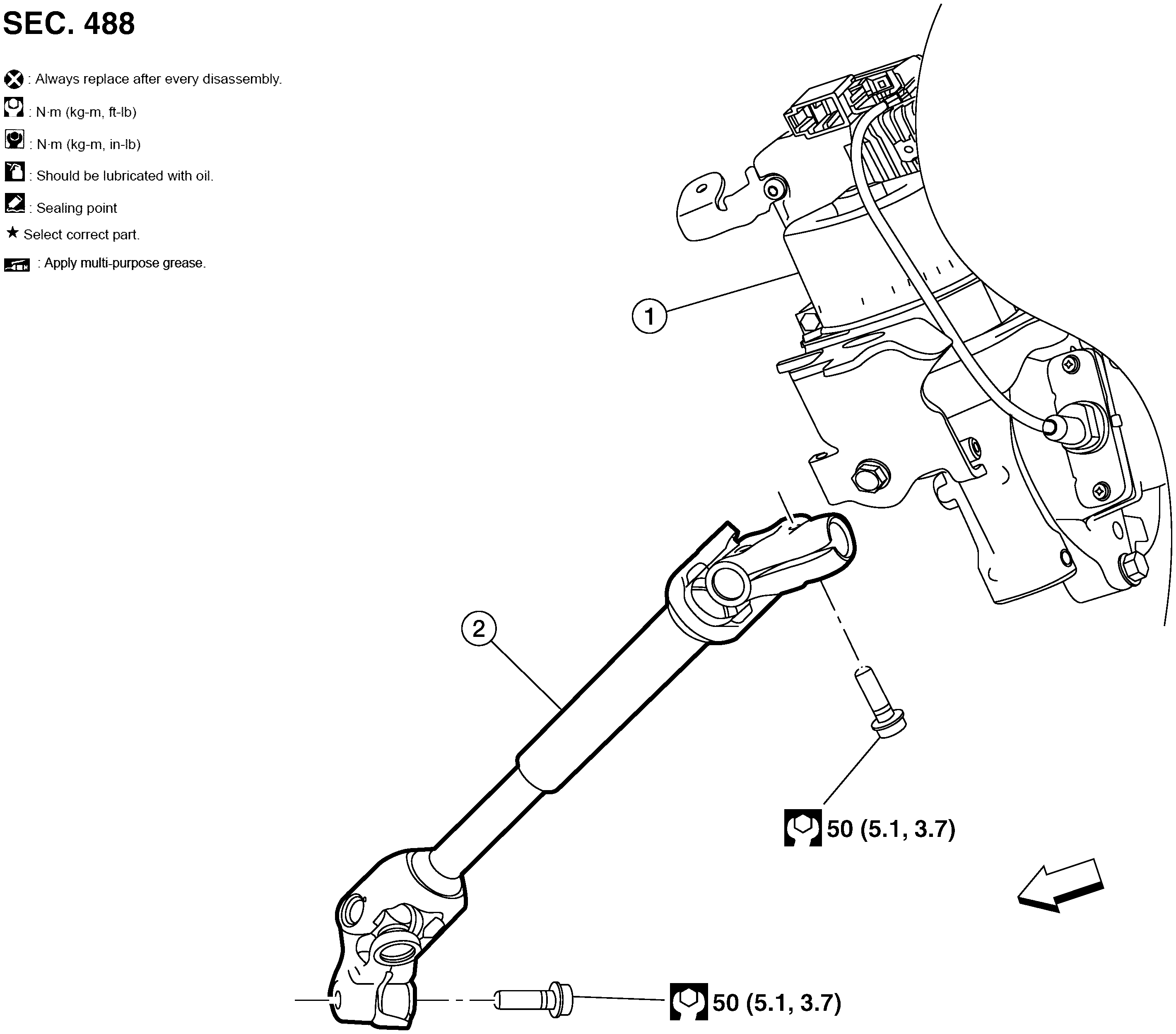

Fig 1: Lower Joint MRA8DE With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering column
2.
Lower joint
Front
MR16DDT

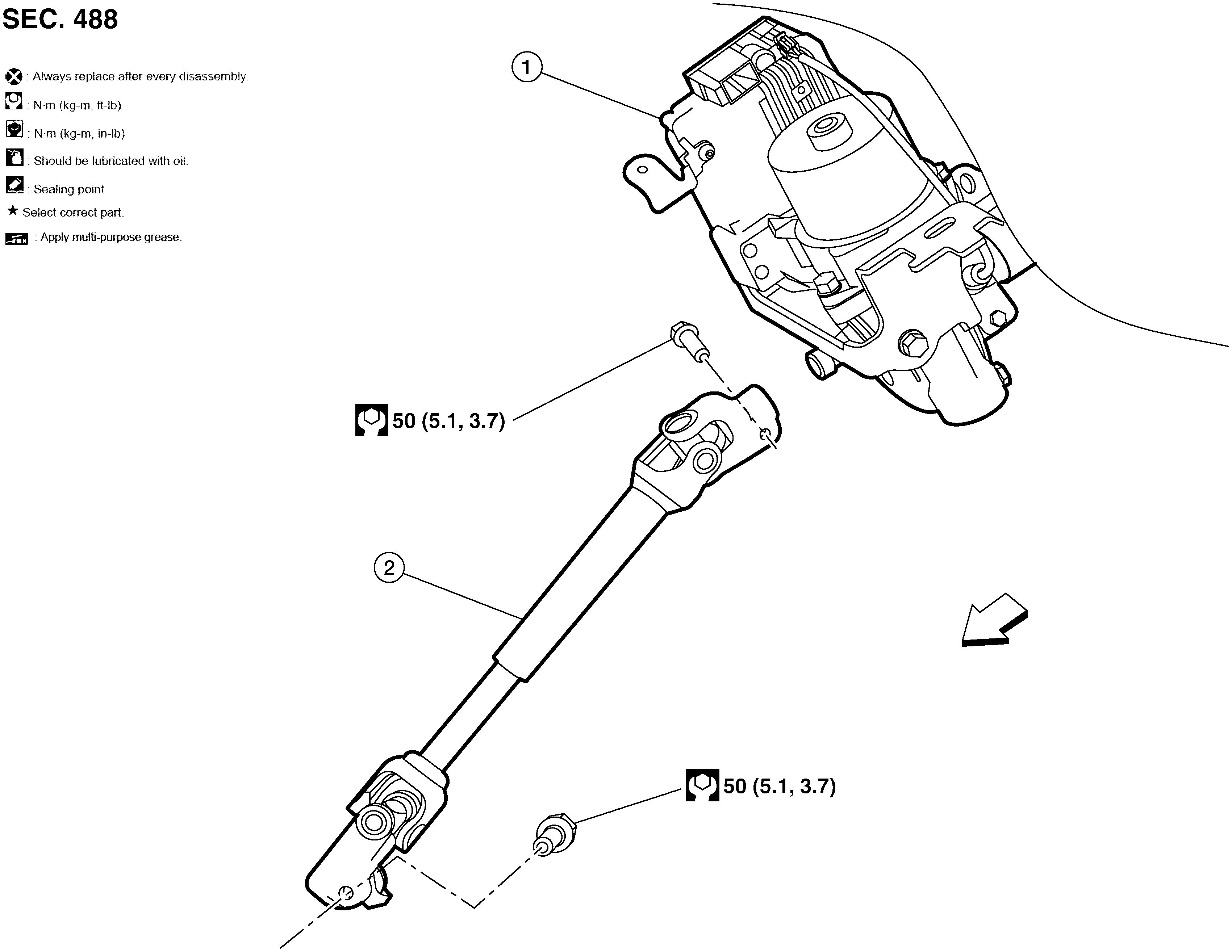

Fig 2: Lower Joint MR16DDT With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering column
2.
Lower joint
Front
