Exploded View
›
Removal
Exploded View: Removal
MRA8DE engine

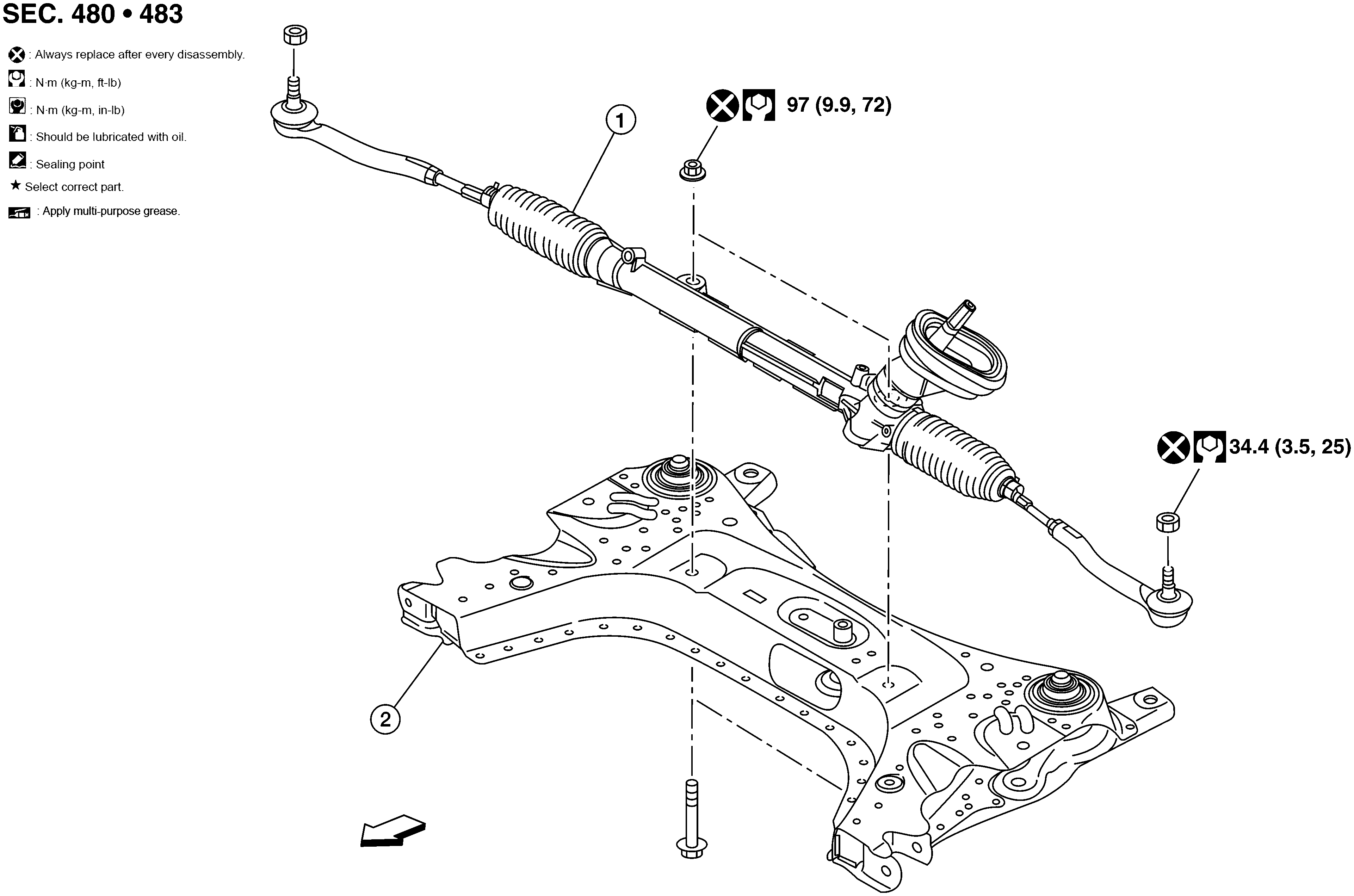

Fig 1: Steering Gear And Linkage Unit Removal And Installation MRA8DE With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering gear assembly
2.
Front suspension member
Front
MR16DDT engine

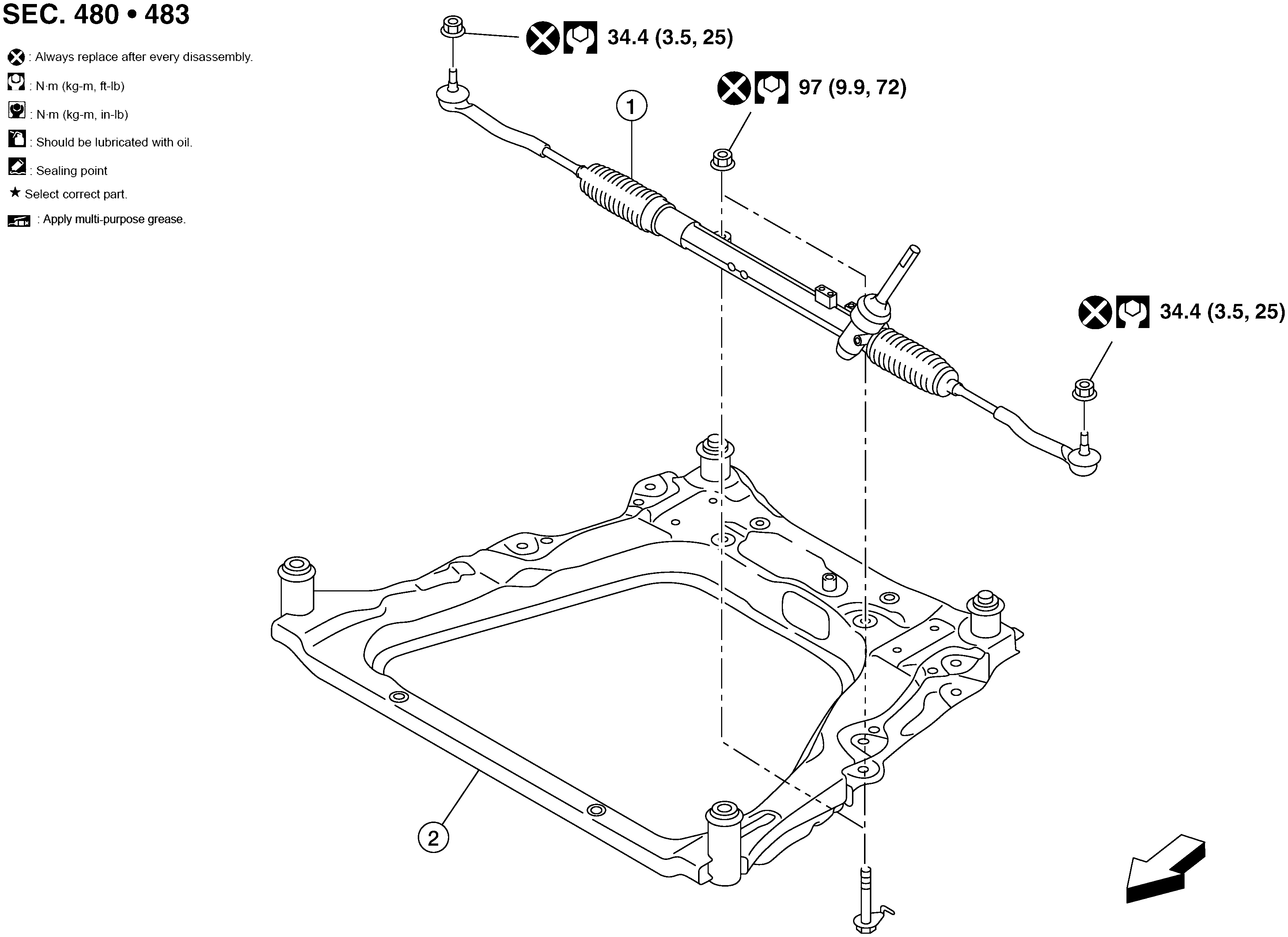

Fig 2: Steering Gear And Linkage Unit Removal And Installation MR16DDT With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering gear assembly
2.
Front suspension member
Front
