Exploded View - MR16DDT

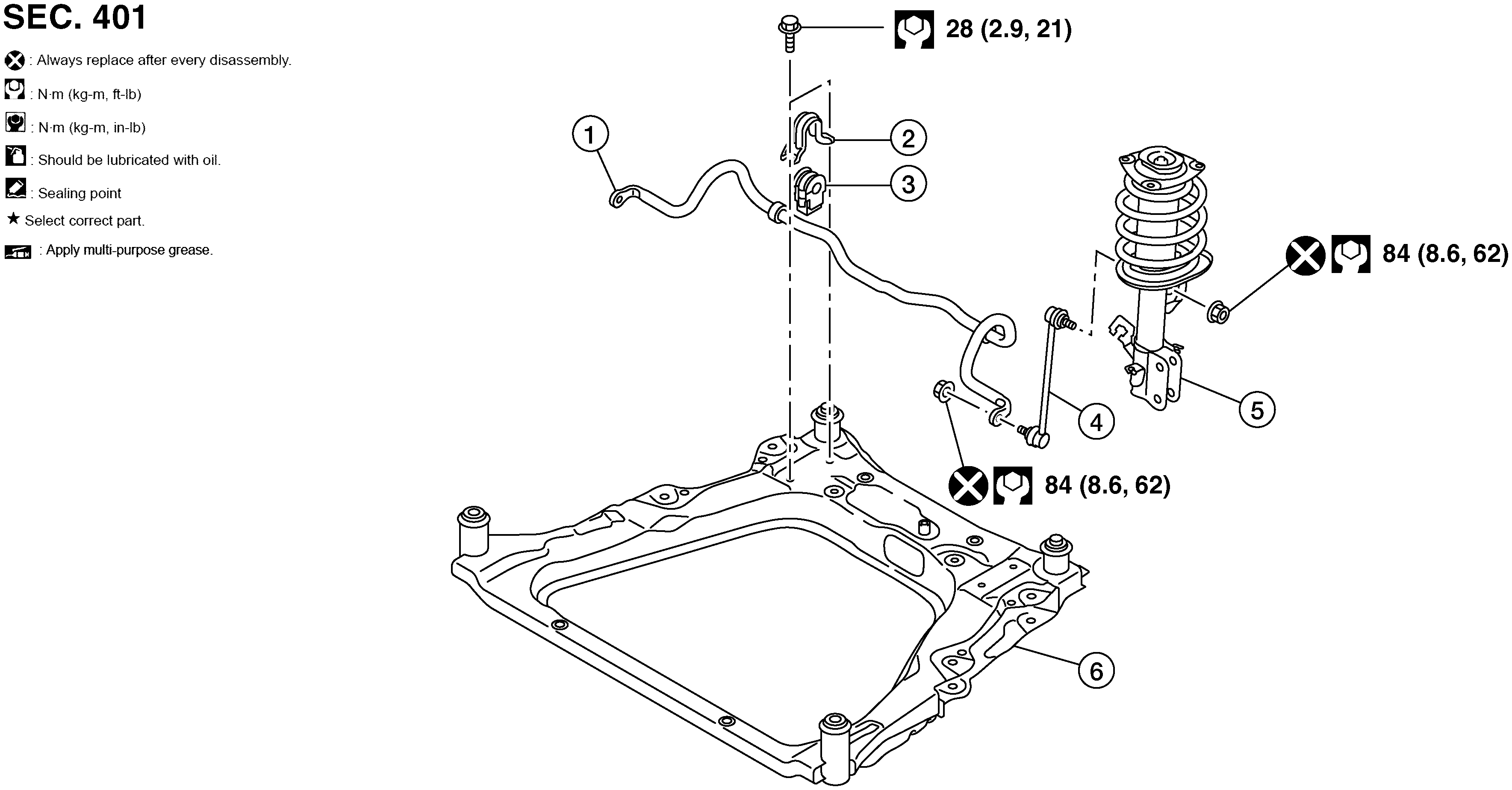

Fig 1: Front Stabilizer MR16DDT With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Stabilizer bar	2.	Stabilizer clamp	3.	Stabilizer bushing
4.	Stabilizer connecting rod	5.	Front coil spring and strut	6.	Front suspension member
