Exploded View

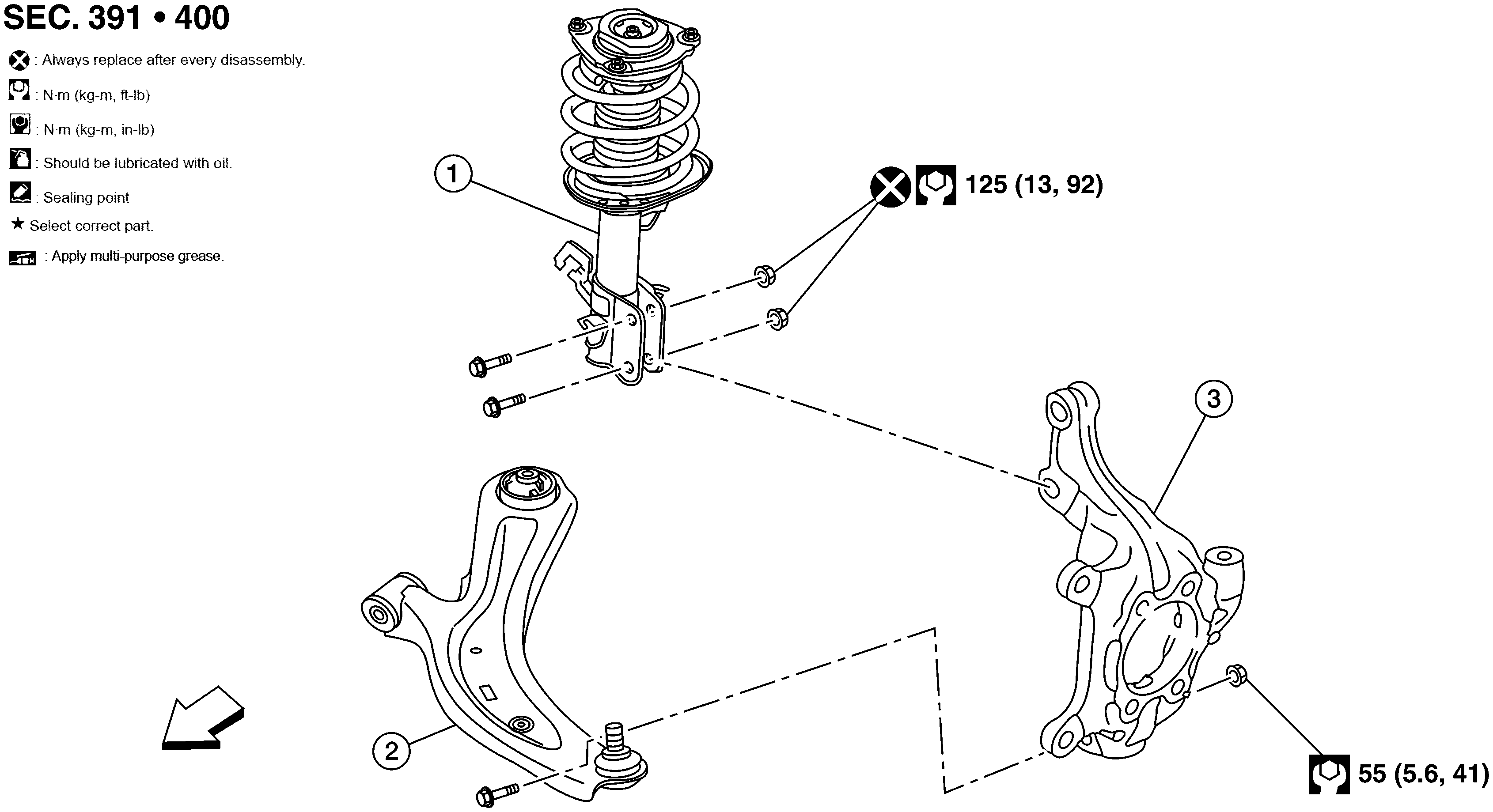

Fig 1: Steering Knuckle With Torque Specifications
GNSAWEIA0311ZZ-311Courtesy of NISSAN NORTH AMERICA, INC.
1. Front coil spring and strut 2. Transverse link 3. Steering knuckle
ARROW Front
