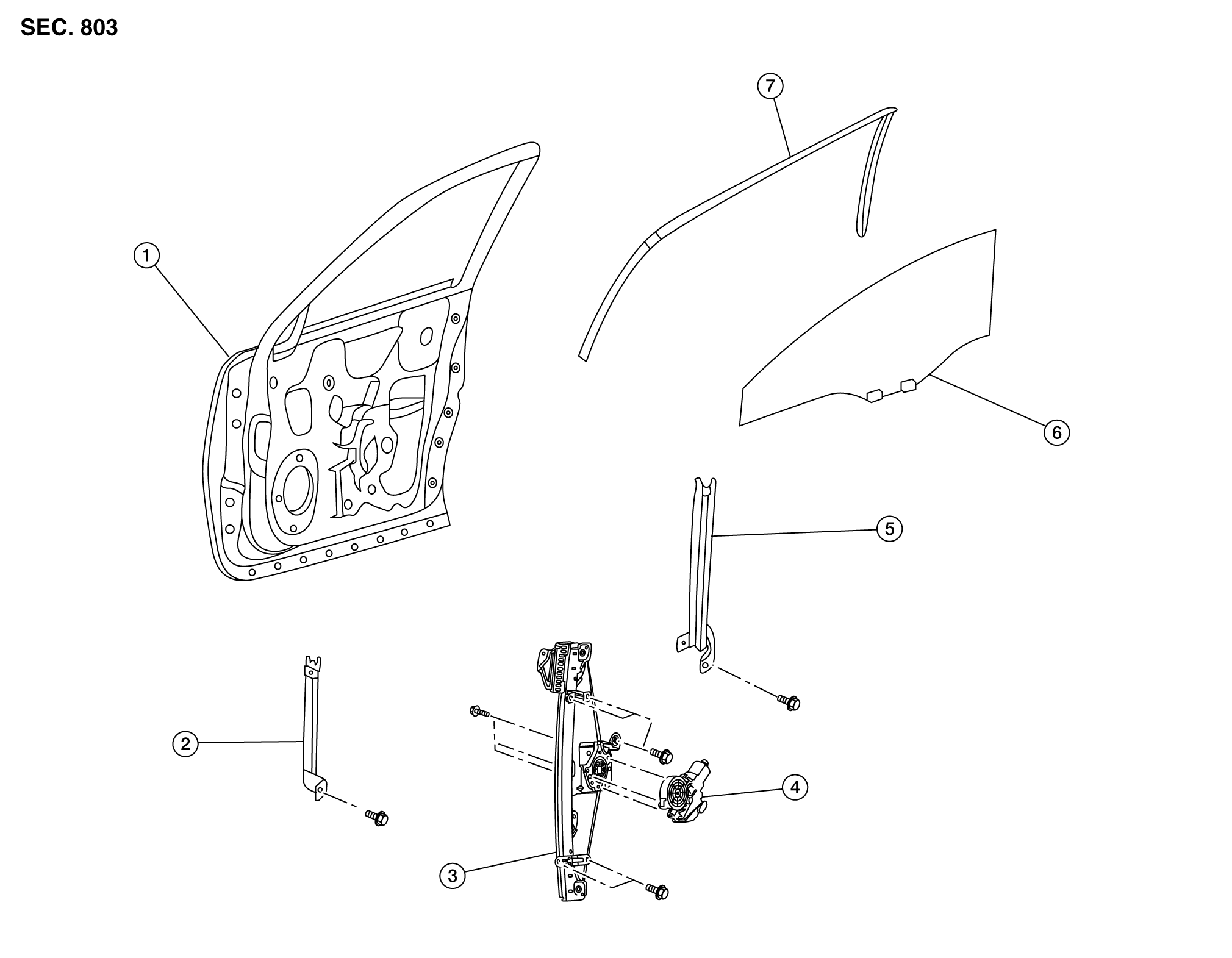

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front door panel	2.	Front door glass channel front	3.	Front door glass regulator
4.	Front door glass regulator motor	5.	Front door glass channel rear	6.	Front door glass
7.	Front door glass rubber run
