Exploded View - MRA8DE

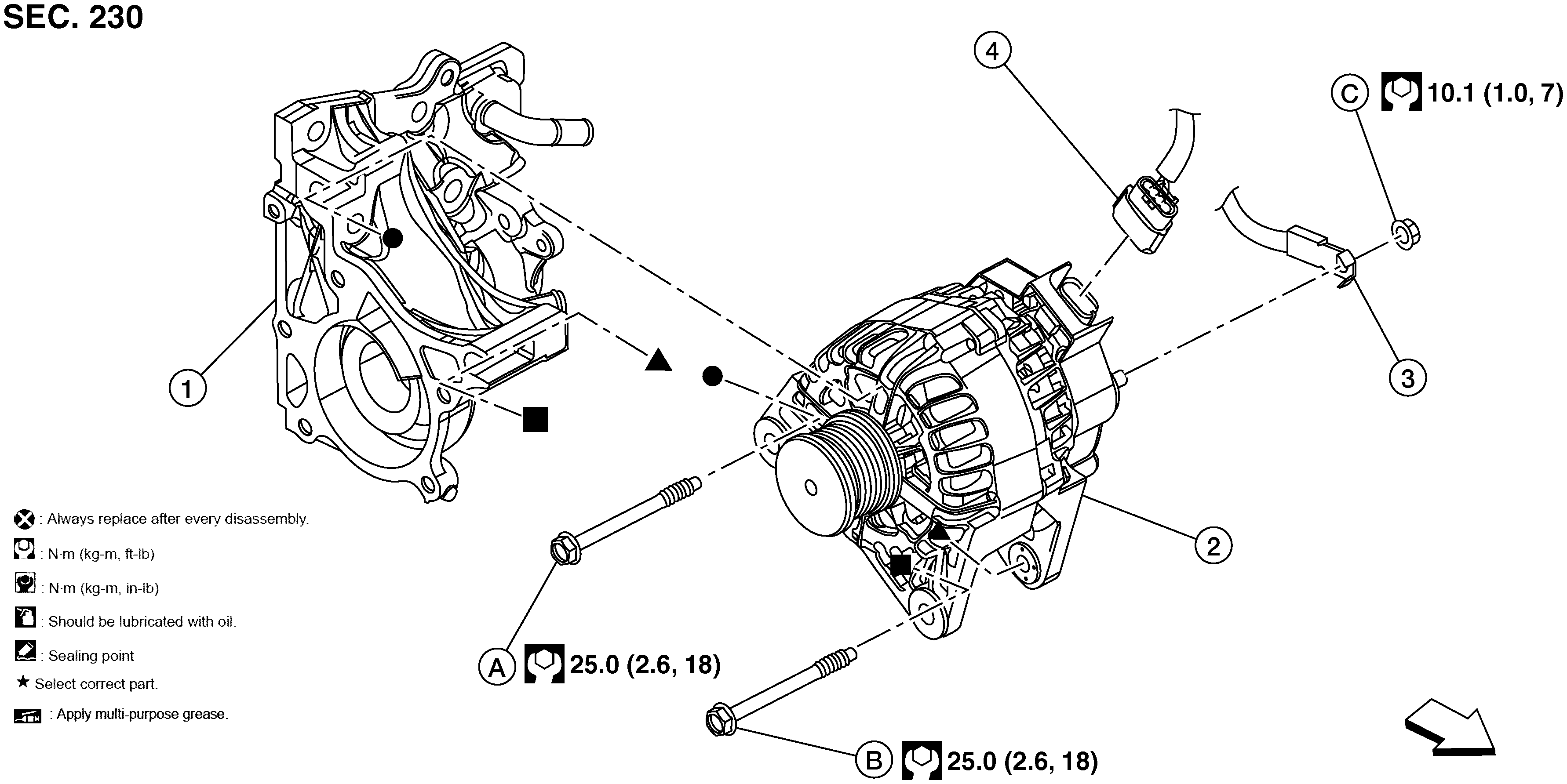

Fig 1: Generator MRA8DE With Torque Specifications

GNSAWMIA1904ZZ-904

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Thermostat housing	2.	Generator	3.	"B" terminal harness
4.	Harness connector
A.	Generator bolt (upper)	B.	Generator bolt (lower)	C.	"B" terminal nut
	Front
