Section 5 (Engine Control System (Introduction) (1.6L))
›
System Description
›
System
›
Turbocharger Boost Control
›

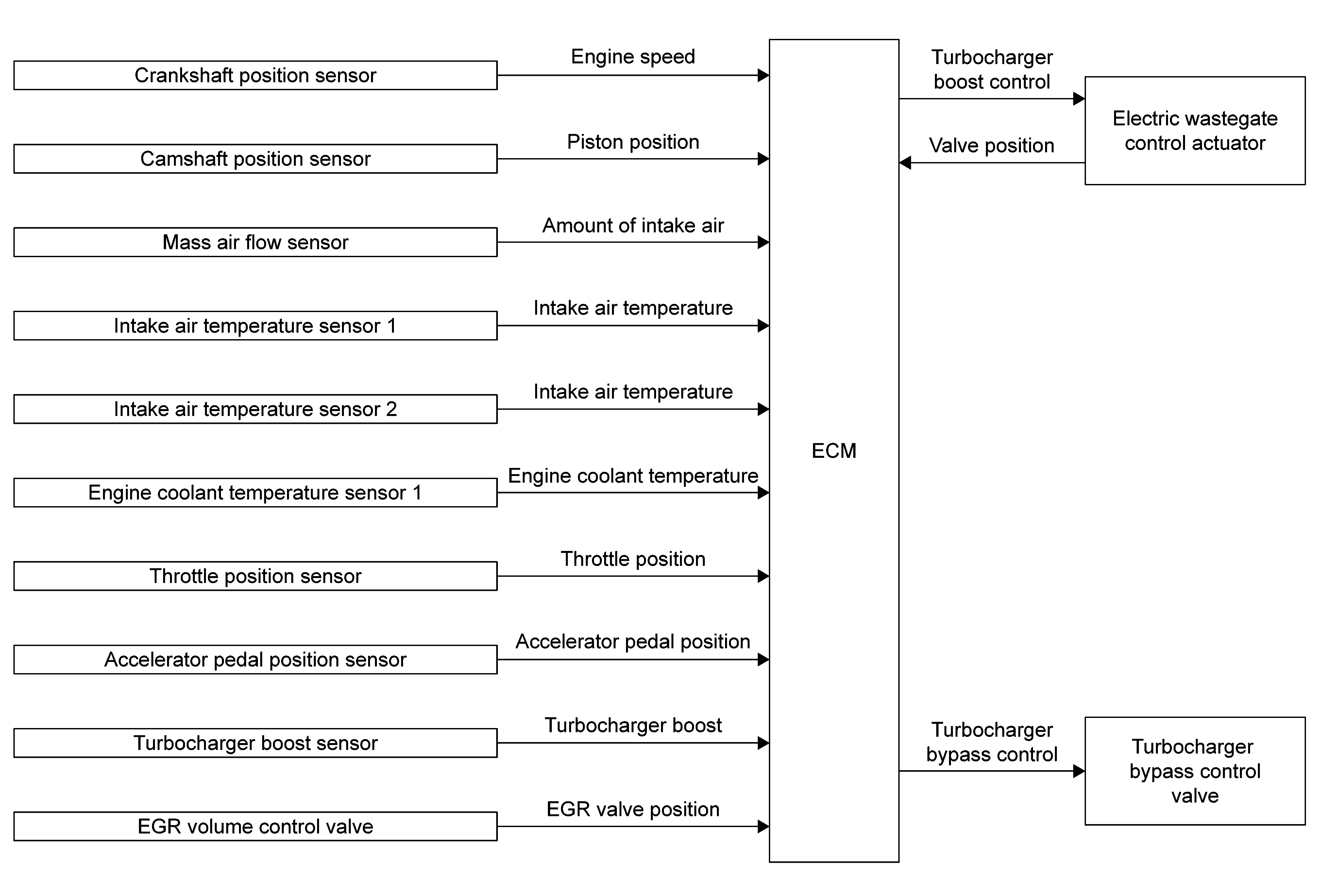

System Diagram
System Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of NISSAN NORTH AMERICA, INC.
