Exploded View With Torque Specifications

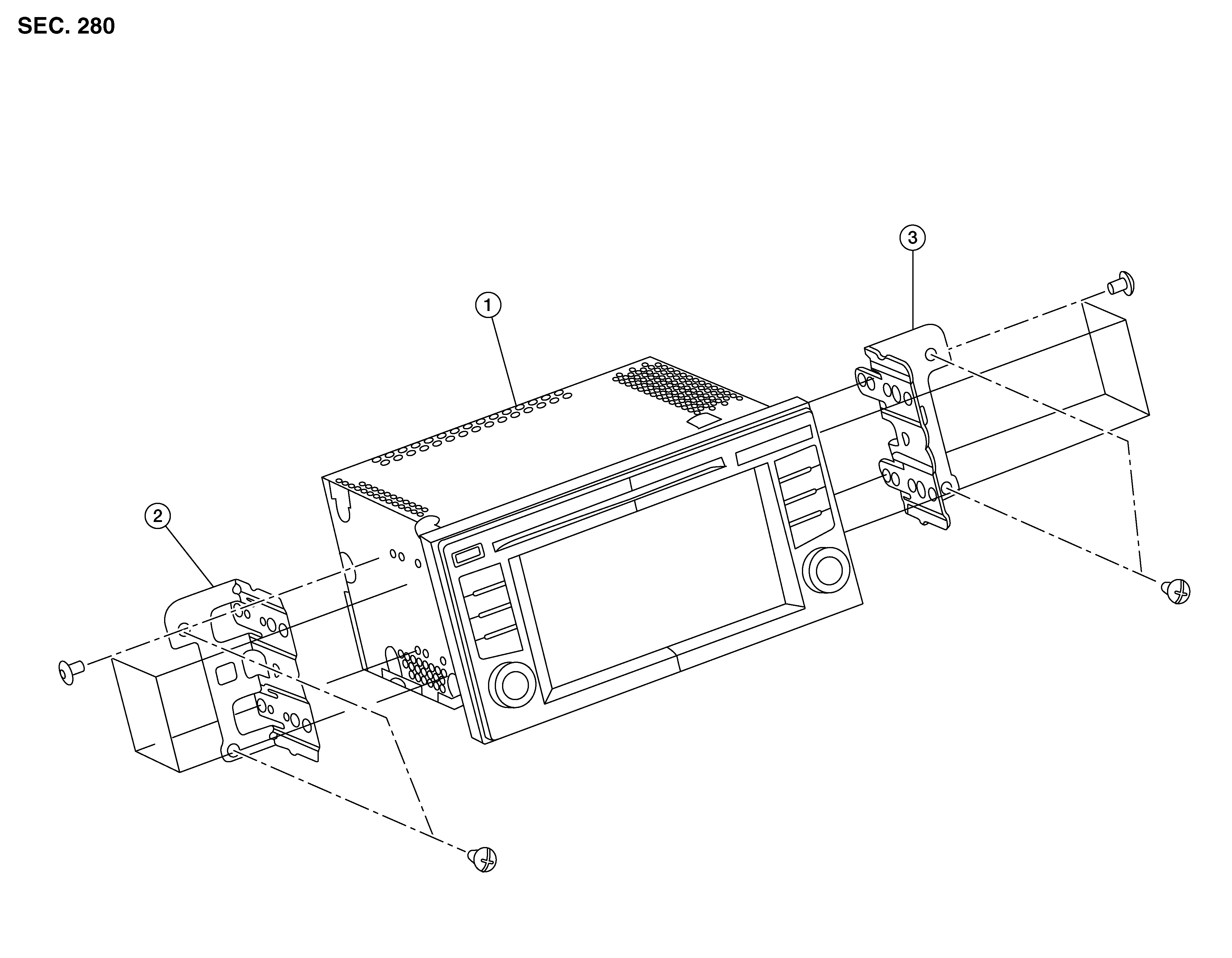

GNSAWNIA3949ZZ-949Courtesy of NISSAN NORTH AMERICA, INC.
1. AV control unit 2. AV control unit bracket (LH) 3. AV control unit bracket (RH)
