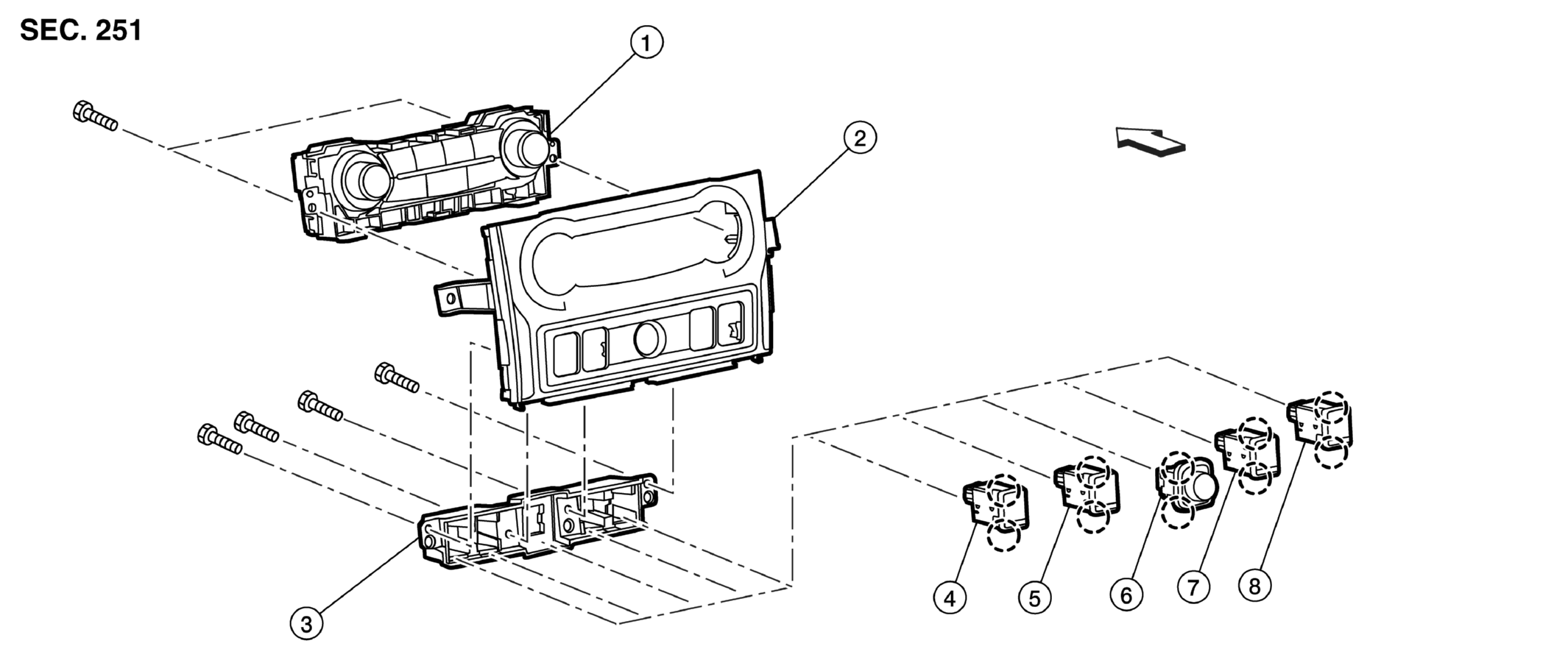

Exploded View

Courtesy of NISSAN NORTH AMERICA, INC.

1.	A/C switch assembly	2.	Cluster lid C	3.	Switch carrier
4.	VDC OFF switch	5.	Sonar system off switch (if equipped)	6.	Hazard switch
7.	Blind spot warning switch (if equipped)	8.	Heated steering wheel switch (if equipped)		Front
