Exploded View

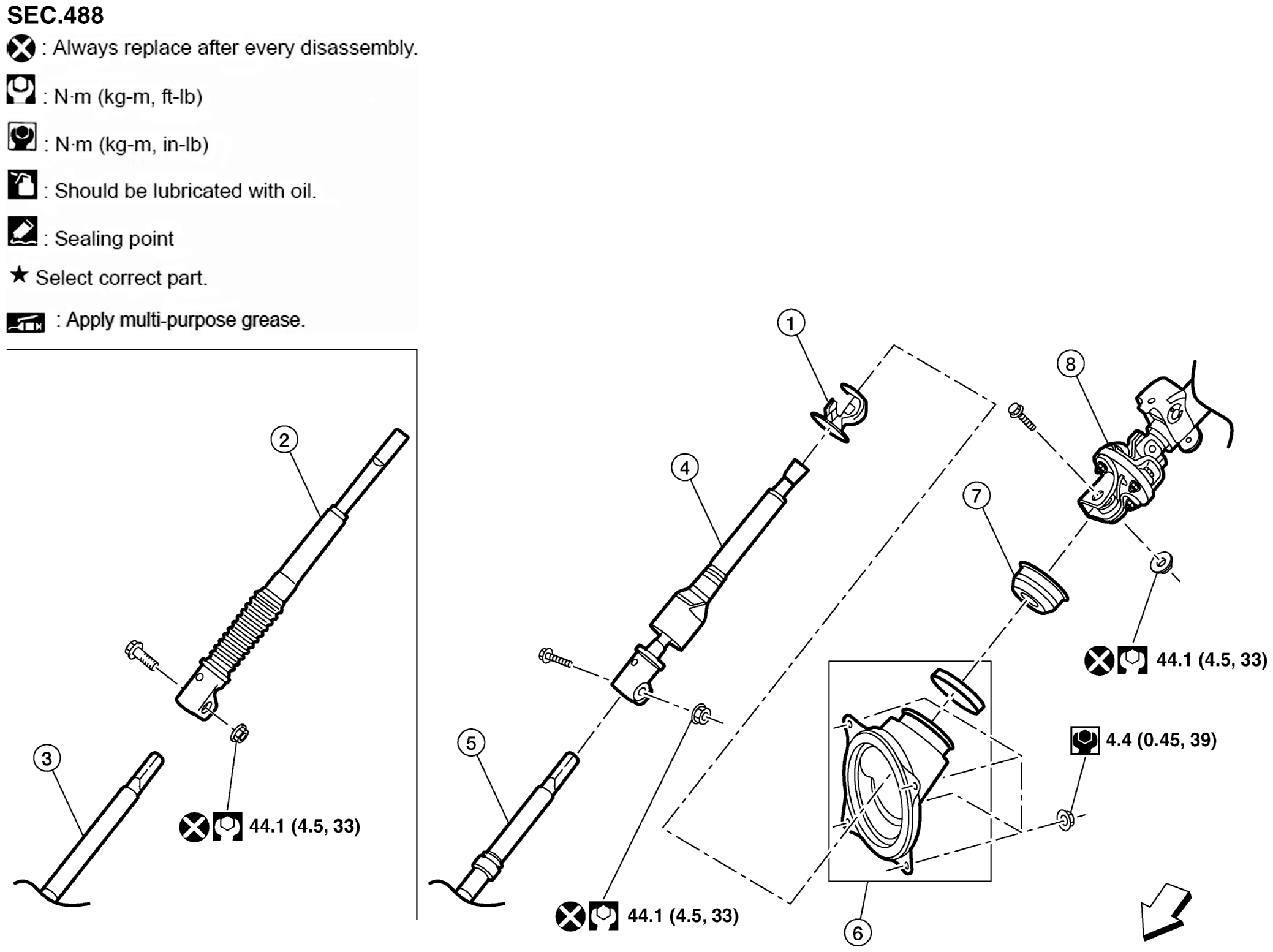

Fig 1: Intermediate Shaft With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering Column Collar	2.	Intermediate Shaft (Non-XD Models)	3.	Lower Joint (Non-XD Models)
4.	Intermediate Shaft (XD Models)	5.	Lower Joint (XD Models)	6.	Hole Cover And Clamp
7.	Hole Cover Seal	8.	Steering Column		Front
