Titan PRO-4X, 4D Pickup
›
Repair and Diagnosis
›
Steering
›
Steering Column
›
Steering System
›
Removal And Installation
›
Steering Wheel
›
Exploded View
Exploded View

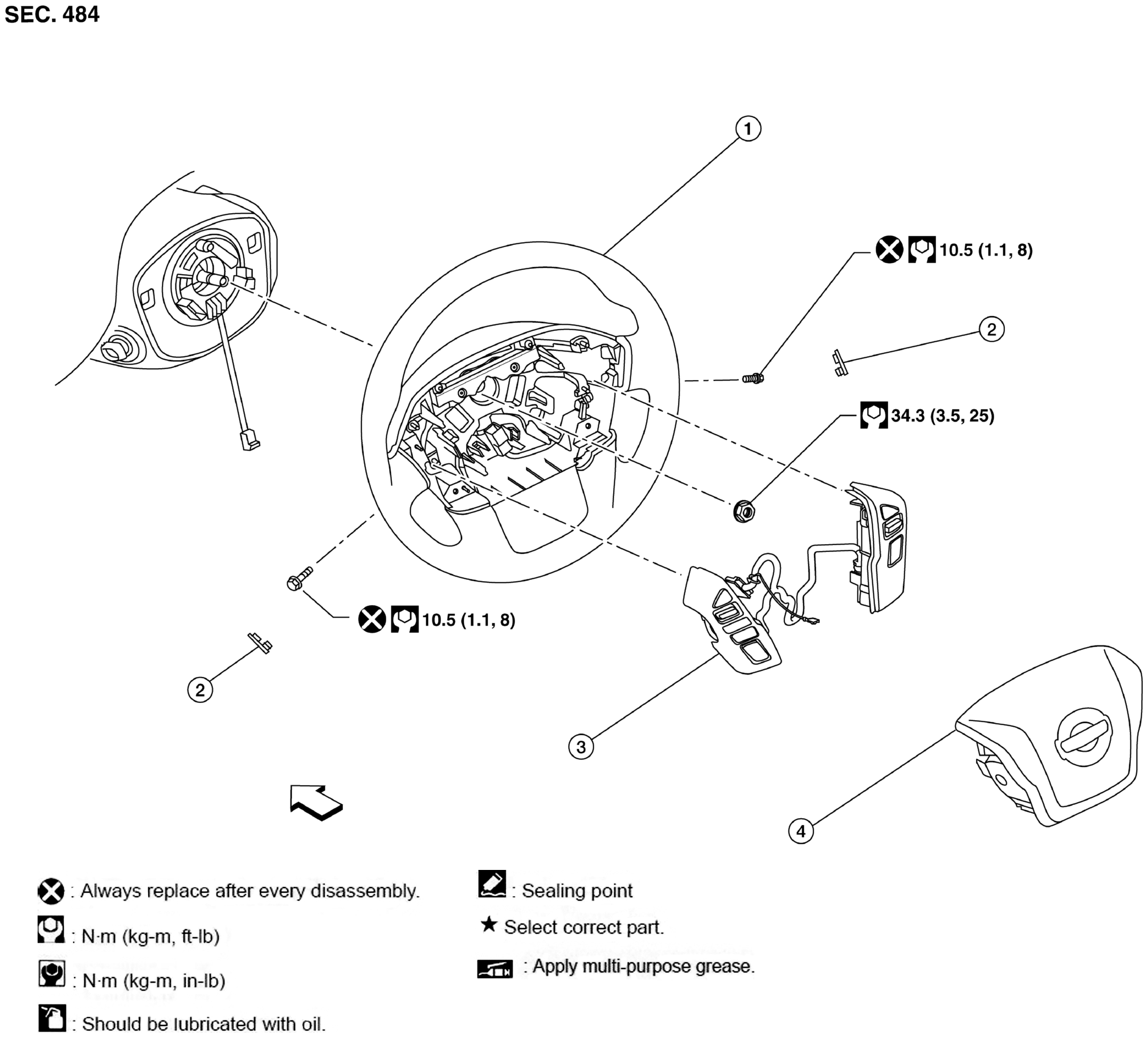

Fig 1: Steering Wheel With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering wheel
2.
Cover
3.
Steering switches
4.
Driver air bag module
Front
Courtesy of NISSAN NORTH AMERICA, INC.
