Engine Control System: Wiring Diagram

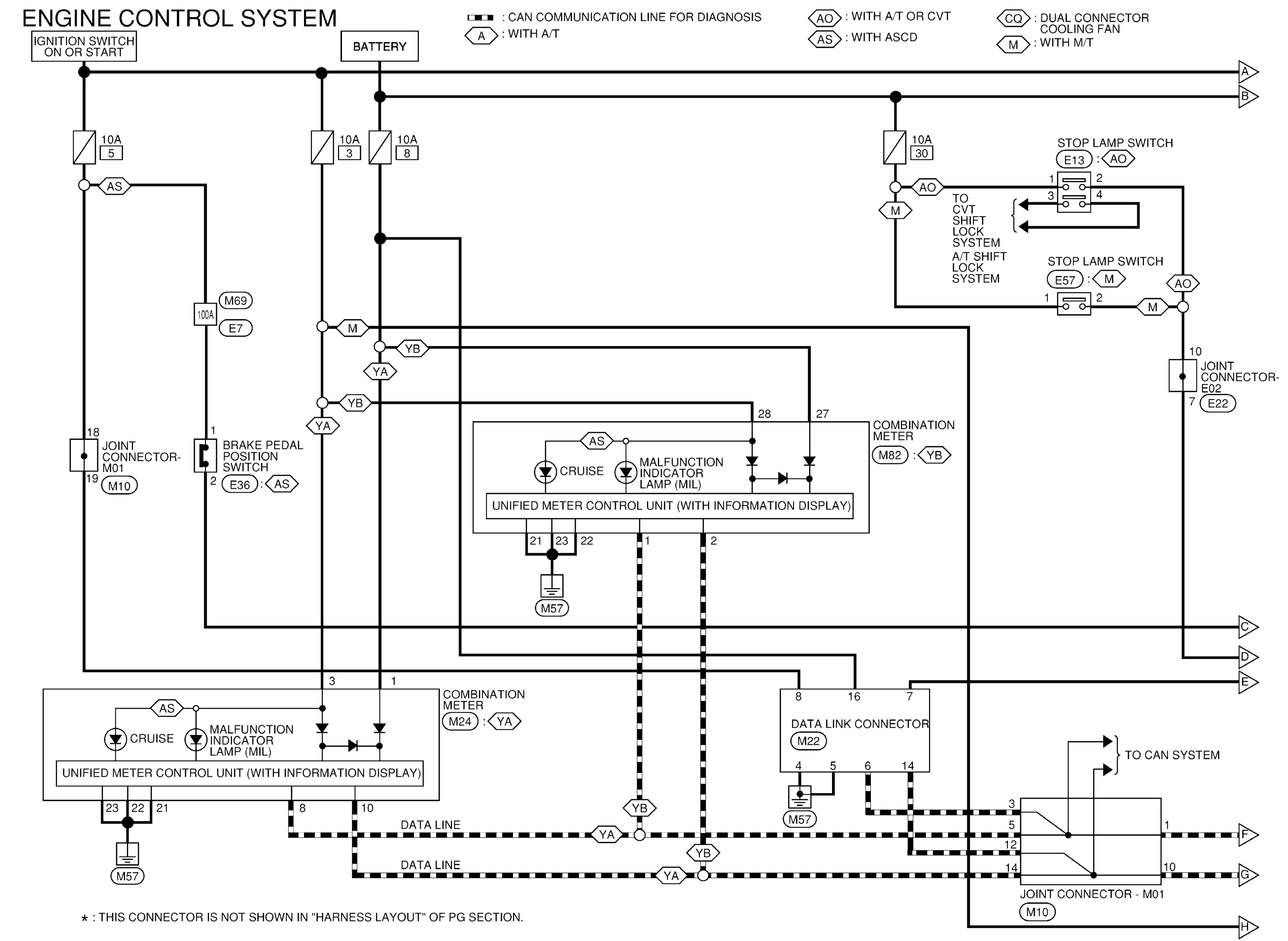

GNSABBWA1818GB-818

Courtesy of NISSAN NORTH AMERICA, INC.

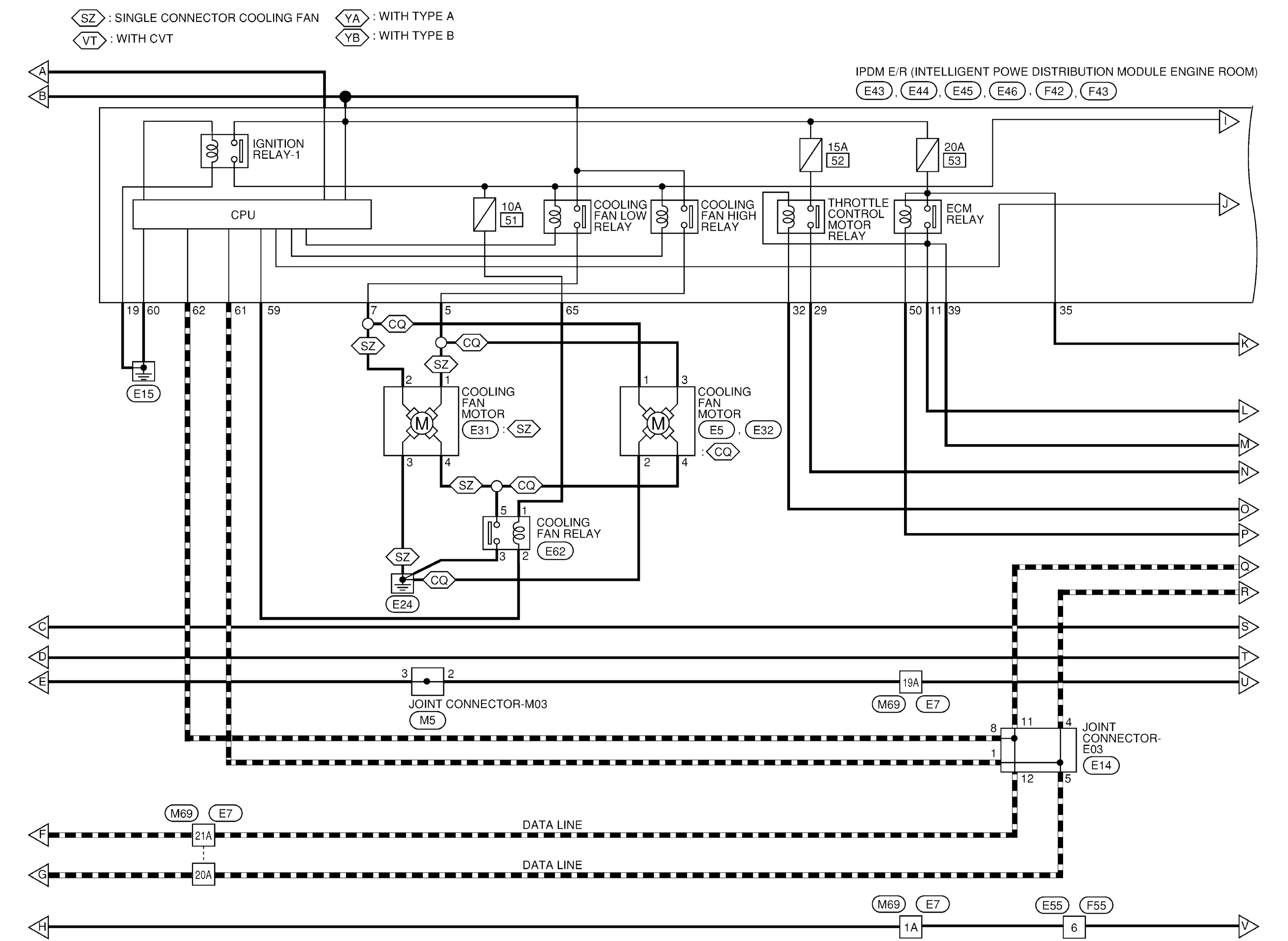

GNSABBWA1819GB-819

Courtesy of NISSAN NORTH AMERICA, INC.

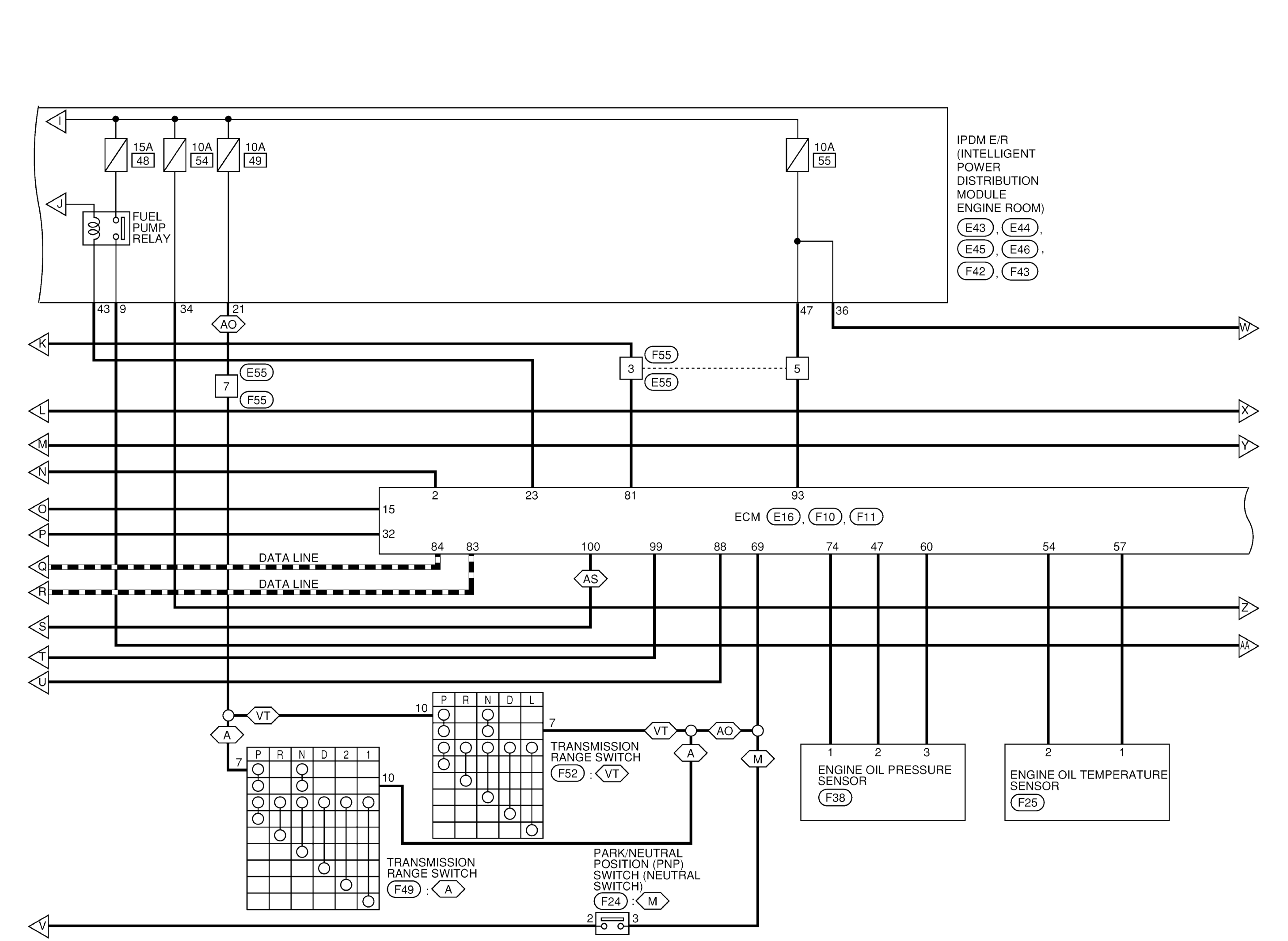

GNSABBWA1820GB-820

Courtesy of NISSAN NORTH AMERICA, INC.

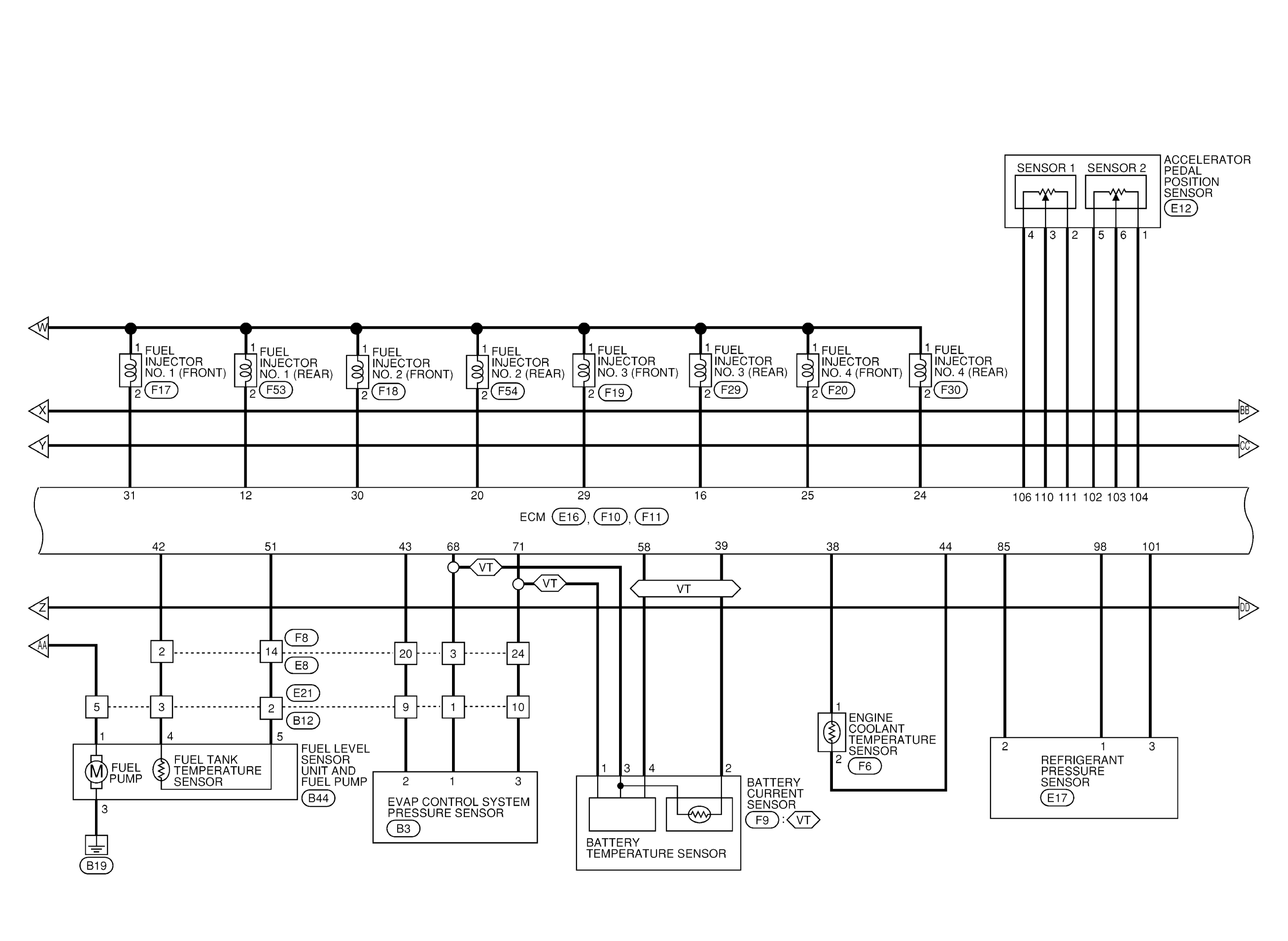

GNSABBWA1821GB-821

Courtesy of NISSAN NORTH AMERICA, INC.

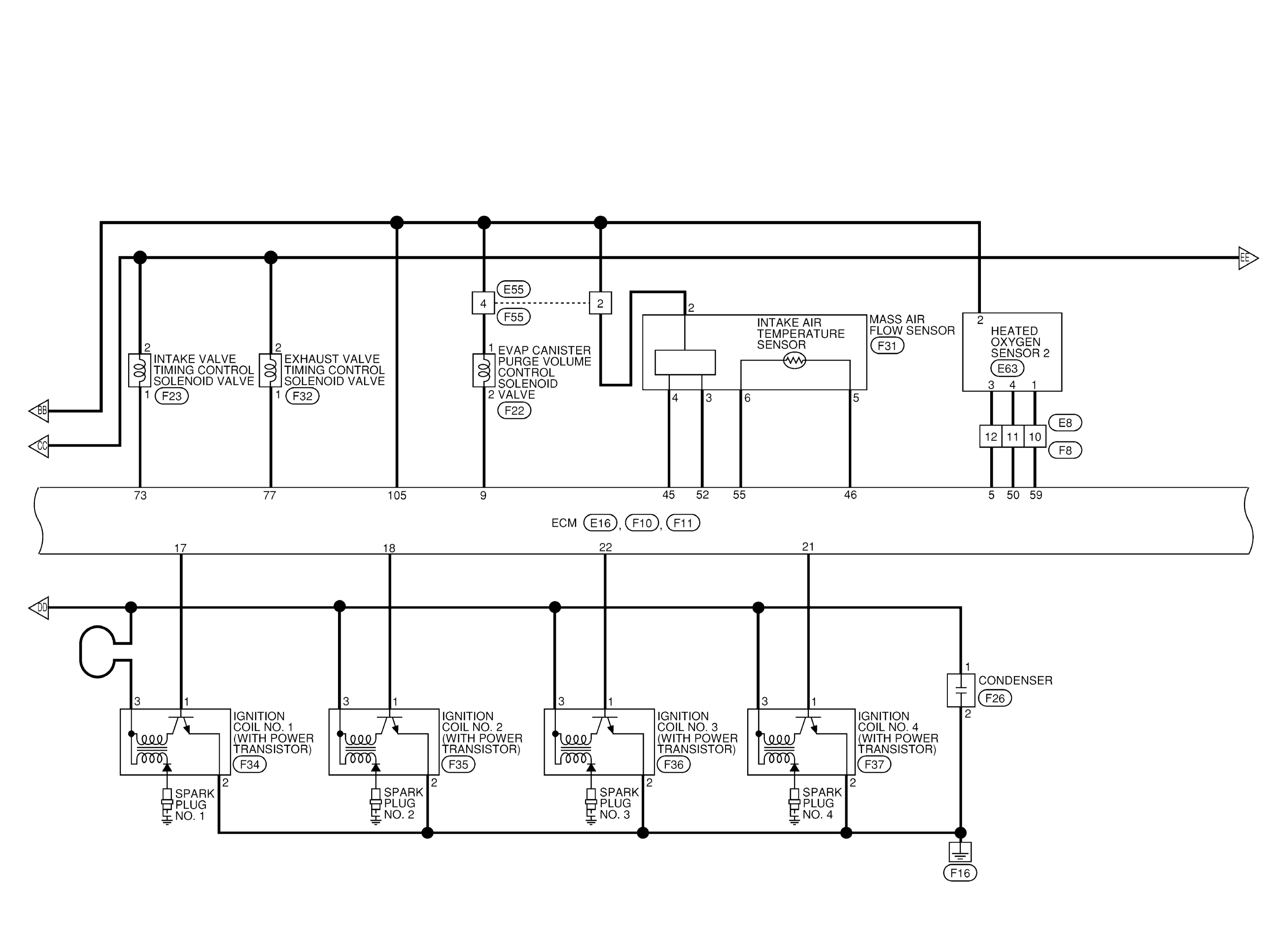

GNSABBWA1822GB-822

Courtesy of NISSAN NORTH AMERICA, INC.

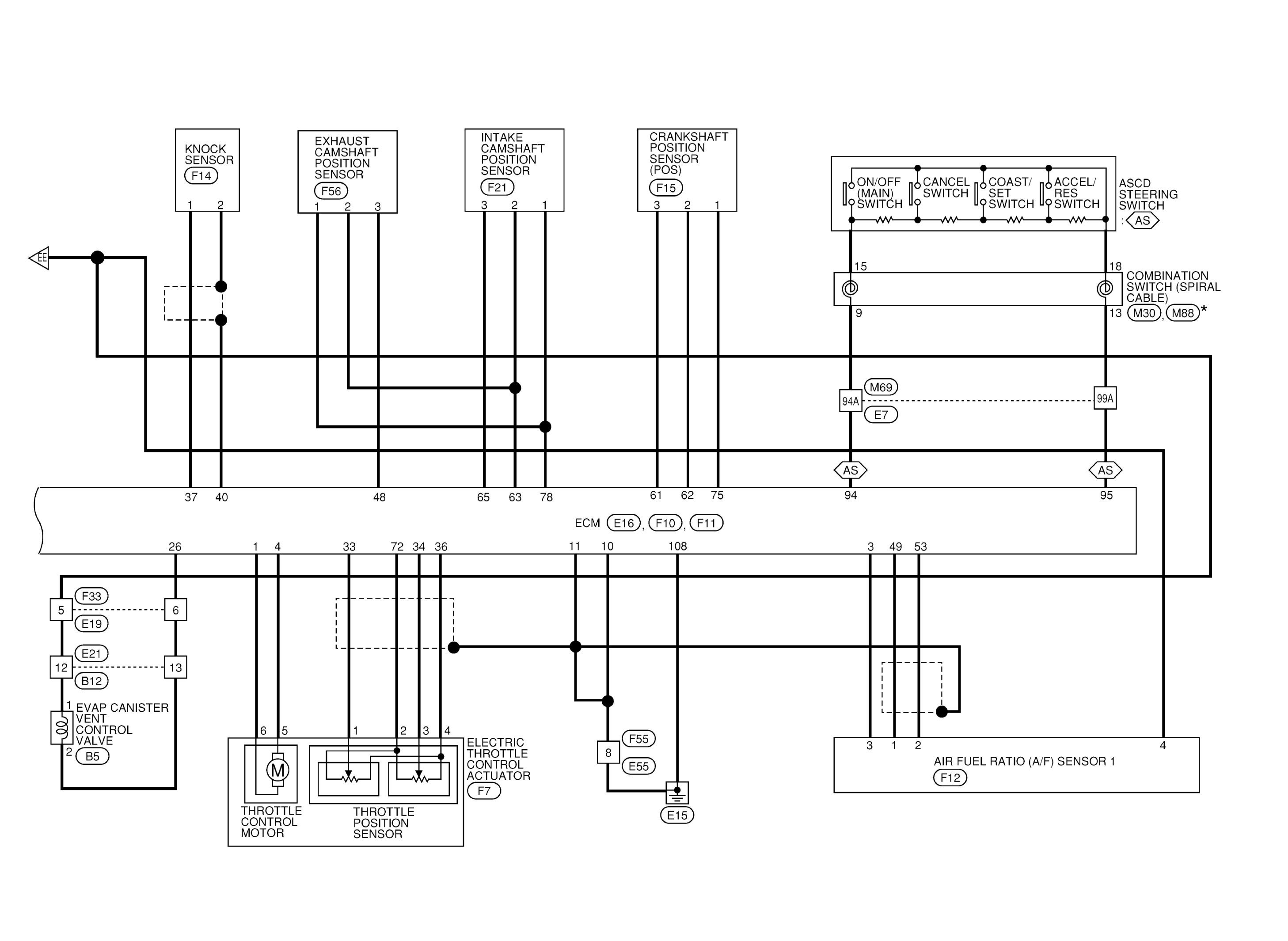

GNSABBWA1823GB-823

Courtesy of NISSAN NORTH AMERICA, INC.

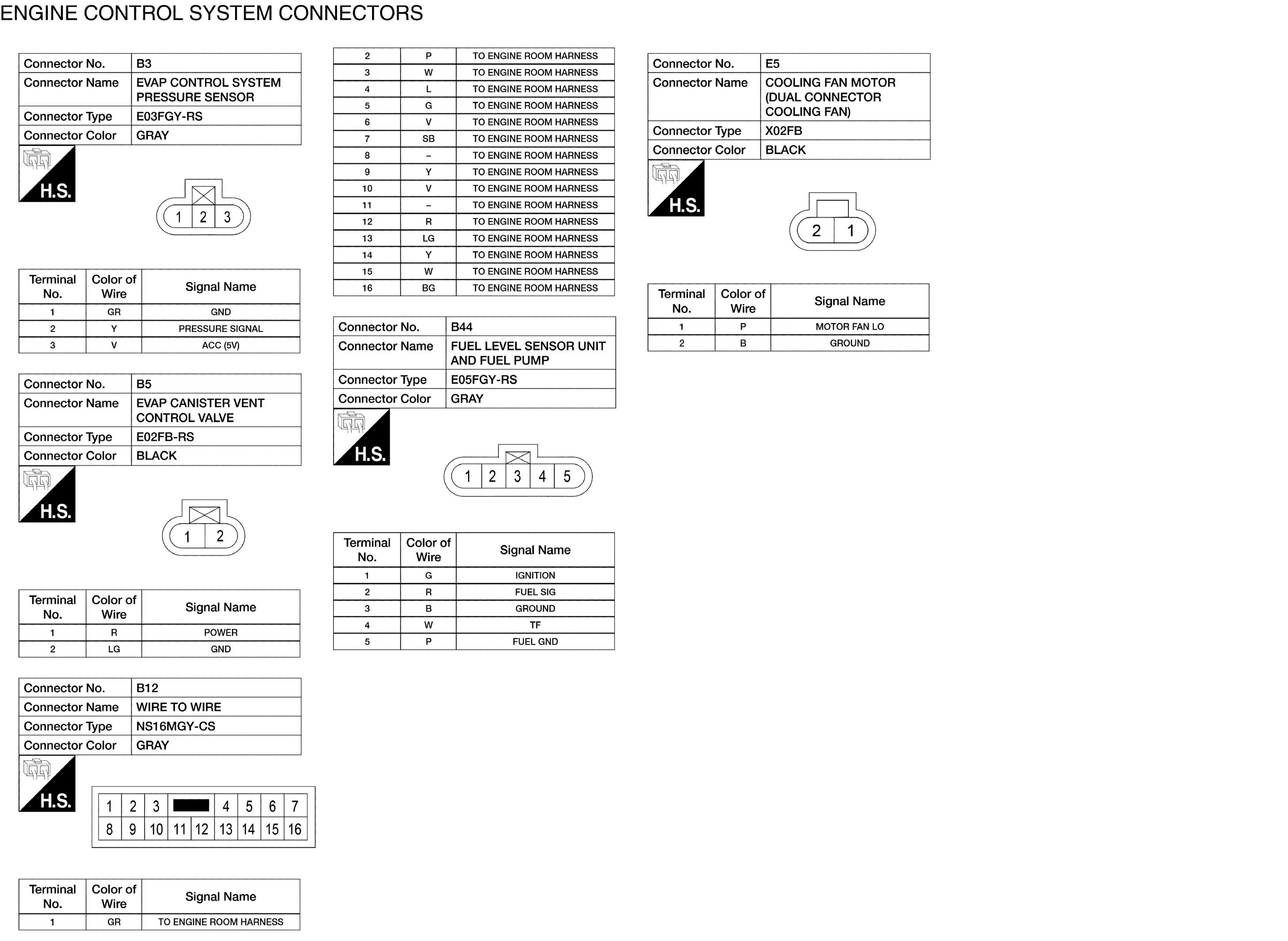

GNSABBIA3591GB-591

Courtesy of NISSAN NORTH AMERICA, INC.

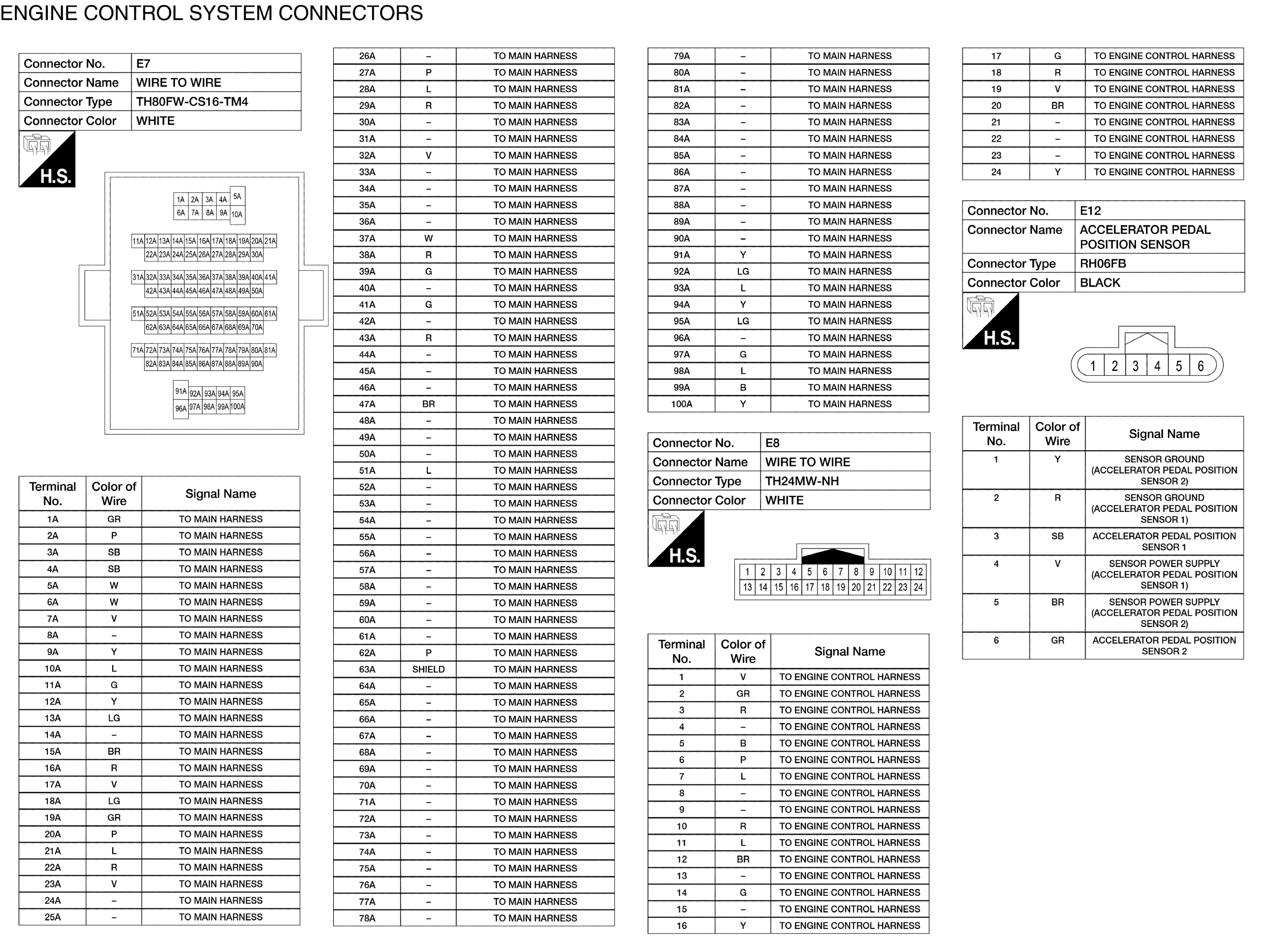

GNSABBIA3592GB-592

Courtesy of NISSAN NORTH AMERICA, INC.

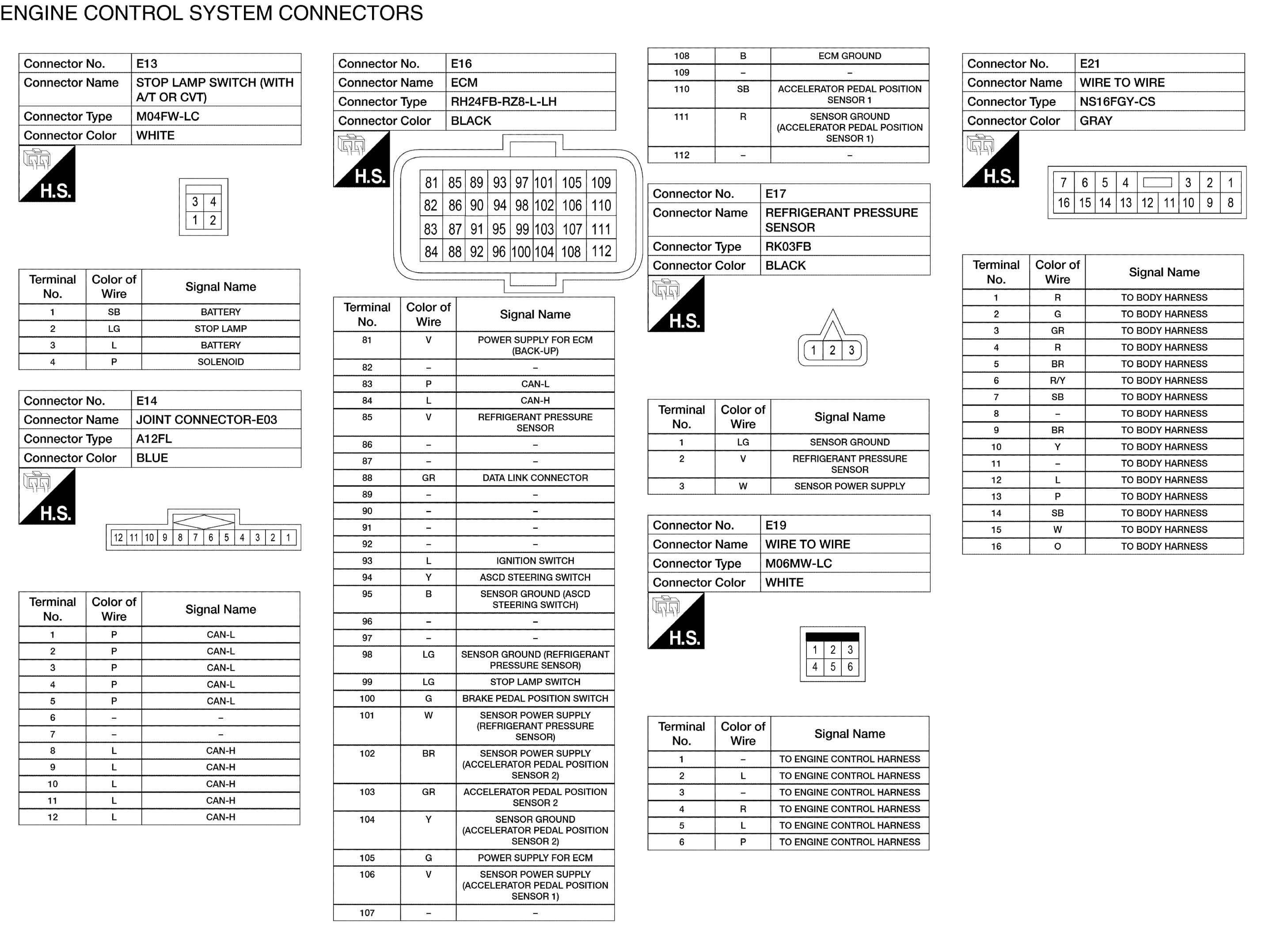

GNSABBIA3593GB-593

Courtesy of NISSAN NORTH AMERICA, INC.

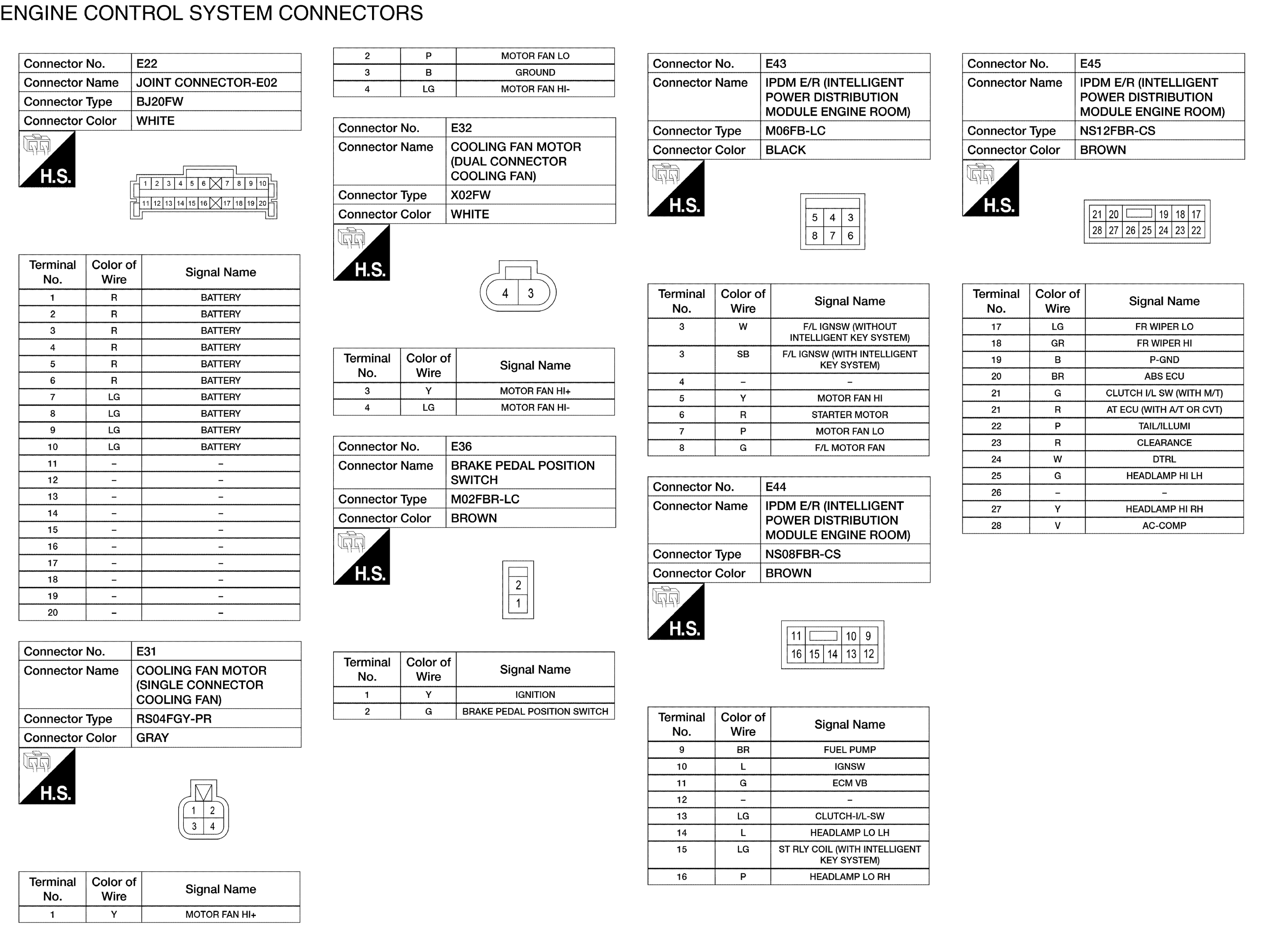

GNSABBIA3594GB-594

Courtesy of NISSAN NORTH AMERICA, INC.

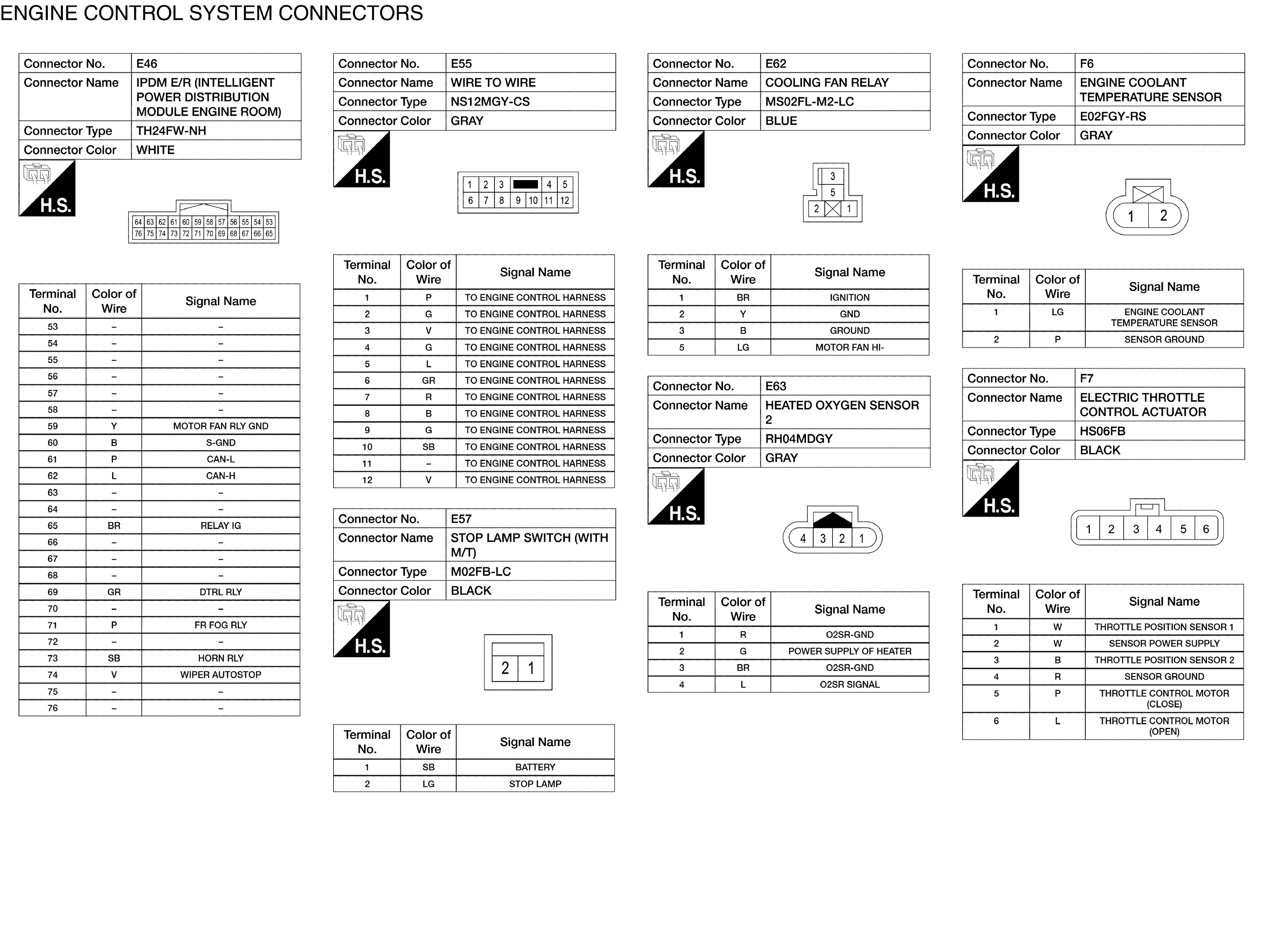

GNSABBIA3595GB-595

Courtesy of NISSAN NORTH AMERICA, INC.

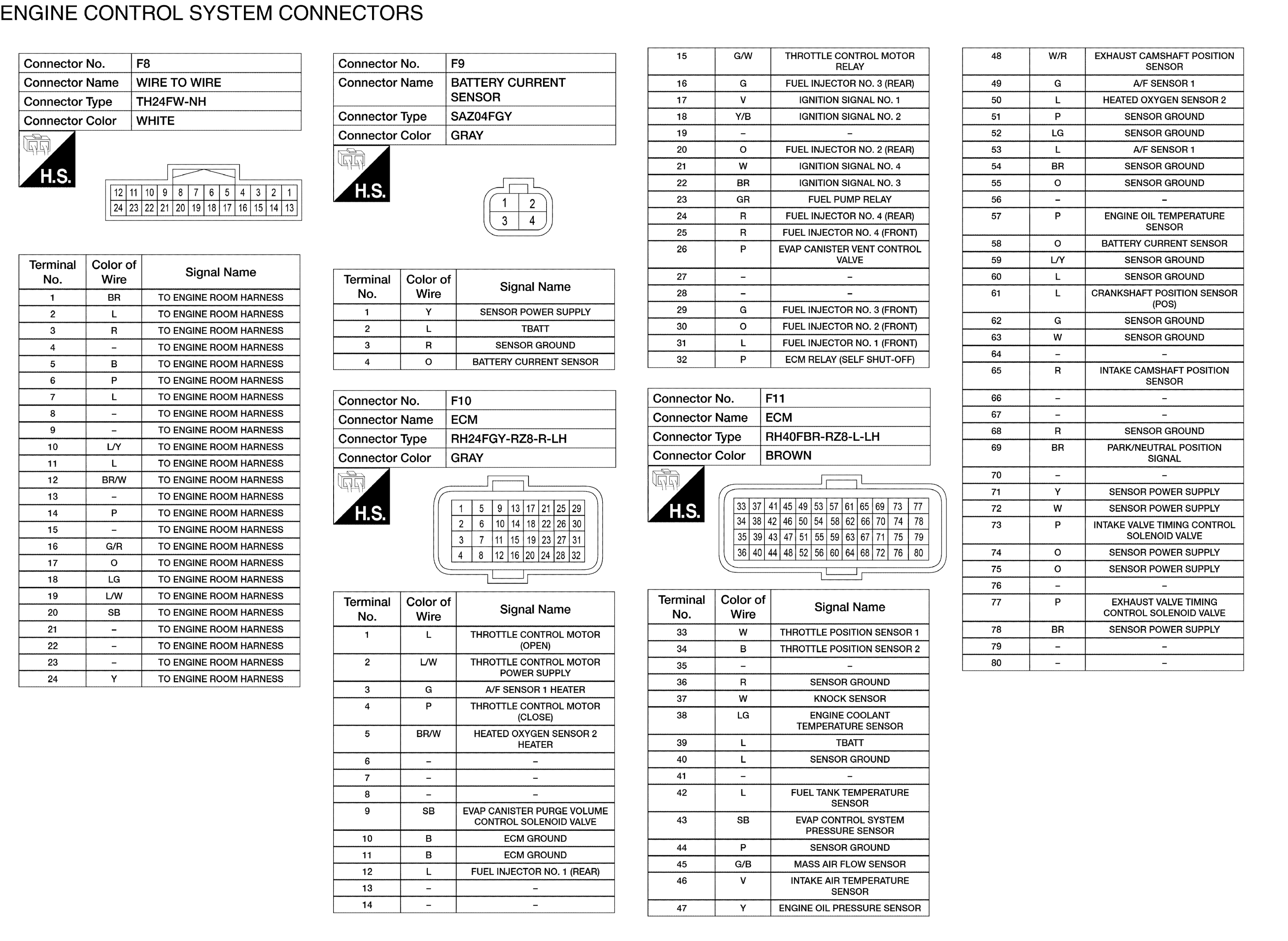

GNSABBIA3596GB-596

Courtesy of NISSAN NORTH AMERICA, INC.

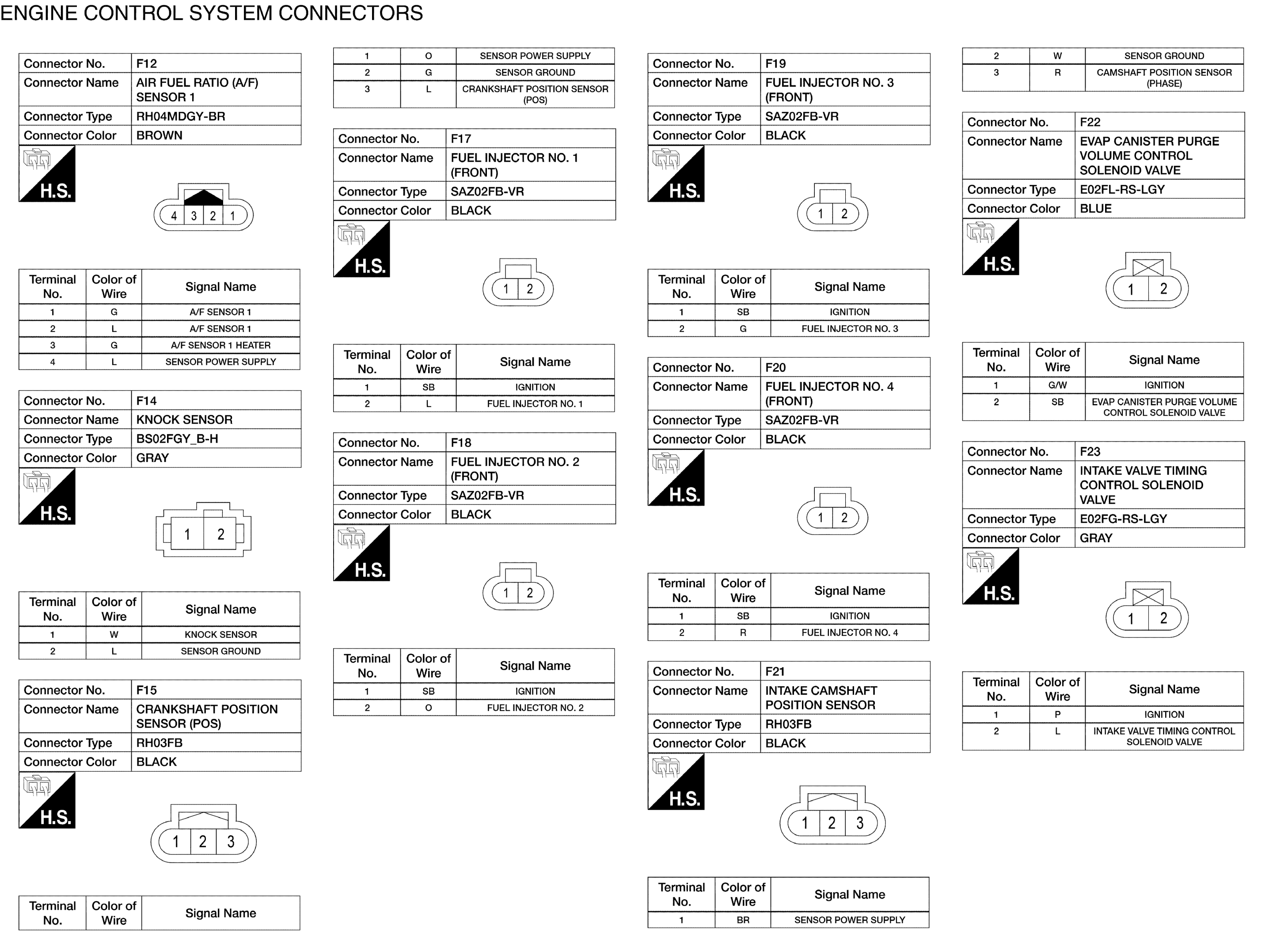

GNSABBIA3597GB-597

Courtesy of NISSAN NORTH AMERICA, INC.

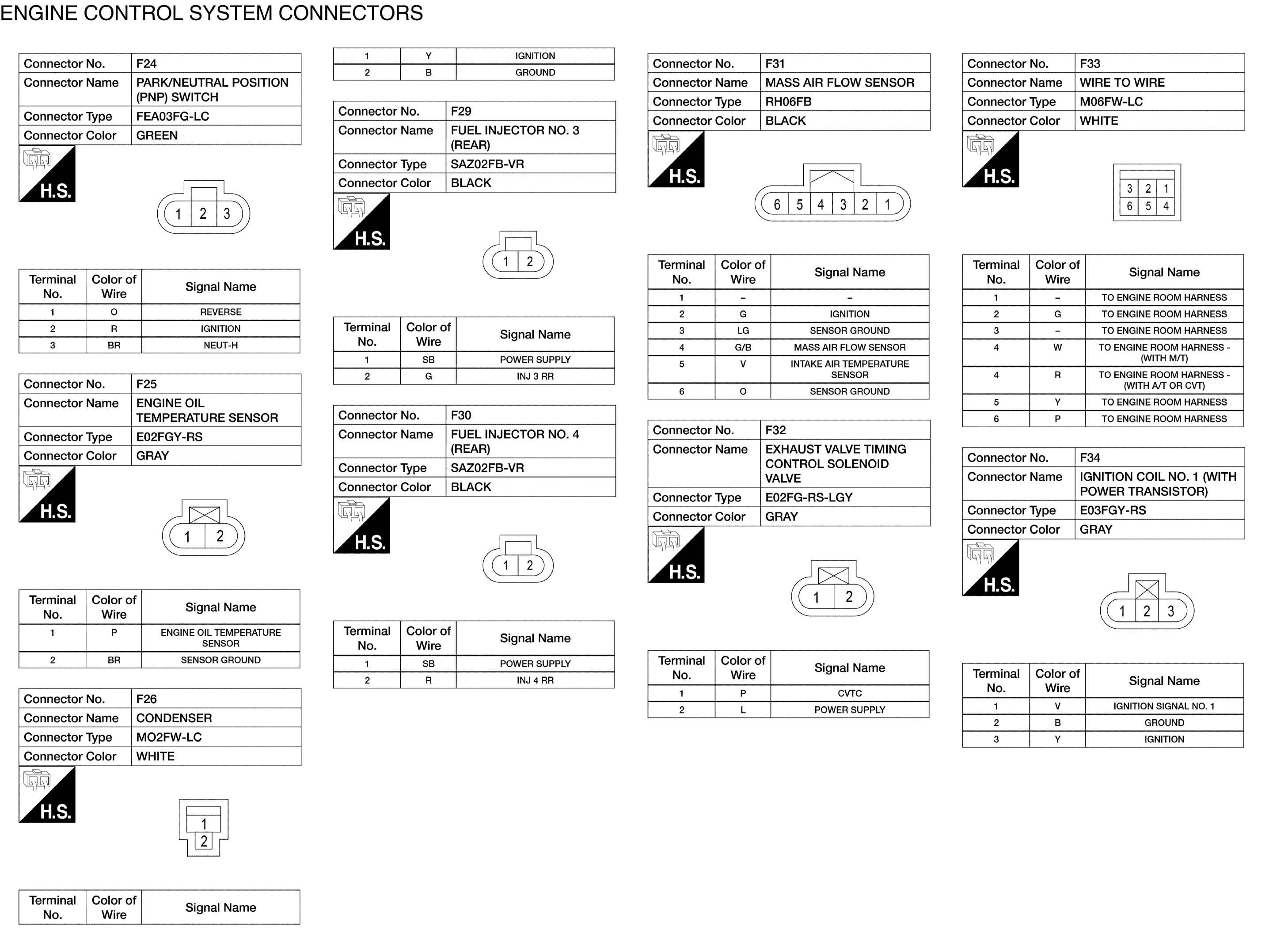

GNSABBIA3598GB-598

Courtesy of NISSAN NORTH AMERICA, INC.

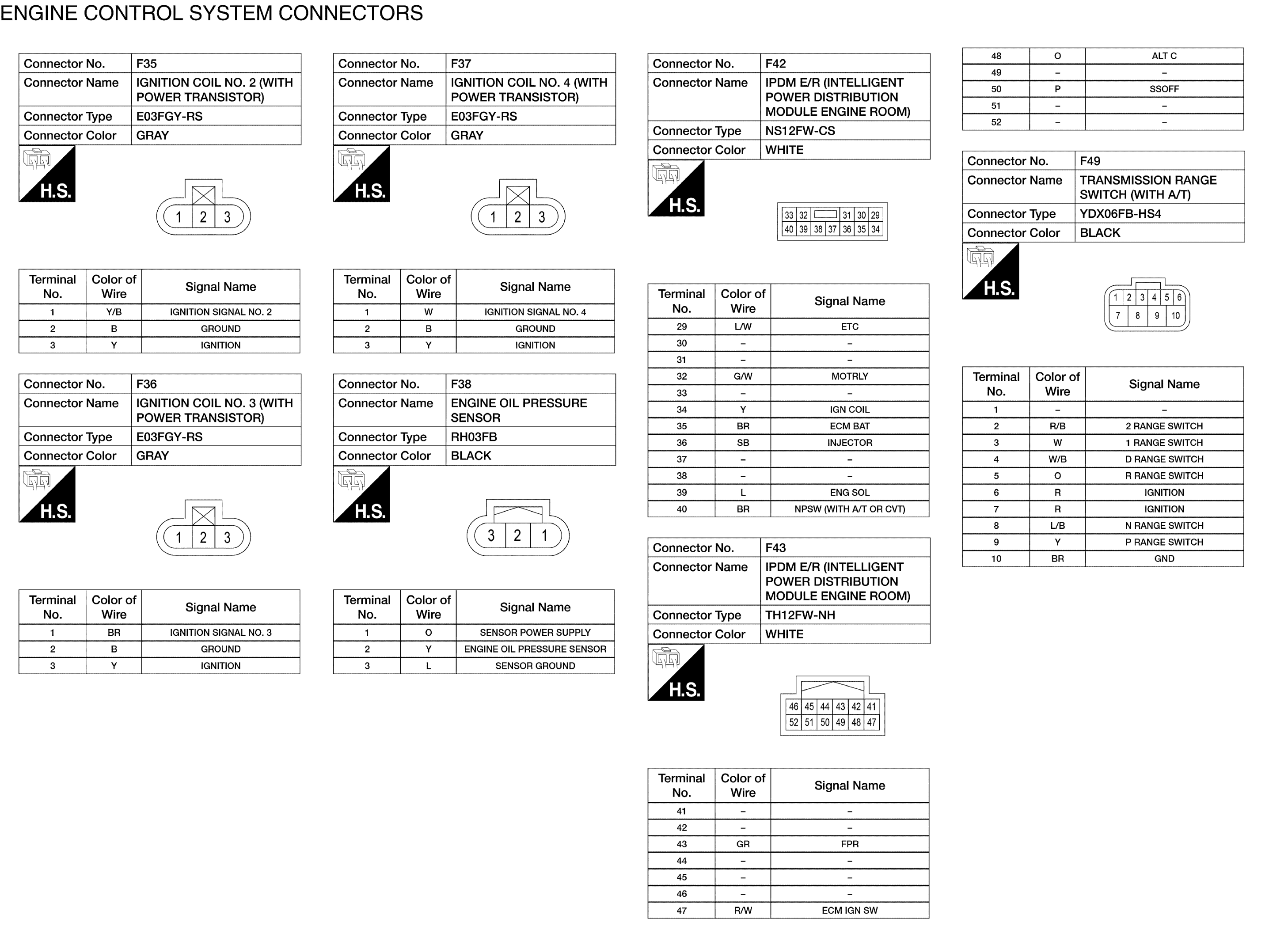

GNSABBIA3599GB-599

Courtesy of NISSAN NORTH AMERICA, INC.

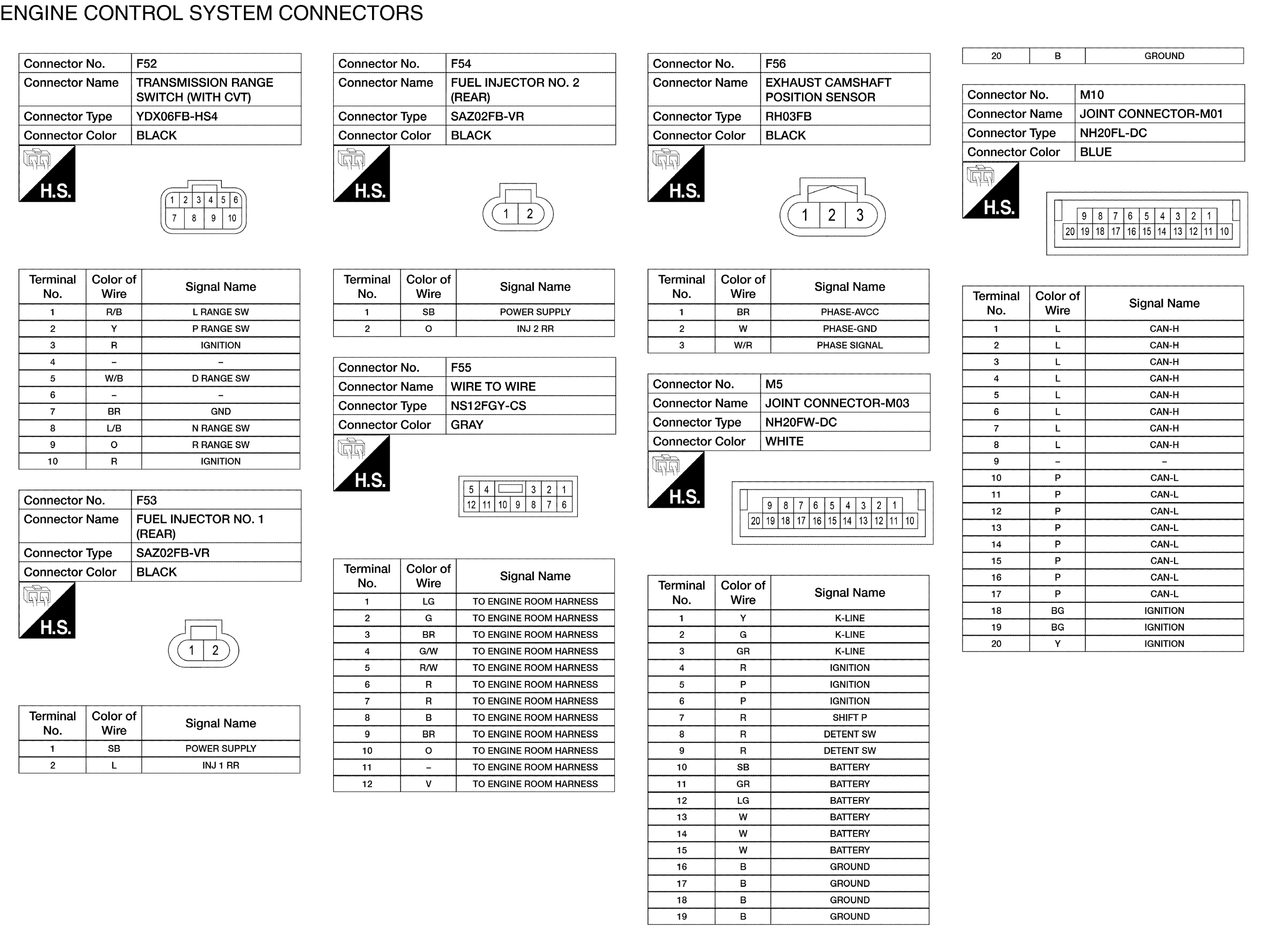

GNSABBIA3600GB-600

Courtesy of NISSAN NORTH AMERICA, INC.

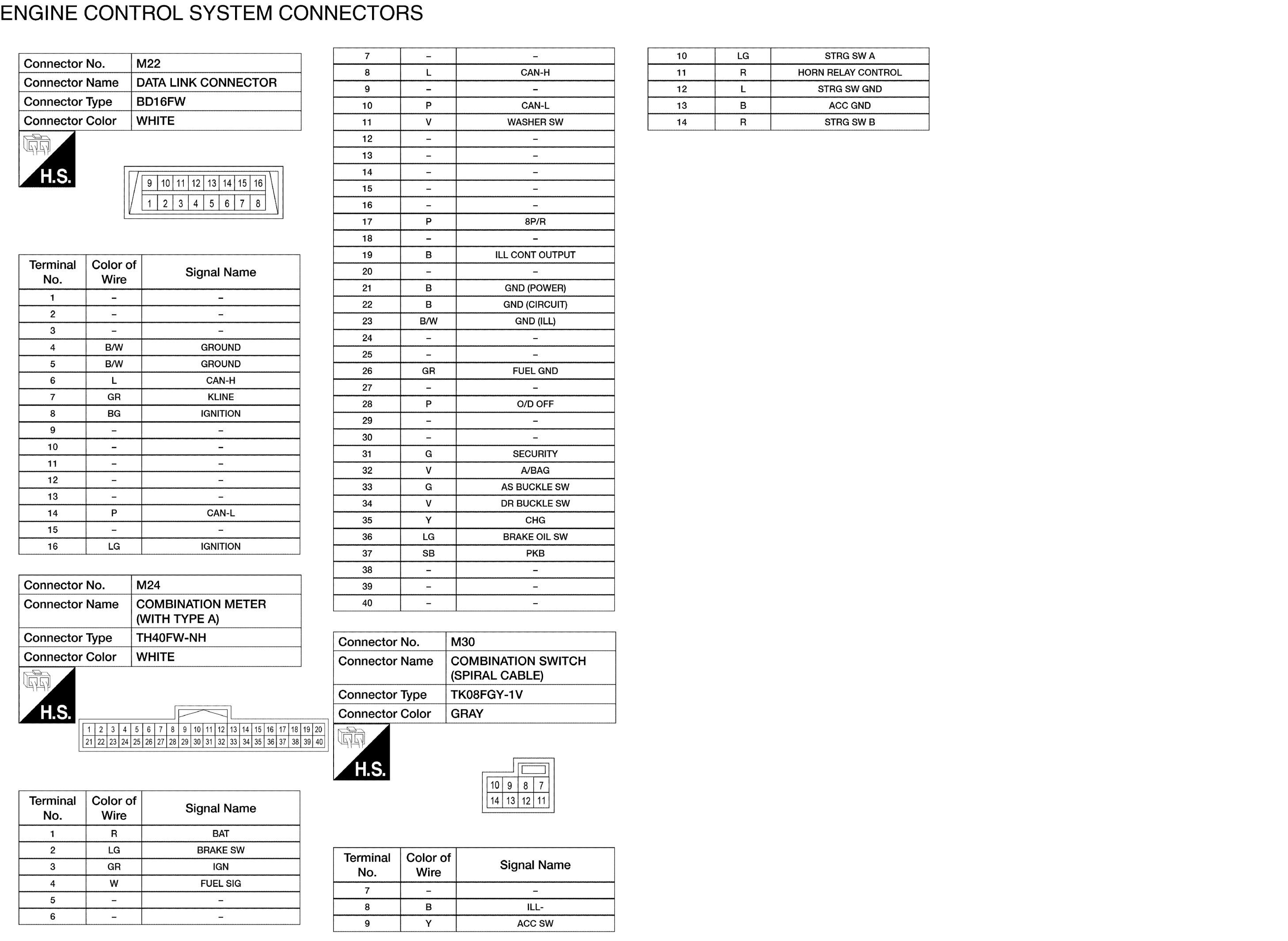

GNSABBIA3601GB-601

Courtesy of NISSAN NORTH AMERICA, INC.

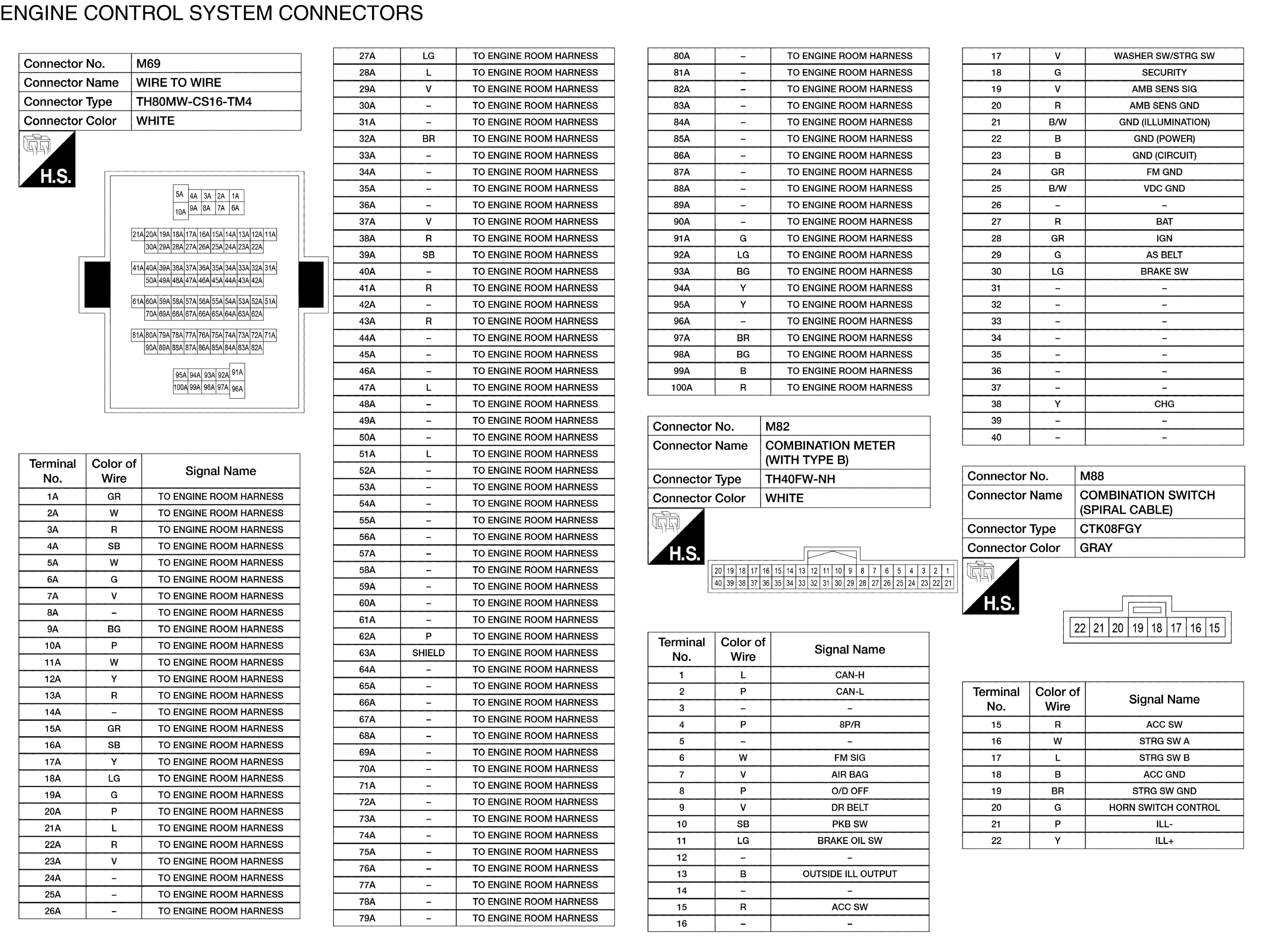

GNSABBIA3626GB-626

Courtesy of NISSAN NORTH AMERICA, INC.
