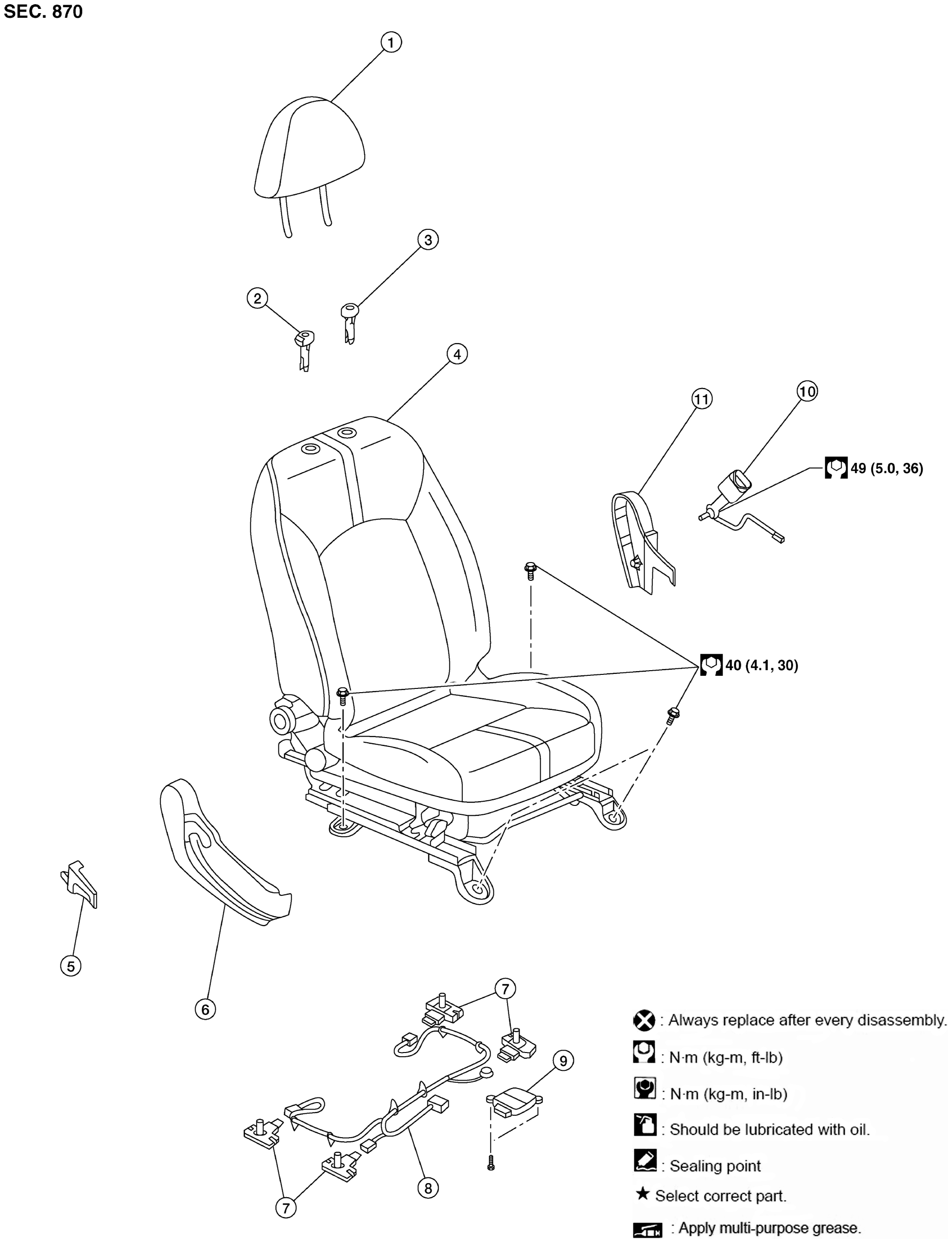

Exploded View With Torque Specifications
| 1. | Headrest | 2. | Headrest holder (free) | 3. | Headrest holder (locked) |
| 4. | Seat assembly | 5. | Recline lever | 6. | Seat cushion outer finisher (RH) |
| 7. | Occupant classification system sensors | 8. | Occupant classification system harness | 9. | Occupant classification system control unit |
| 10. | Seat belt buckle | 11. | Seat cushion outer finisher (LH) |
