Removal And Installation: Removal

Remove power window and door lock/unlock switch (RH) finisher door handle pull escutcheon.

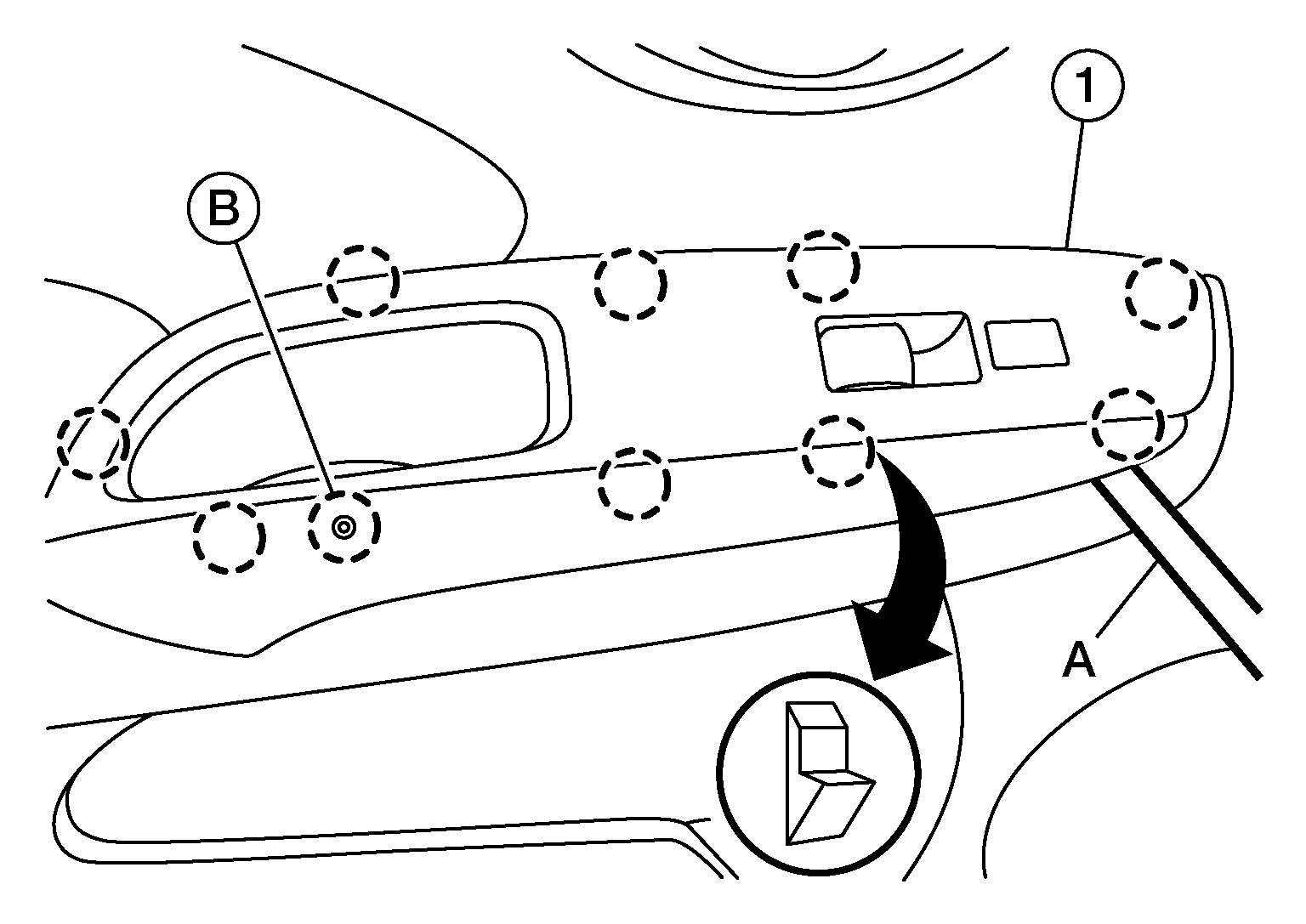

Remove screw (B) from power window and door lock/unlock switch (RH) finisher.

Courtesy of NISSAN NORTH AMERICA, INC.
Remove power window and door lock/unlock switch (RH) finisher (1) using a suitable tool (A).
: Pawl
Disconnect the harness connector from the power window and door lock/unlock switch (RH).

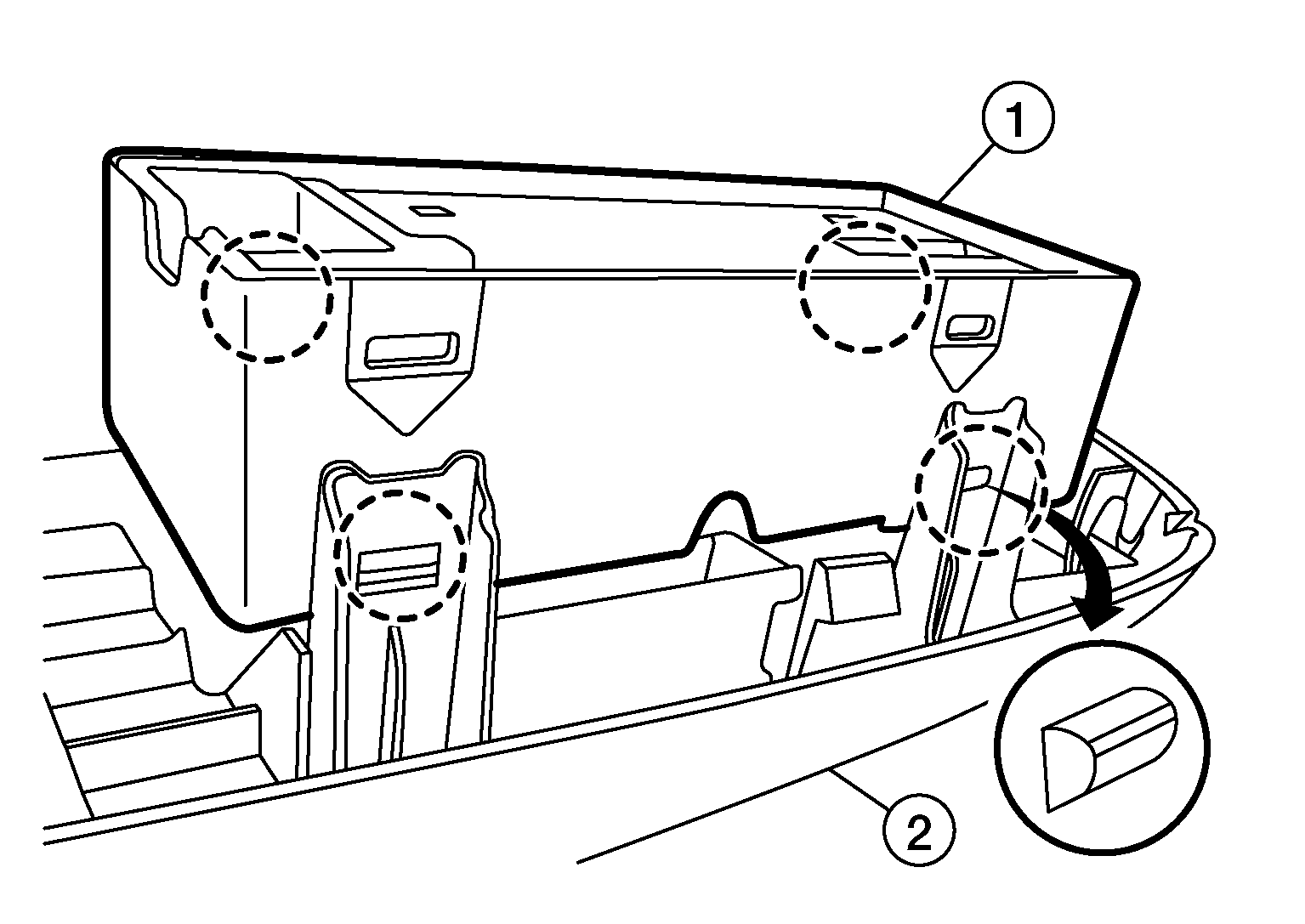

Release pawls and remove power window and door lock/unlock switch (1) from power window and door lock/unlock switch (RH) finisher (2) using a suitable tool.

Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl

CAUTION:
Do not bend back the pawls on the switch finisher too far or damage may occur.
