Removal And Installation: Removal

  1. Remove NATS antenna amp. Refer to REMOVAL AND INSTALLATION .

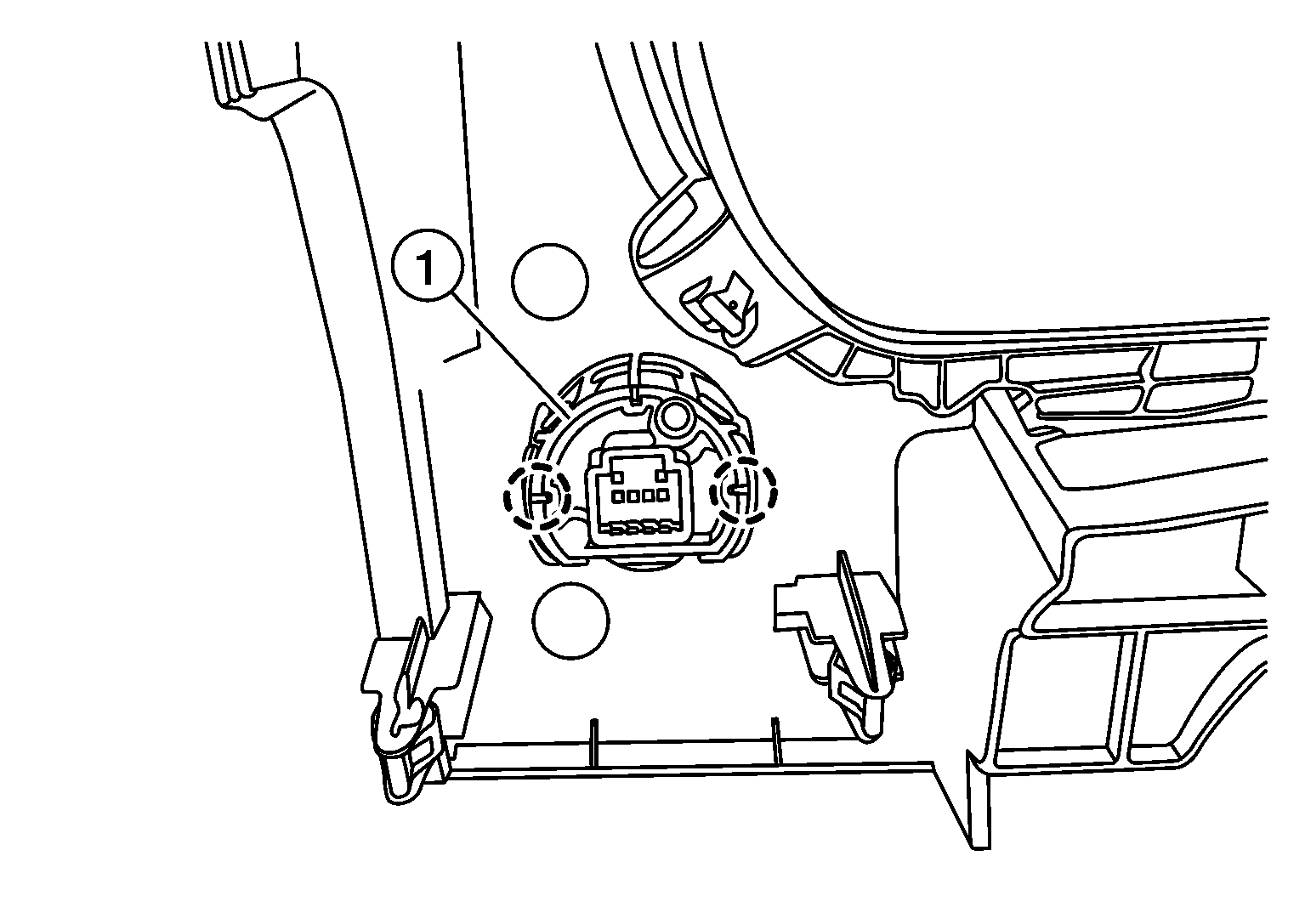

  2. Release pawls and remove the push-button ignition switch (1).
    GNSALKIA3180ZZ-180Courtesy of NISSAN NORTH AMERICA, INC.

    MARU-H : Pawl
