Horn
›

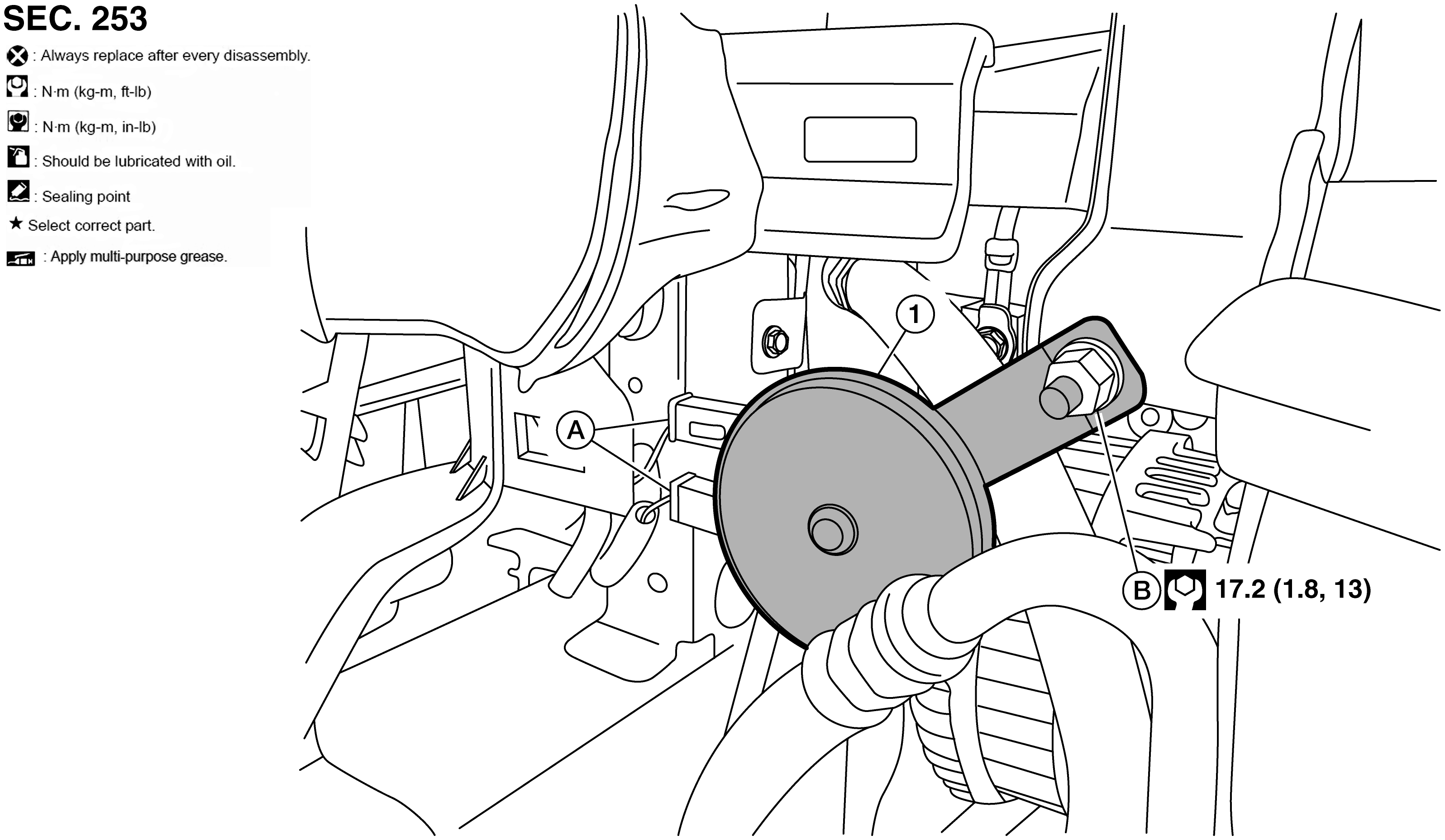

Exploded View With Torque Specifications
Exploded View With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Horn
A.
Connector
B.
Nut
Courtesy of NISSAN NORTH AMERICA, INC.
