WIRE TO WIRE Connector End View (D201)
Connector Color:
WHITE
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
BR |
- |
| 2 |
Y |
- |
| 3 |
L |
- |
| 4 |
R |
- |
| 5 |
R |
- |
| 6 |
W |
- |
| 7 |
G |
- |
| 8 |
SB |
- |
| 9 |
- |
- |
| 10 |
- |
- |

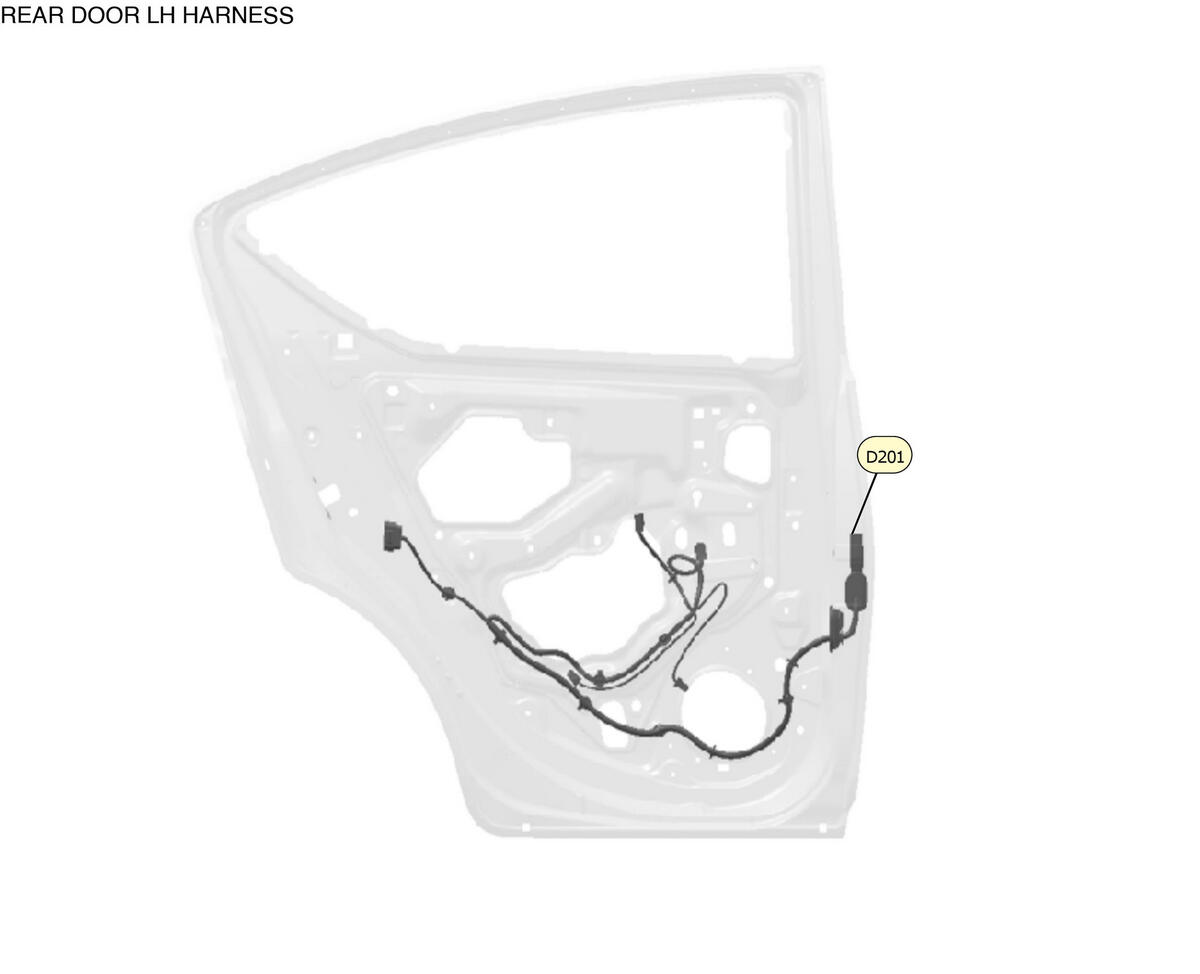

Harness Layout
Courtesy of NISSAN NORTH AMERICA, INC.
Connector Types:
NS10MW-CS
