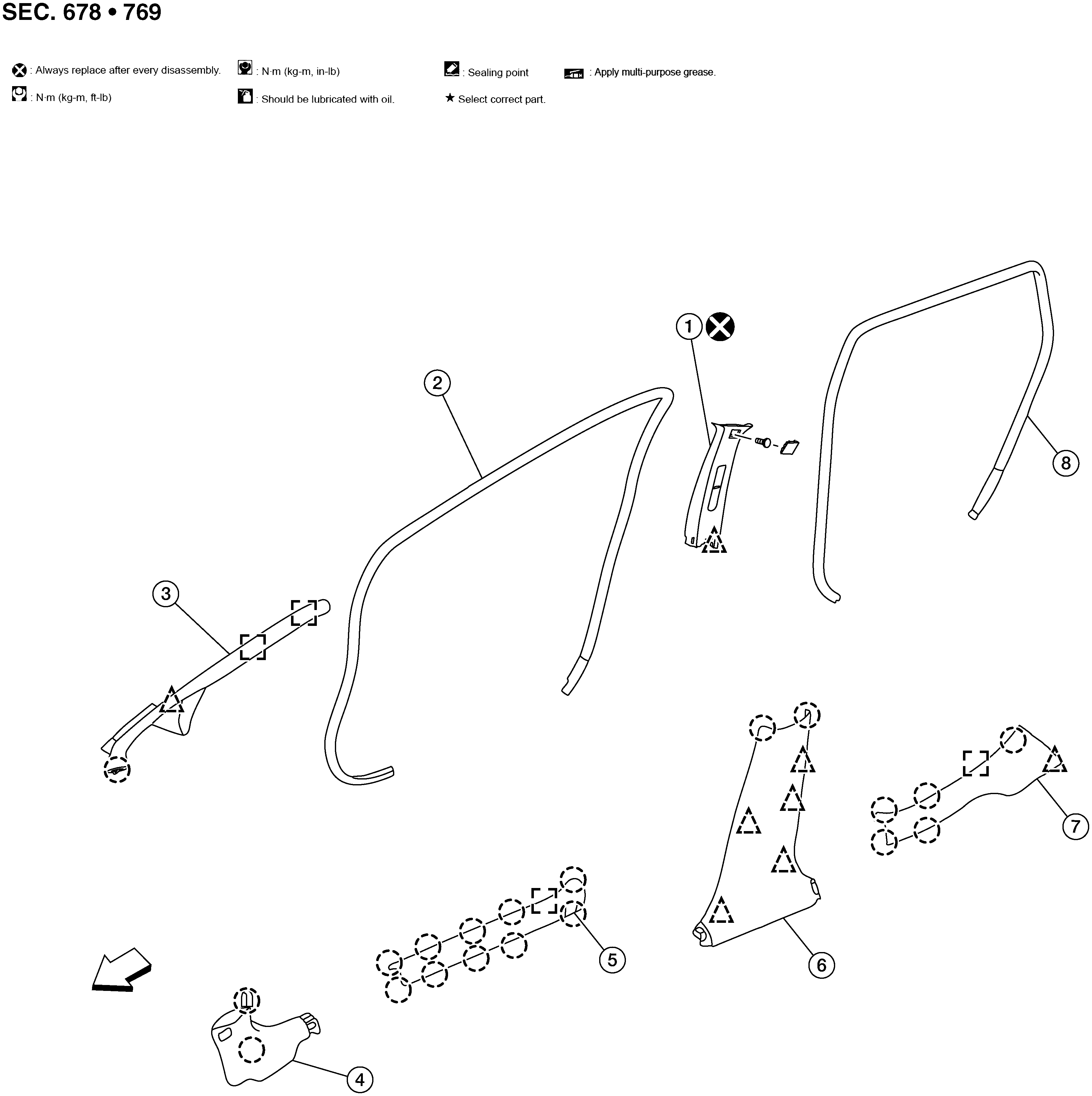

Exploded View With Torque Specifications

GNSAWJIA2358ZZ-358Courtesy of NISSAN NORTH AMERICA, INC.
1. Center pillar upper finisher (RH) 2. Front body side welt (RH) 3. Front pillar finisher (RH)
4. Dash side finisher (RH) 5. Front kicking plate (RH) 6. Center pillar lower finisher (RH)
7. Rear kicking plate (RH) 8. Rear body side welt (RH) ARROW Front
SANKAKU-H Clip MARU-H Pawl SHIKAKU-H Metal clip
