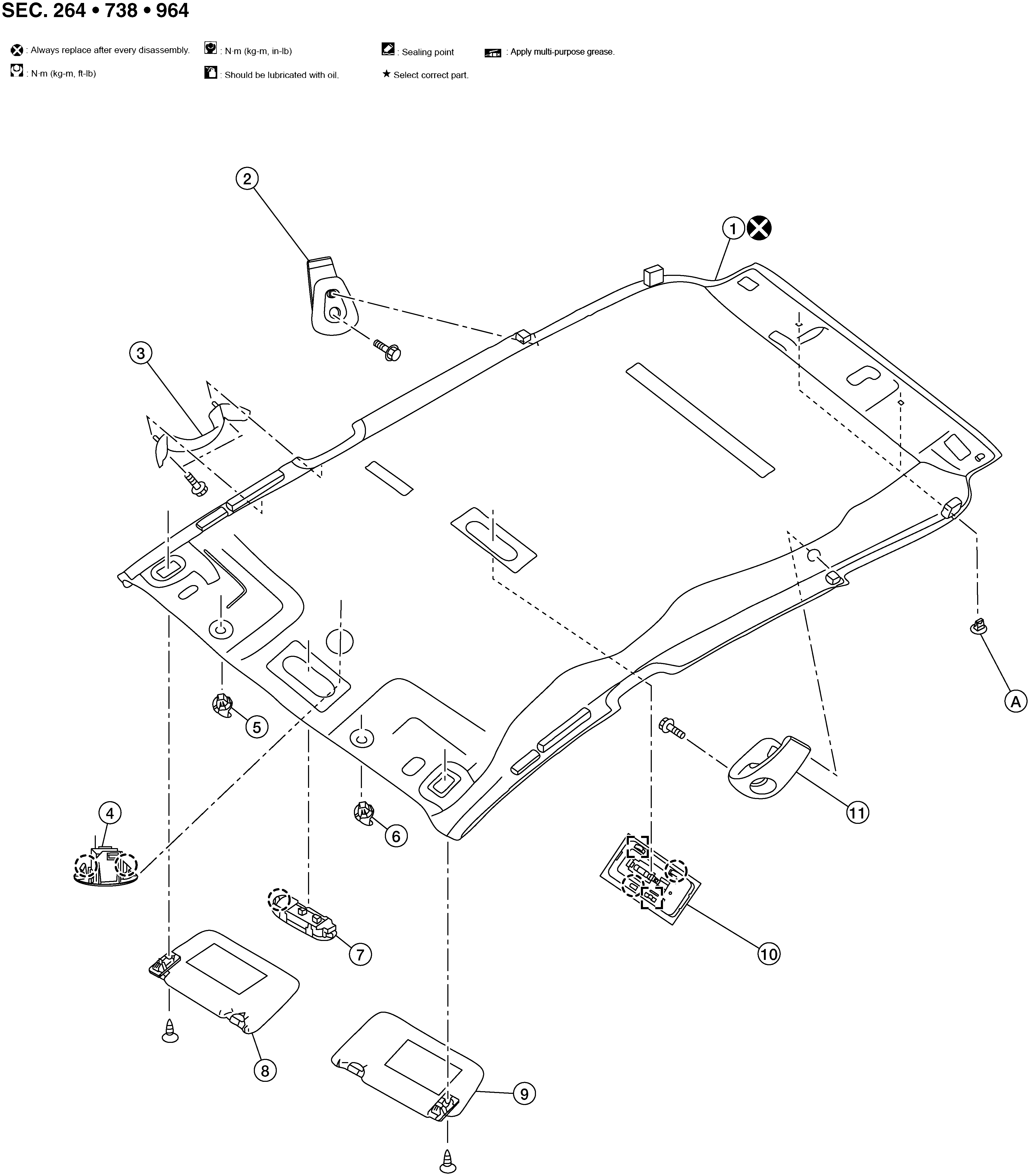

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Headlining	2.	Coat hanger (RH)	3.	Front assist grip (RH)
4.	Microphone (if equipped)	5.	Sun visor holder (RH)	6.	Sun visor holder (LH)
7.	Map lamp	8.	Sun visor (RH)	9.	Sun visor (LH)
10.	Interior room lamp	11.	Coat hanger (LH)	A.	Headlining clip
	Pawl		Metal clip
