Removal And Installation: Removal

Remove main power window and door lock/unlock switch finisher door handle pull escutcheon.

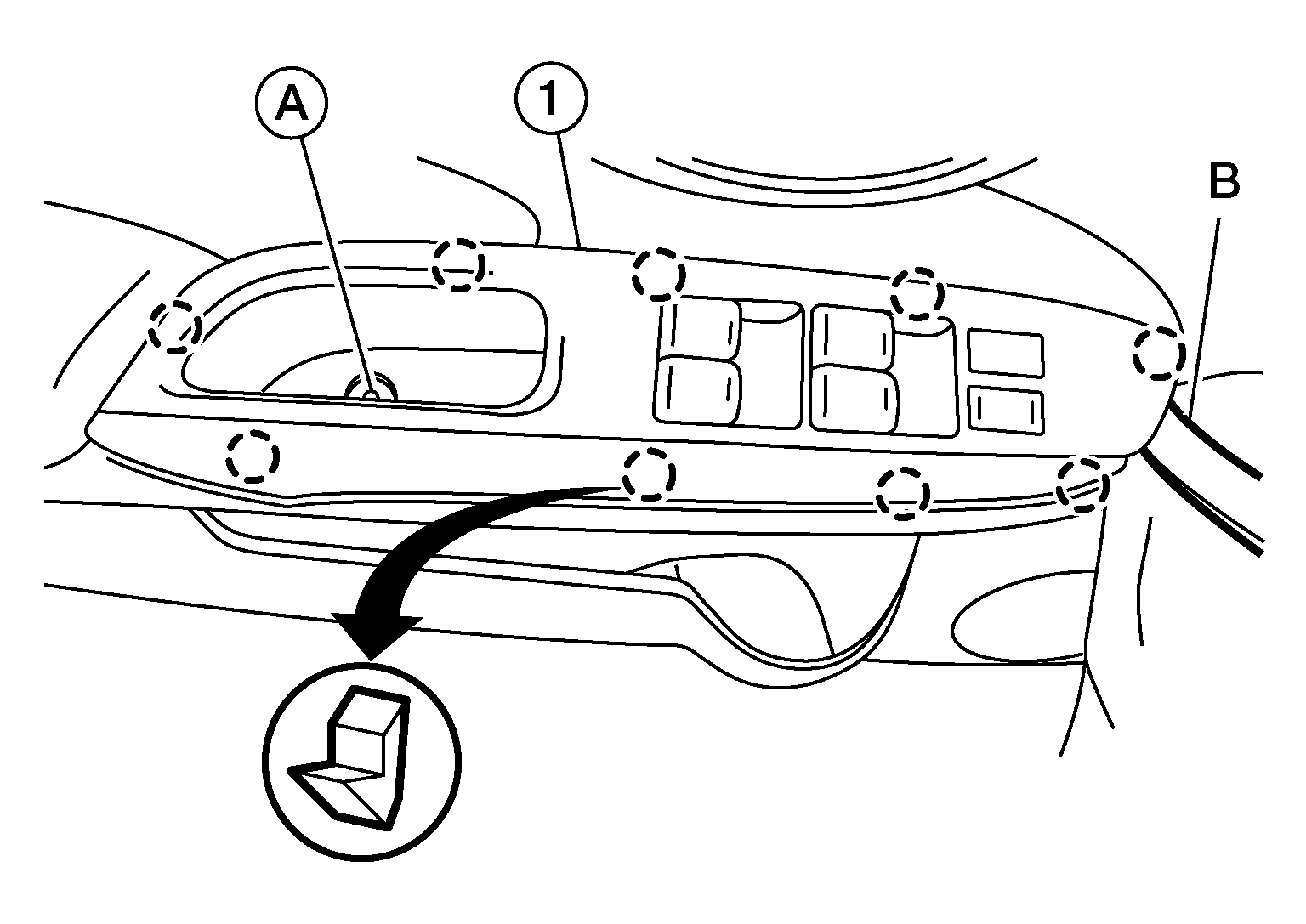

Remove screw (A) from main power window and door lock/unlock switch finisher.

Courtesy of NISSAN NORTH AMERICA, INC.
Remove main power window and door lock/unlock switch finisher (1) using a suitable tool (B).
: Pawl
Disconnect the harness connectors from the main power window and door lock/unlock switch.

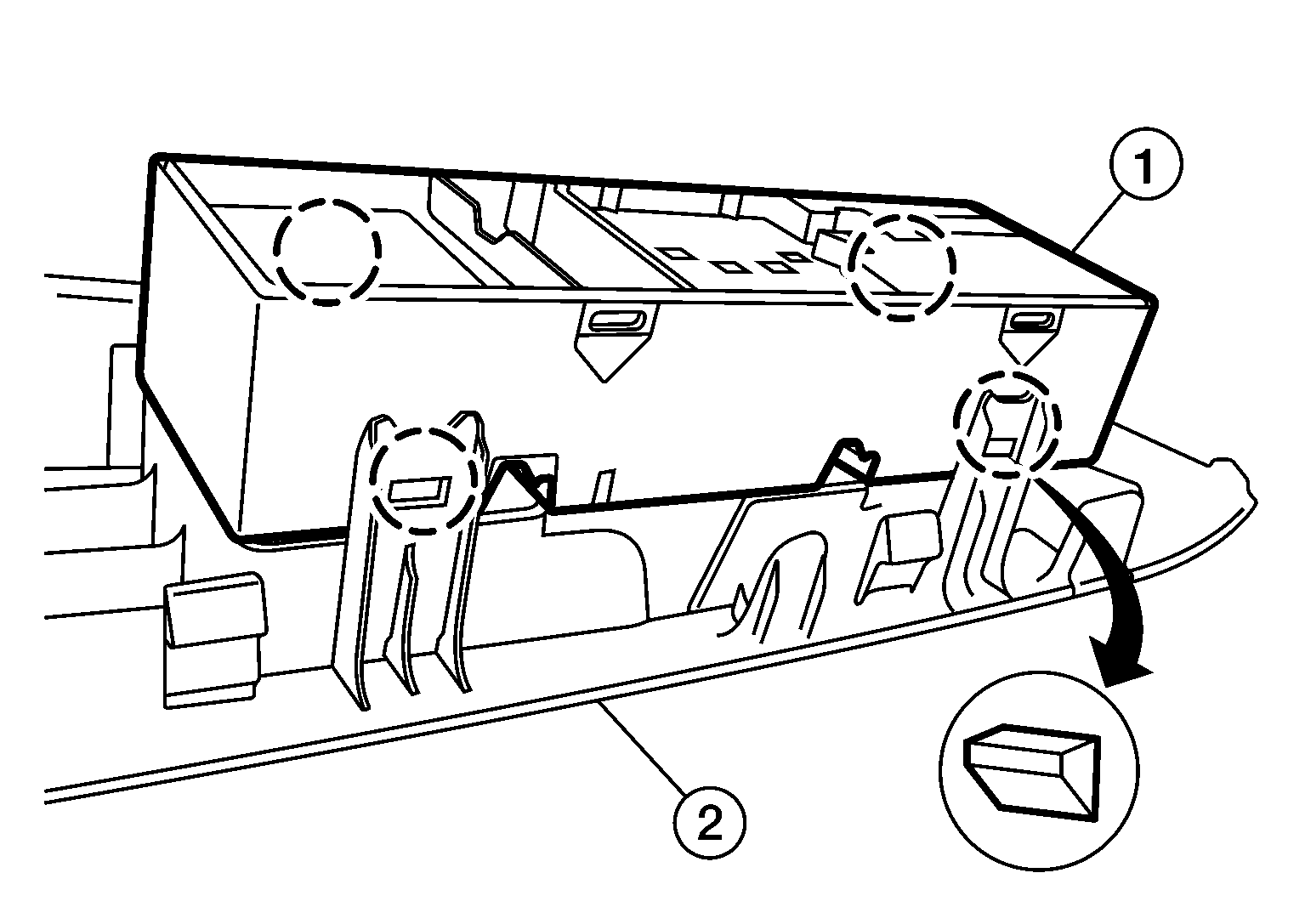

Release pawls and remove main power window and door lock/unlock switch (1) from main power window and door lock/unlock switch finisher assembly (2) using a suitable tool.

Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl

CAUTION:
Do not bend back the pawls on the switch finisher too far or damage may occur.
