Parking Brake Control
›
Exploded View
Exploded View

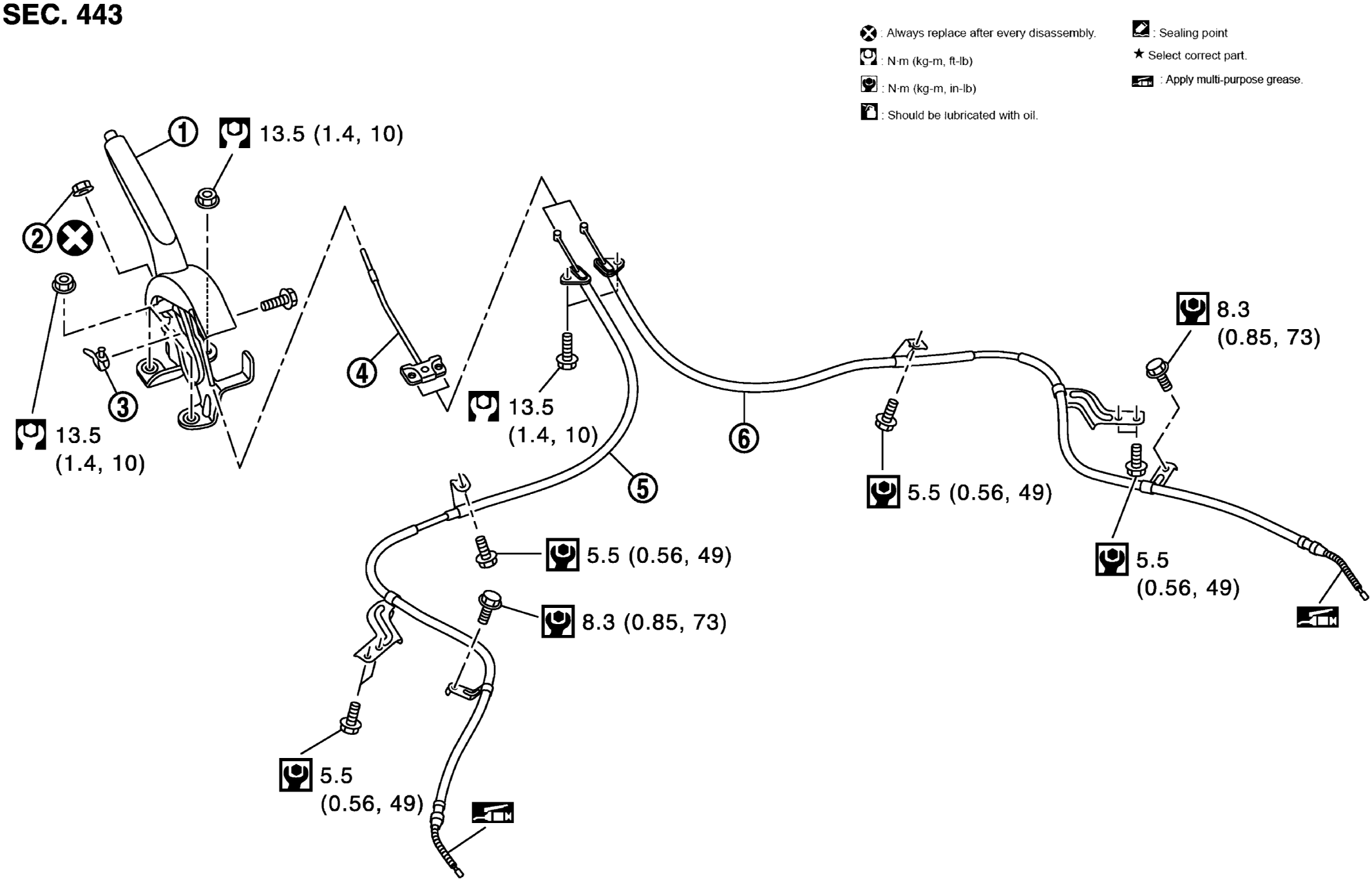

Fig 1: Parking Brake Control With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Parking brake control
2.
Adjusting nut
3.
Parking brake switch
4.
Parking brake front cable
5.
Parking brake rear cable (LH)
6.
Parking brake rear cable (RH)
