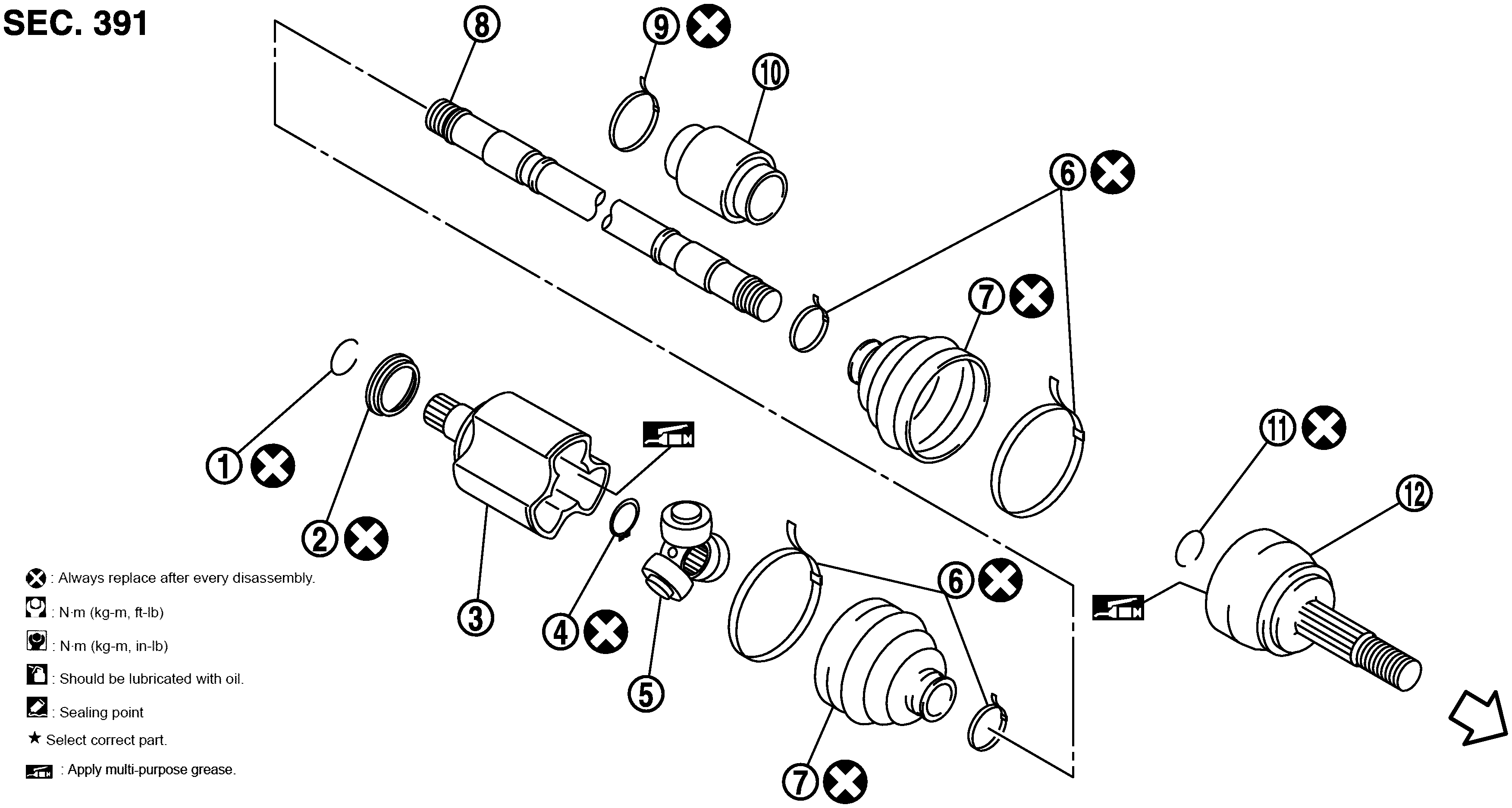

Exploded View
(LH)
| 1. | Circular clip | 2. | Dust shield | 3. | Slide joint housing |
| 4. | Snap ring | 5. | Spider assembly | 6. | Boot band |
| 7. | Boot | 8. | Shaft | 9. | Damper band |
| 10. | Dynamic damper | 11. | Circular clip | 12. | Joint sub-assembly |
| Wheel side |
(RH)
| 1. | Circular clip | 2. | Dust shield | 3. | Slide joint housing |
| 4. | Snap ring | 5. | Spider assembly | 6. | Boot band |
| 7. | Boot | 8. | Shaft | 9. | Damper Band |
| 10. | Dynamic damper | 11. | Circular clip | 12. | Joint sub - assembly |
| Wheel side |
