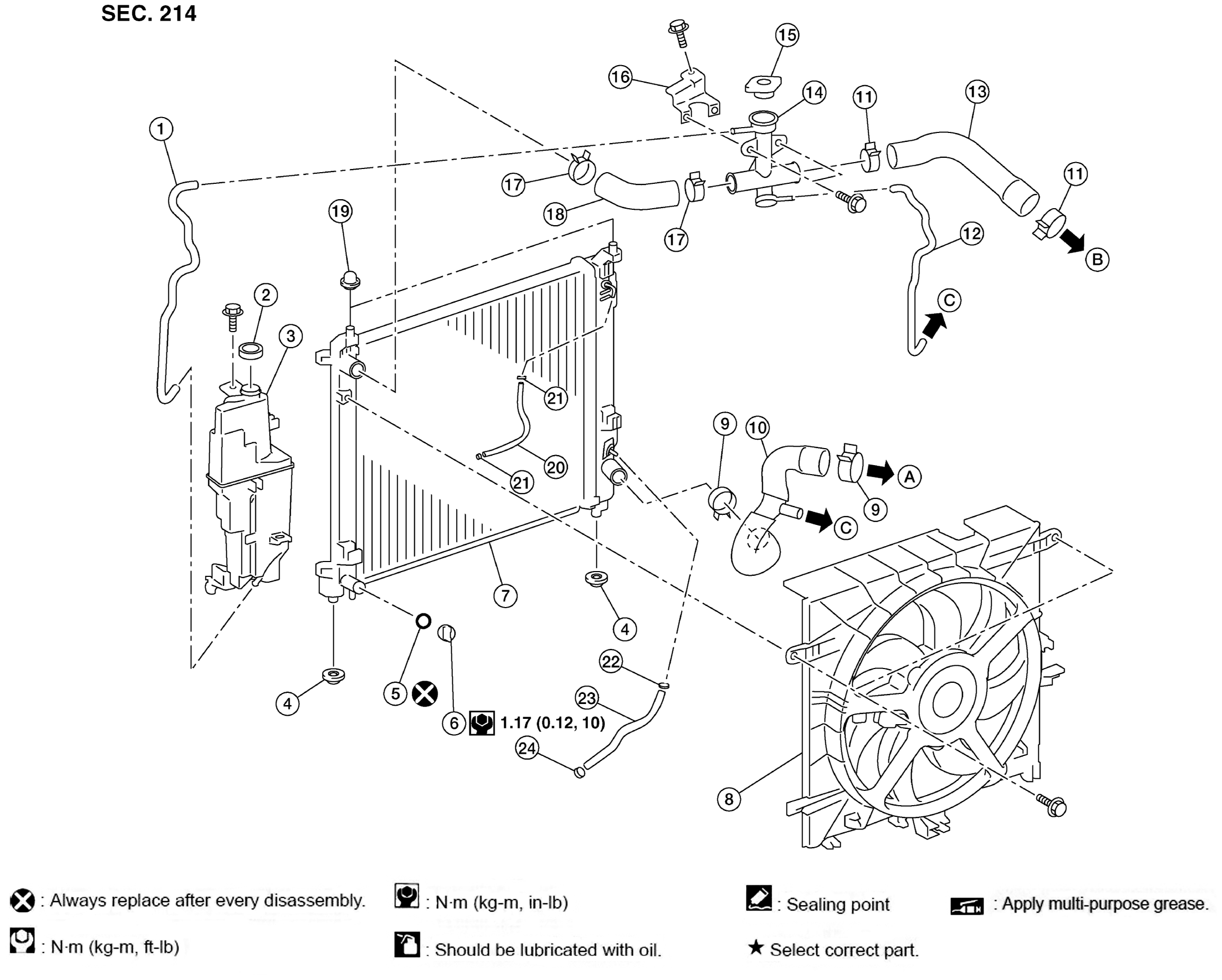

| 1. |
Reservoir tank hose |
2. |
Reservoir tank cap |
3. |
Reservoir tank |
| 4. |
Mounting rubber (lower) |
5. |
O-ring |
6. |
Drain plug |
| 7. |
Radiator |
8. |
Cooling fan assembly |
9. |
Clamp |
| 10. |
Radiator hose (lower) |
11. |
Clamp |
12. |
Oil cooler hose |
| 13. |
Radiator hose to water outlet (upper) |
14. |
Radiator cap adapter |
15. |
Radiator cap |
| 16. |
Radiator cap adapter bracket |
17. |
Clamp |
18. |
Radiator hose (upper) to radiator |
| 19. |
Mounting rubber (upper) |
20. |
CVT cooler hose (CVT models) |
21. |
Clamp |
| 21. |
Clamp |
22. |
Clamp |
23. |
CVT cooler hose (CVT models) |
| 24. |
Clamp |
A. |
To water inlet |
B. |
To water outlet |
| C. |
To oil cooler |
|
|
|
|
