Switches And Indicators

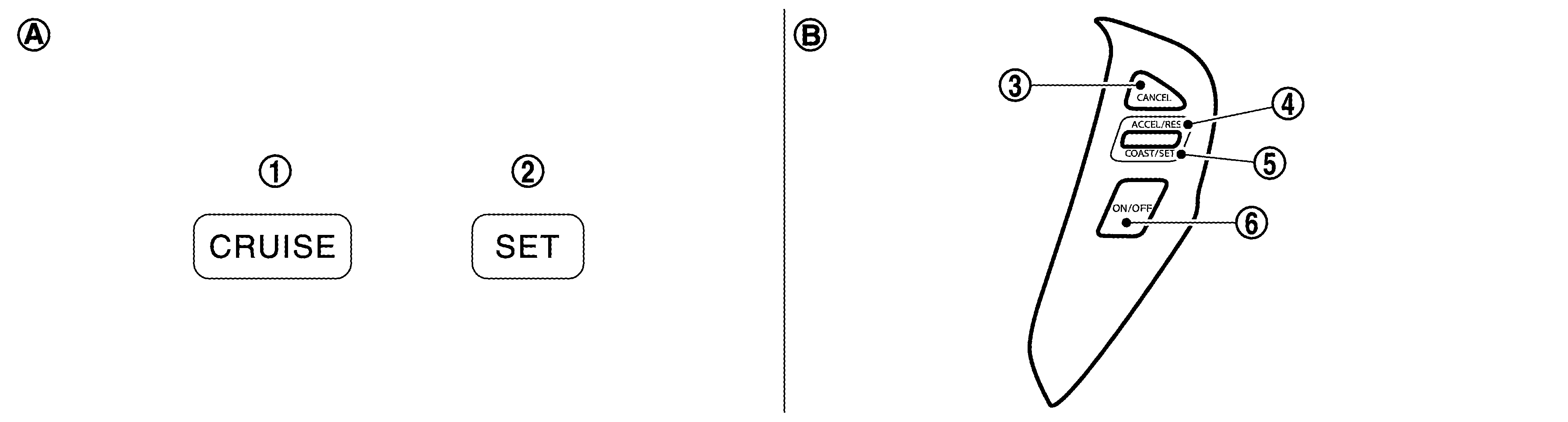

G09617608Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 CRUISE indicator WHITE-2 SET indicator WHITE-3 CANCEL switch
WHITE-4 ACCEL/RES switch WHITE-5 COAST/SET switch WHITE-6 ASCD MAIN switch
MARU-A-W On the combination meter
(Information display)		 MARU-B-W On the steering wheel
