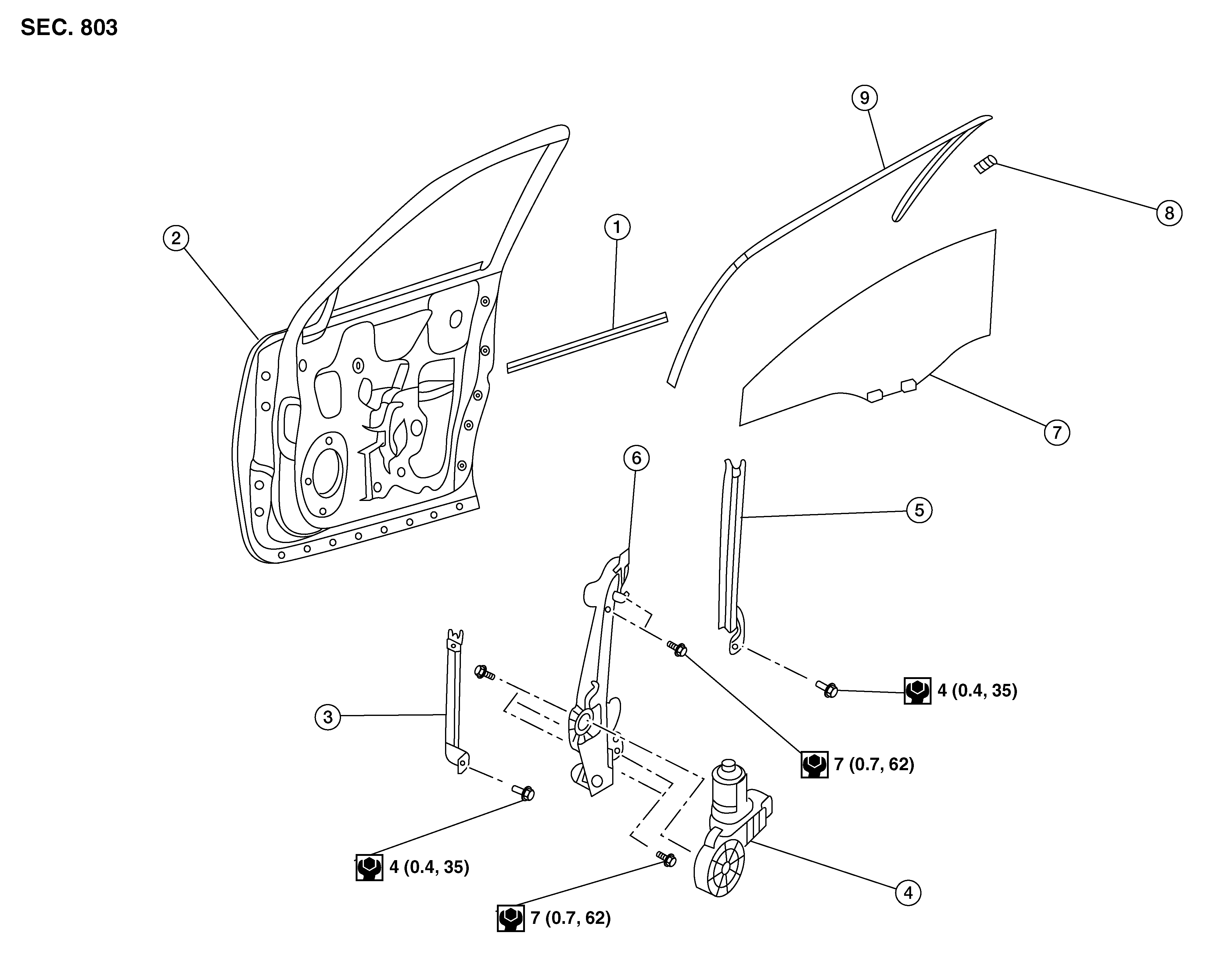

Exploded View
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Front door inside window seal
|
2.
|
Front door panel
|
3.
|
Front door glass channel front
|
|
4.
|
Front door glass regulator motor
|
5.
|
Front door glass channel rear
|
6.
|
Front door glass regulator
|
|
7.
|
Front door glass
|
8.
|
Front door sash clip
|
9.
|
Front door glass rubber run
|
NOTE:
RH side shown, LH side similar.
