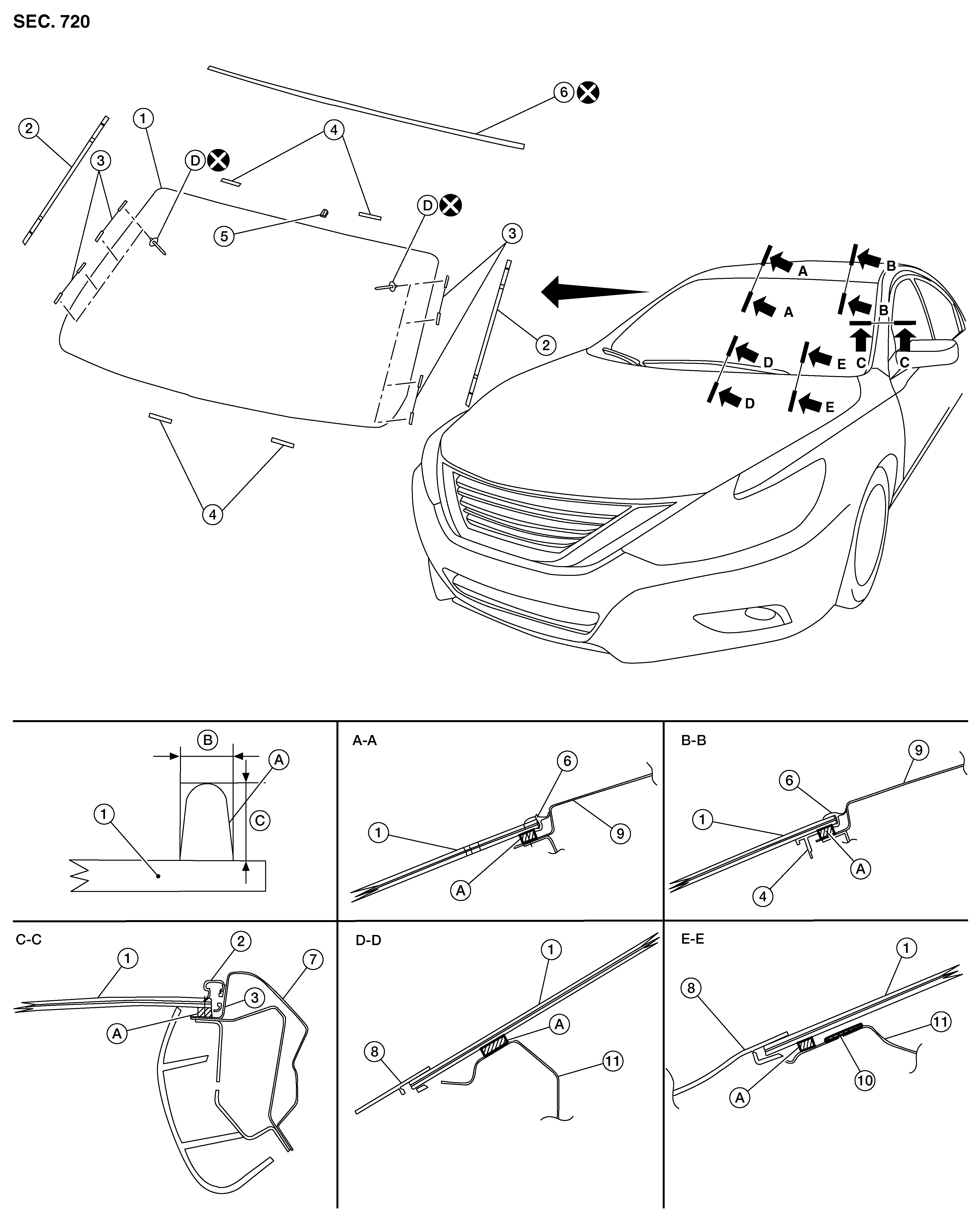

Exploded View
|
1. |
Windshield glass |
2. |
Windshield glass side trim molding |
3. |
Side trim molding fastener |
|
4. |
Spacer |
5. |
Inside mirror base |
6. |
Windshield glass upper molding |
|
7. |
Front pillar outer panel |
8. |
Cowl top cover |
9. |
Roof panel |
|
10. |
Identification number |
11. |
Cowl top |
A. |
Adhesive |
|
B. |
7.0 +2 mm (0.3 +0.1 in) |
C. |
12.0 +2 mm (0.5 +0.1 in) |
D. |
Rivet |
