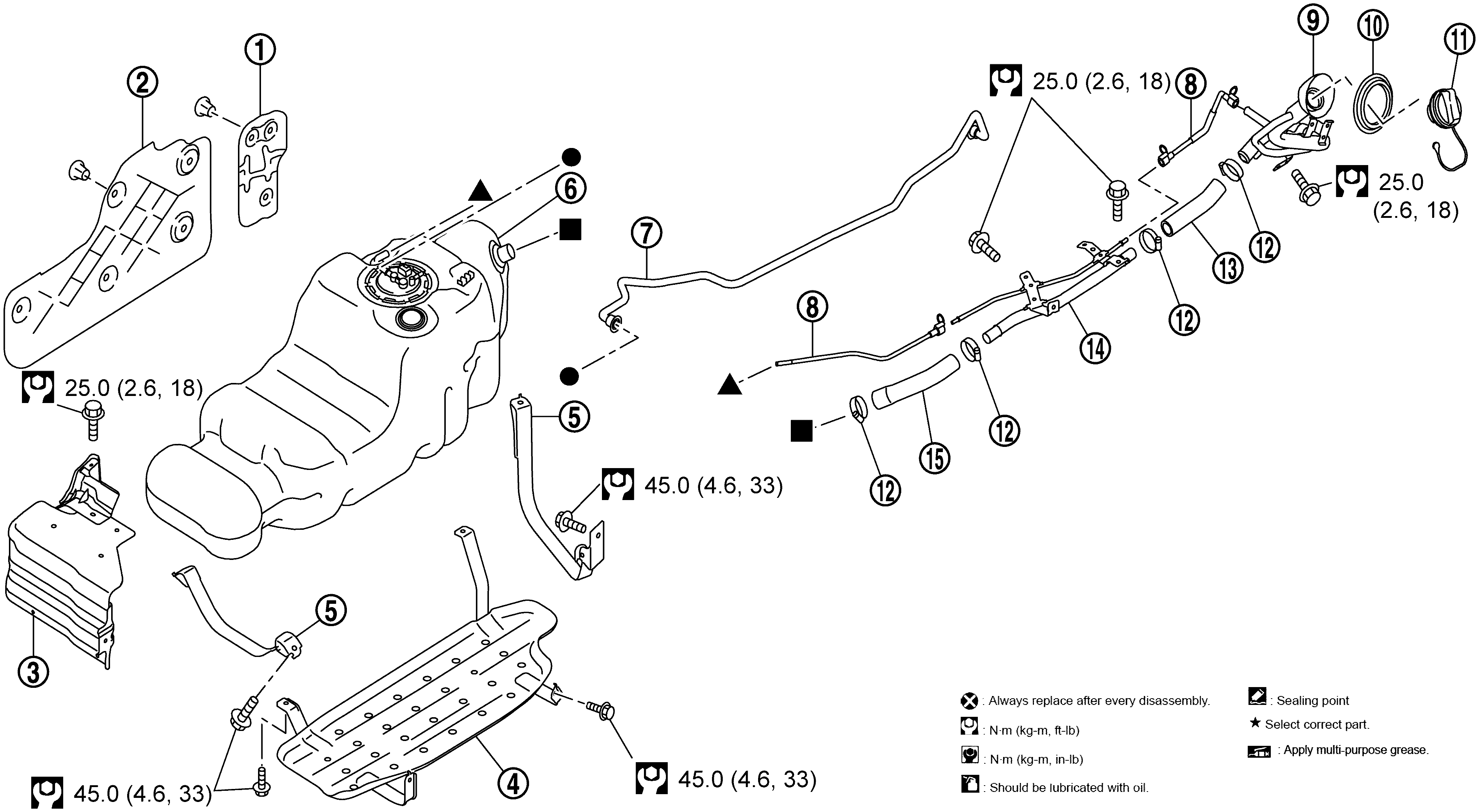

Exploded View

1.

Fuel tank side protector

2.

Fuel tank side protector

3.

Fuel tank front protector

4.

Fuel tank protector

5.

Fuel tank mounting band

6.

Fuel tank

7.

Vent hose

8.

EVAP tube

9.

Fuel filler tube

10.

Grommet

11.

Fuel filler cap

12.

Clamp

13.

Fuel filler hose

14.

Fuel filler tube

15.

Fuel filler hose

, , : Indicates that the part is connected at points with same symbol in actual vehicle.

: N.m (kg-m, ft-lb)
