Exploded View

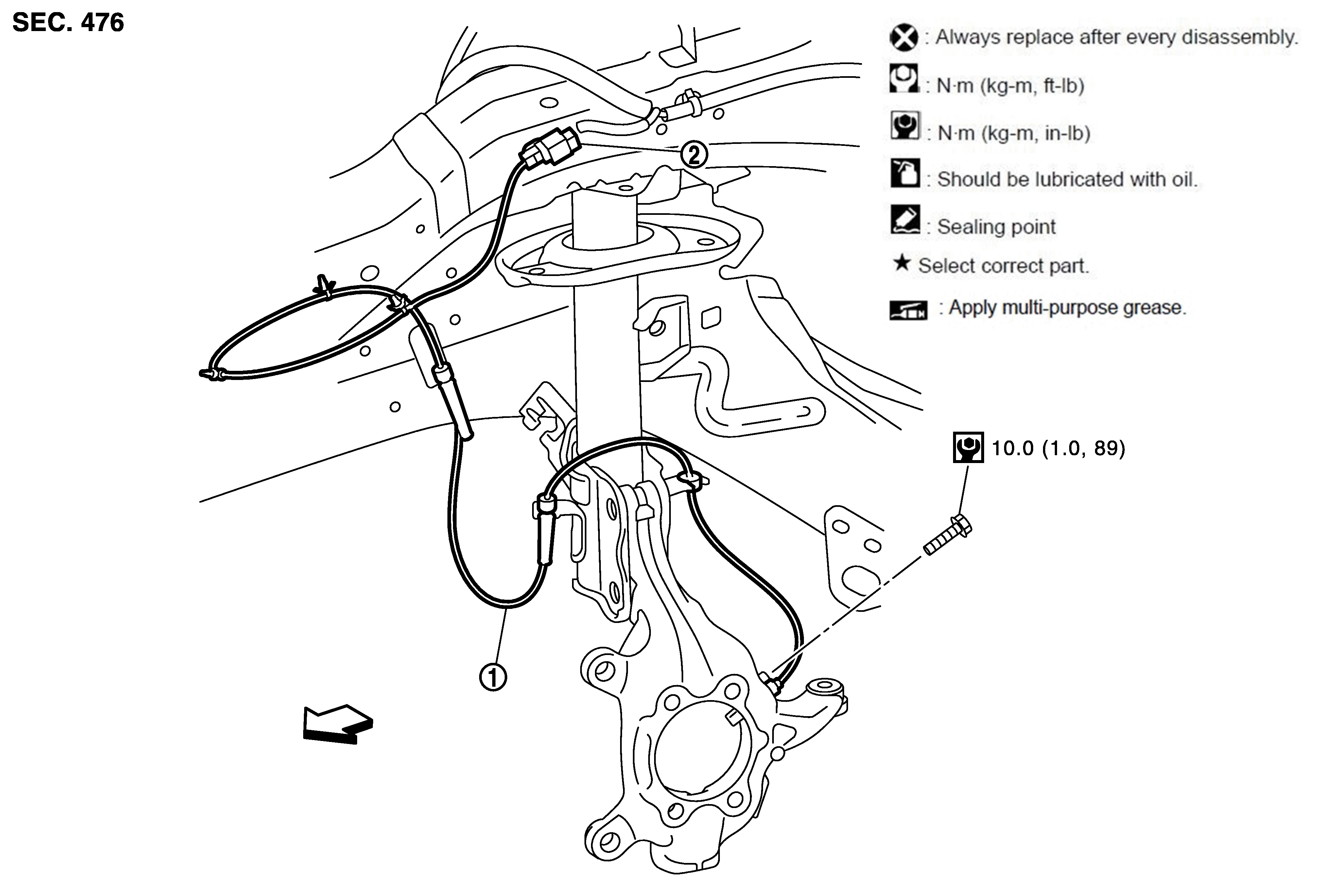

Fig 1: Front Wheel Sensor Replacement Components With Torque Specifications
GNSJPFIC0191GB-191SYMBOLCourtesy of NISSAN NORTH AMERICA, INC.

1.

Front wheel sensor

2.

Front wheel sensor harness connector

SYMBOL

Front
