Exploded View

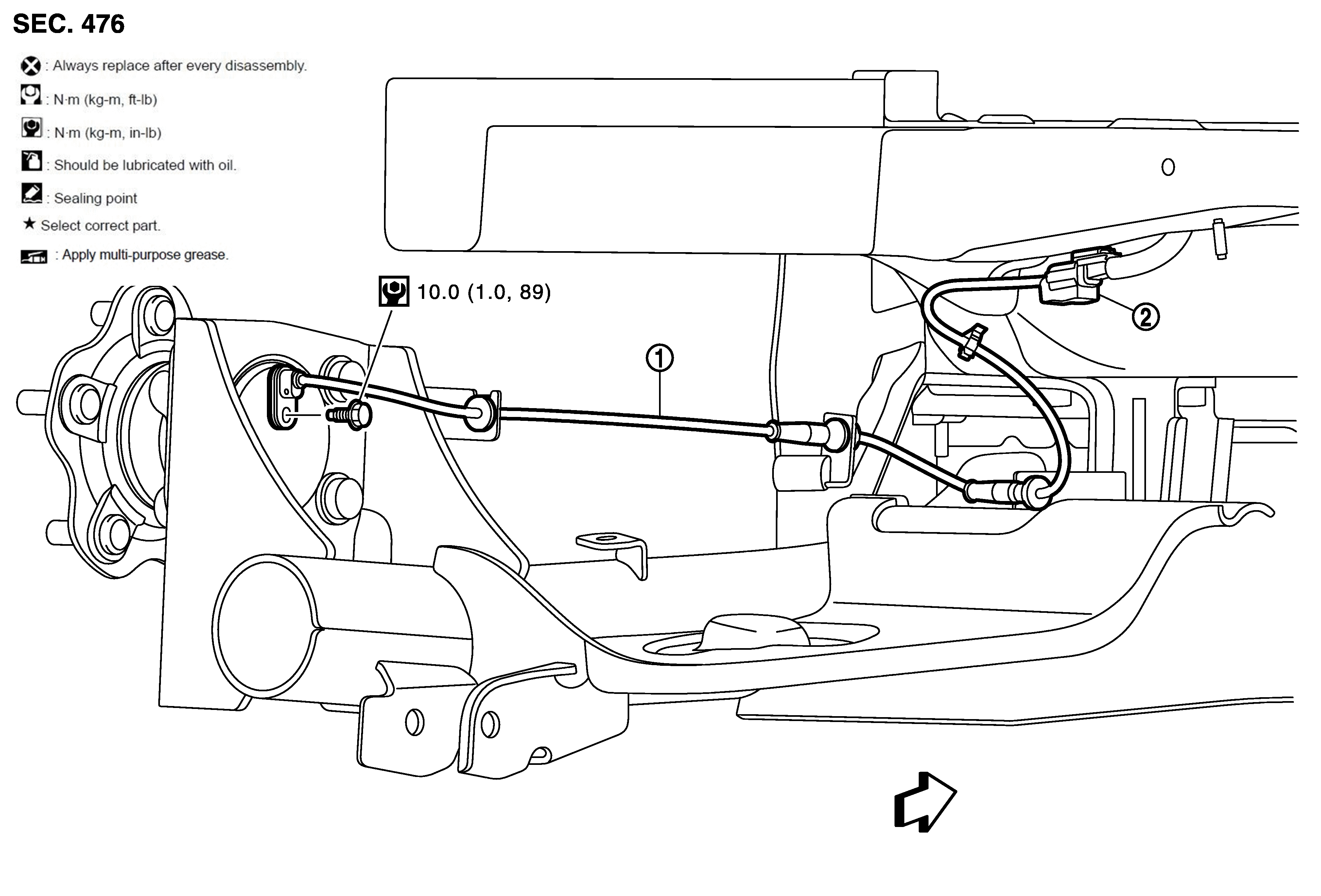

Fig 1: Rear Wheel Sensor Replacement Components With Torque Specifications
GNSJPFIC0192GB-192SYMBOLCourtesy of NISSAN NORTH AMERICA, INC.

1.

Rear wheel sensor

2.

Rear wheel sensor harness connector

SYMBOL

Front
