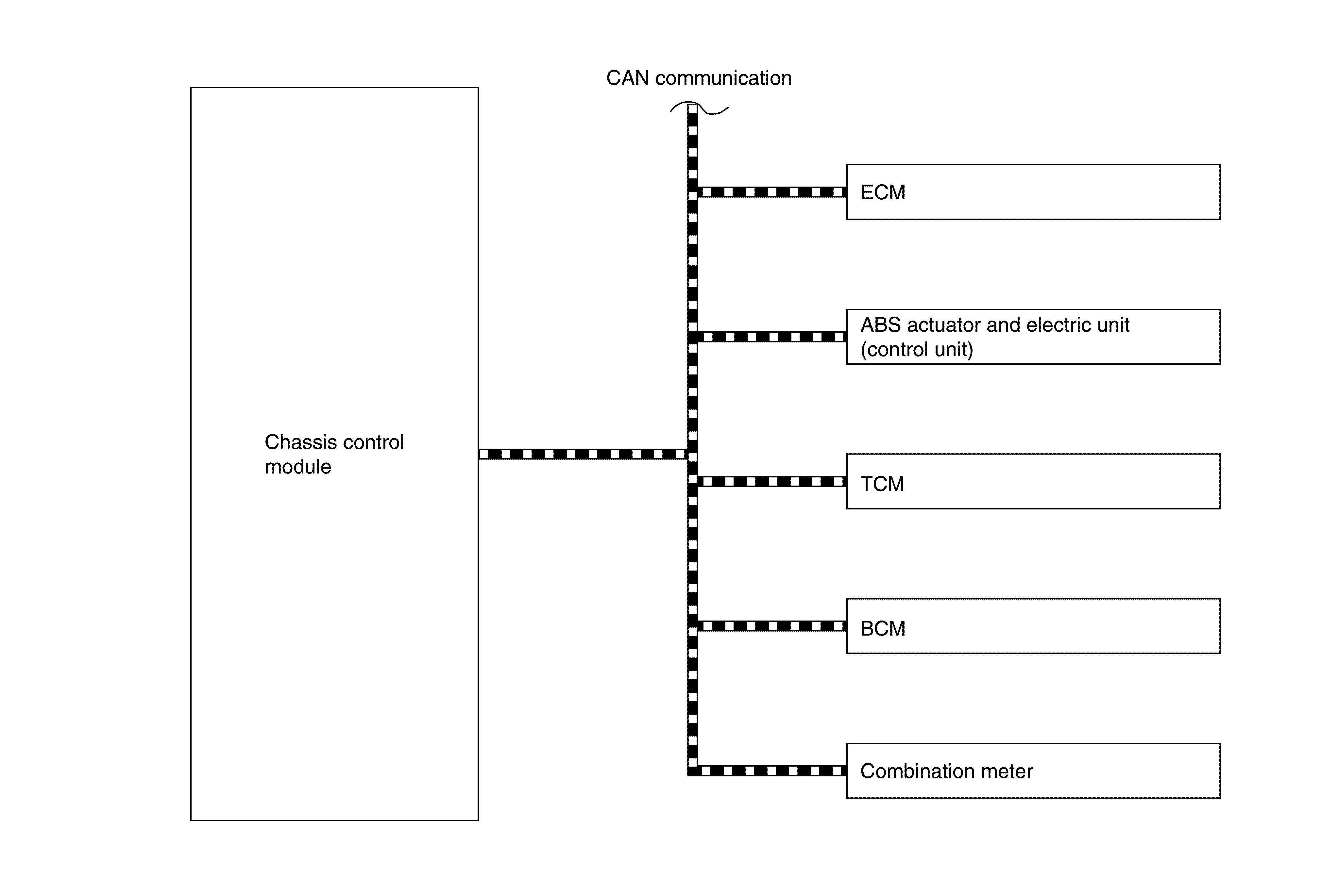

System Diagram

NOTE: TCM is applied to CVT models.
GNSJSOIA1460GB-460Courtesy of NISSAN NORTH AMERICA, INC.
