Removal and Installation: Removal

  1. Remove the instrument lower panel LH. Refer to Removal and Installation .
  2. Disconnect the harness connector from the immobilizer control unit.
    GNSALKIA4658Z-658Courtesy of NISSAN NORTH AMERICA, INC.

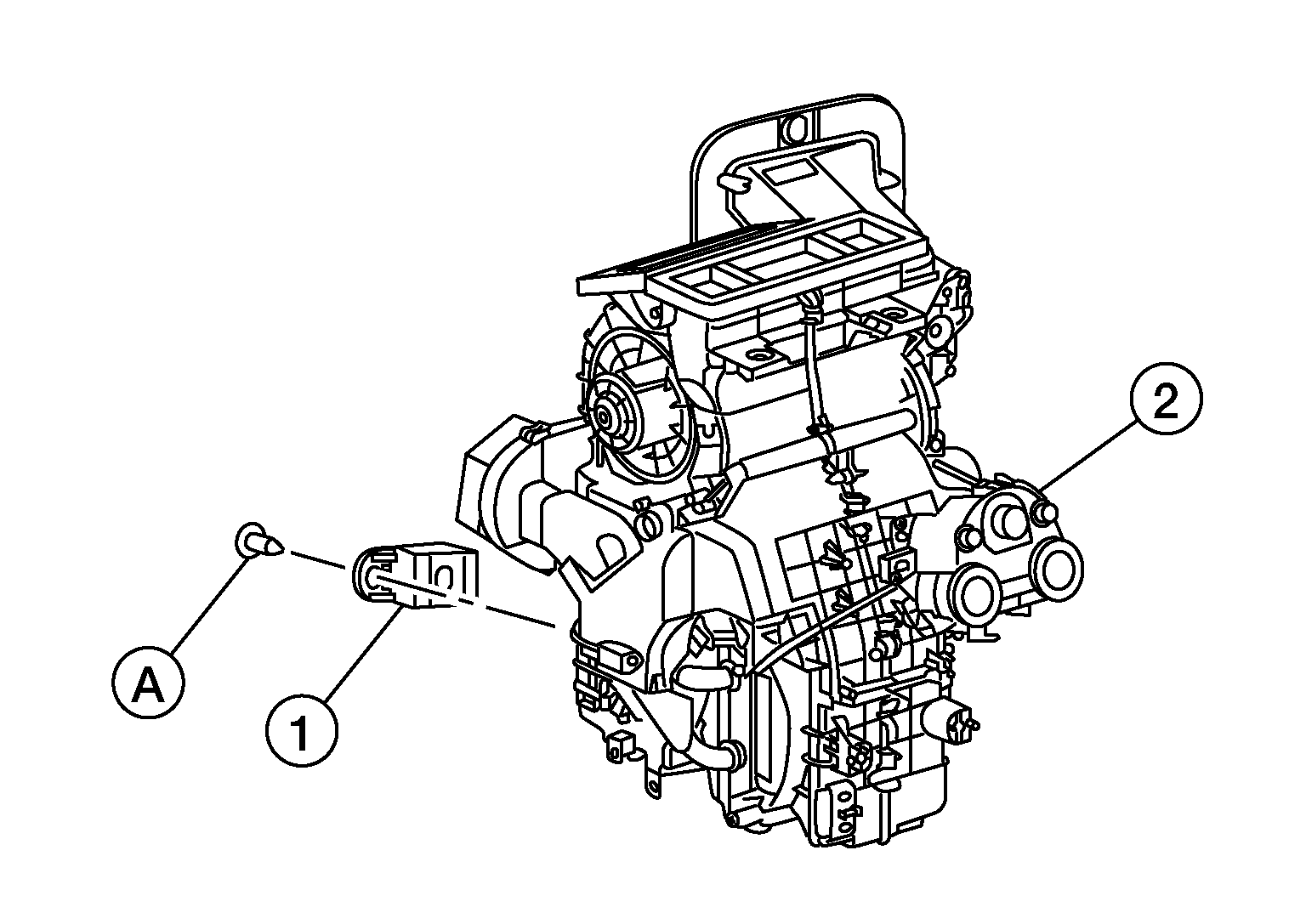

  3. Remove the immobilizer control unit screw (A) and remove the immobilizer control unit (1) from behind the heating and cooling unit assembly (2).
