Exploded View

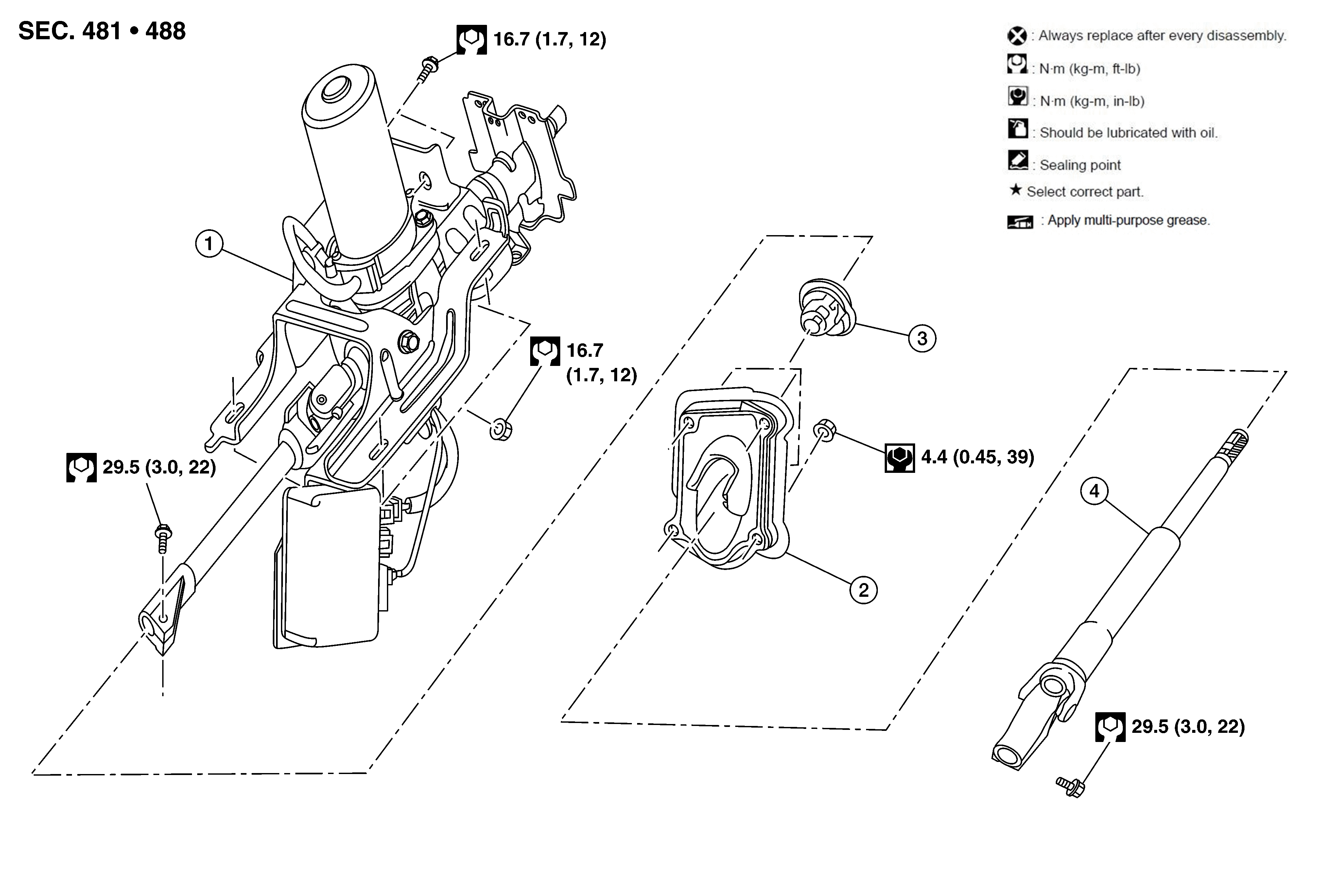

Fig 1: Steering Column With Torque Specifications

GNSAWGIA0282Z-282

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering column	2.	Hole cover	3.	Dash seal
4.	Steering intermediate shaft
