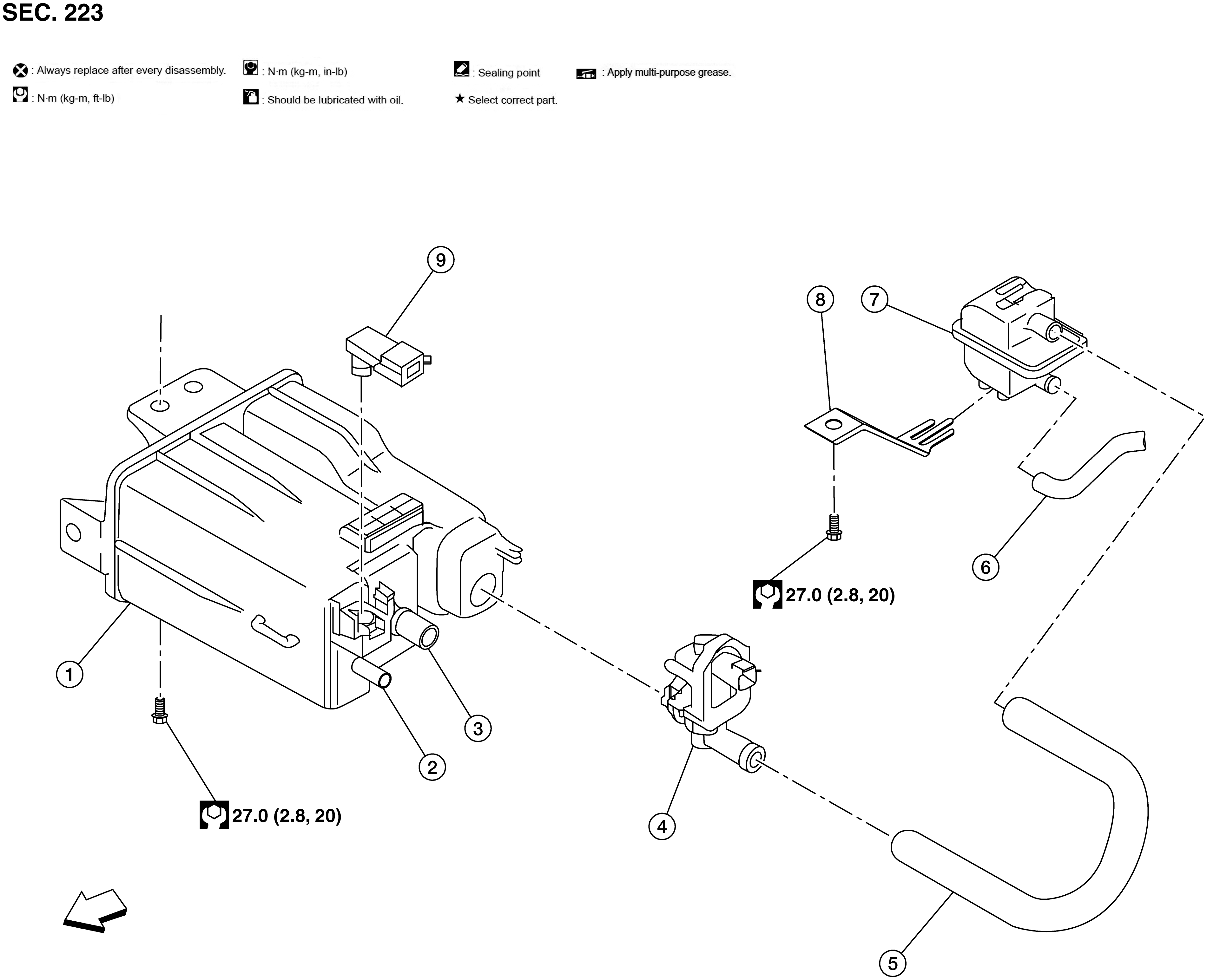

1.
EVAP canister
2.
EVAP canister purge port
3.
EVAP canister vent port
4.
EVAP canister vent control valve
5.
EVAP canister vent control valve hose
6.
EVAP canister drain hose
7.
EVAP canister filter
8.
EVAP canister bracket
9.
EVAP canister pressure sensor
Front
