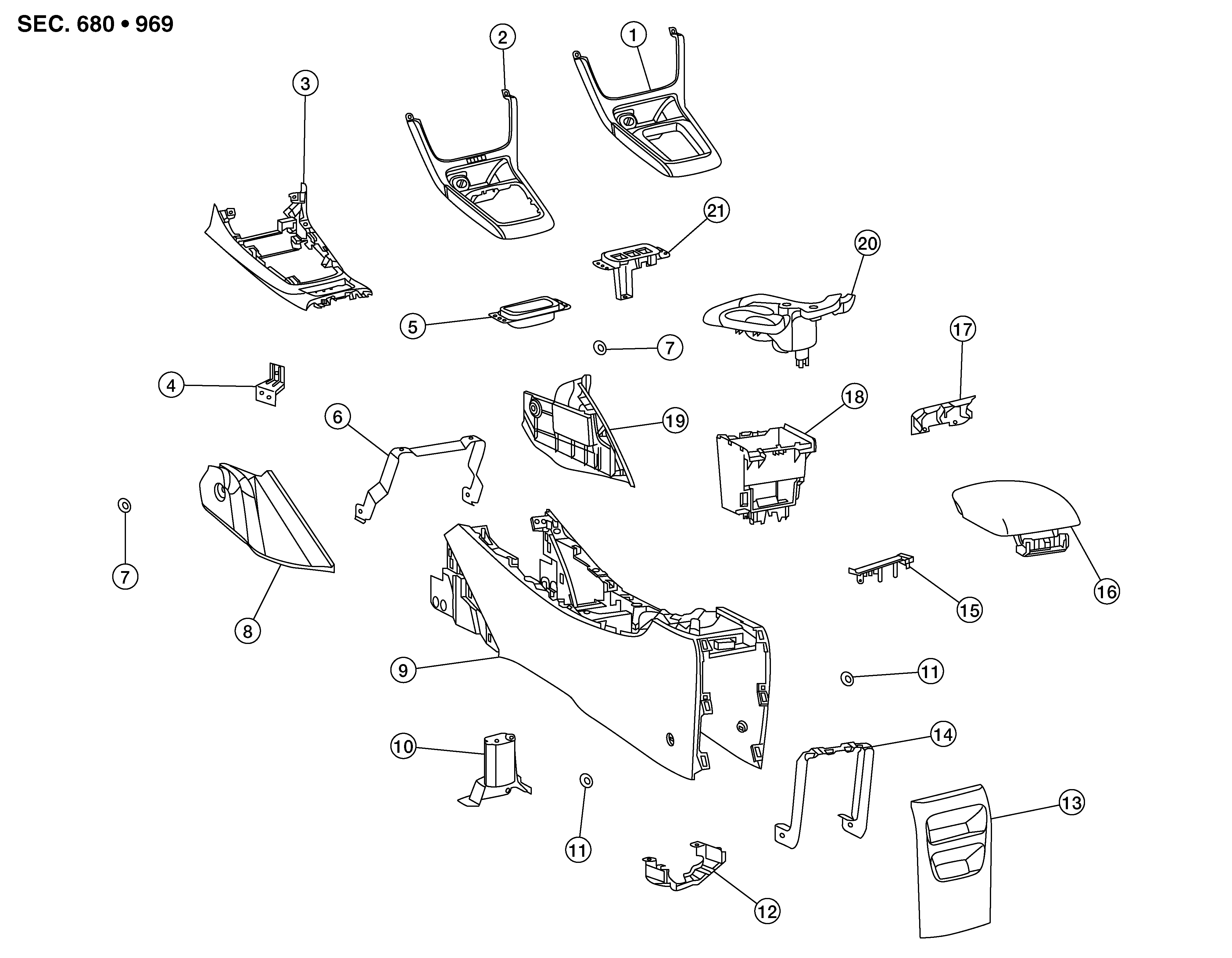

Exploded View
|
1. |
Shift Selector Finisher (CVT) |
2. |
Shift Selector Finisher (Manual) |
3. |
Center Console Upper Finisher |
|
4. |
Center Console Front Bracket |
5. |
Center Console Coin Tray (If Equipped) |
6. |
Center Console Front Brace |
|
7. |
Center Console Side Finisher Screw Cover |
8. |
Center Console Side Finisher (LH) |
9. |
Center Console |
|
10. |
Center Console Center Bracket (Manual) |
11. |
Center Console Screw Cover |
12. |
Center Console Rear Bracket |
|
13. |
Center Console Rear Finisher |
14. |
Center Console Rear Brace |
15. |
Center Console Rear Finisher Cover |
|
16. |
Center Console Bin Lid |
17. |
Center Console Switch Mask |
18. |
Center Console Bin |
|
19. |
Center Console Side Finisher (RH) |
20. |
Center Console Cup Holder Finisher |
21. |
Heated Seat Switch Finisher (If Equipped) |
