Mode 6 - NISSAN: 2018

Fig 1: Mode $06 Data (1 Of 8)

G00535165

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Mode $06 Data (2 Of 8)

G00535166

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Mode $06 Data (3 Of 8)

G00574009

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Mode $06 Data (4 Of 8)

G00574014

Courtesy of NISSAN MOTOR CO., U.S.A.

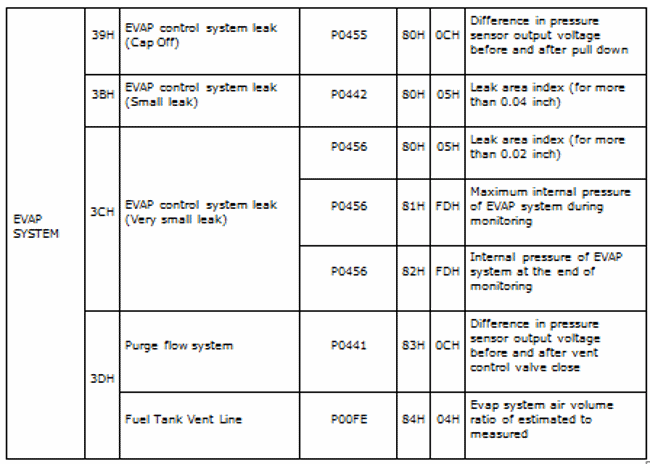

Fig 5: Mode $06 Data (5 Of 8)

G00574015

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Mode $06 Data (6 Of 8)

G00574016

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Mode $06 Data (7 Of 8)

G00535170

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Mode $06 Data (8 Of 8)

G00535171

Courtesy of NISSAN MOTOR CO., U.S.A.
