Exploded View: Removal

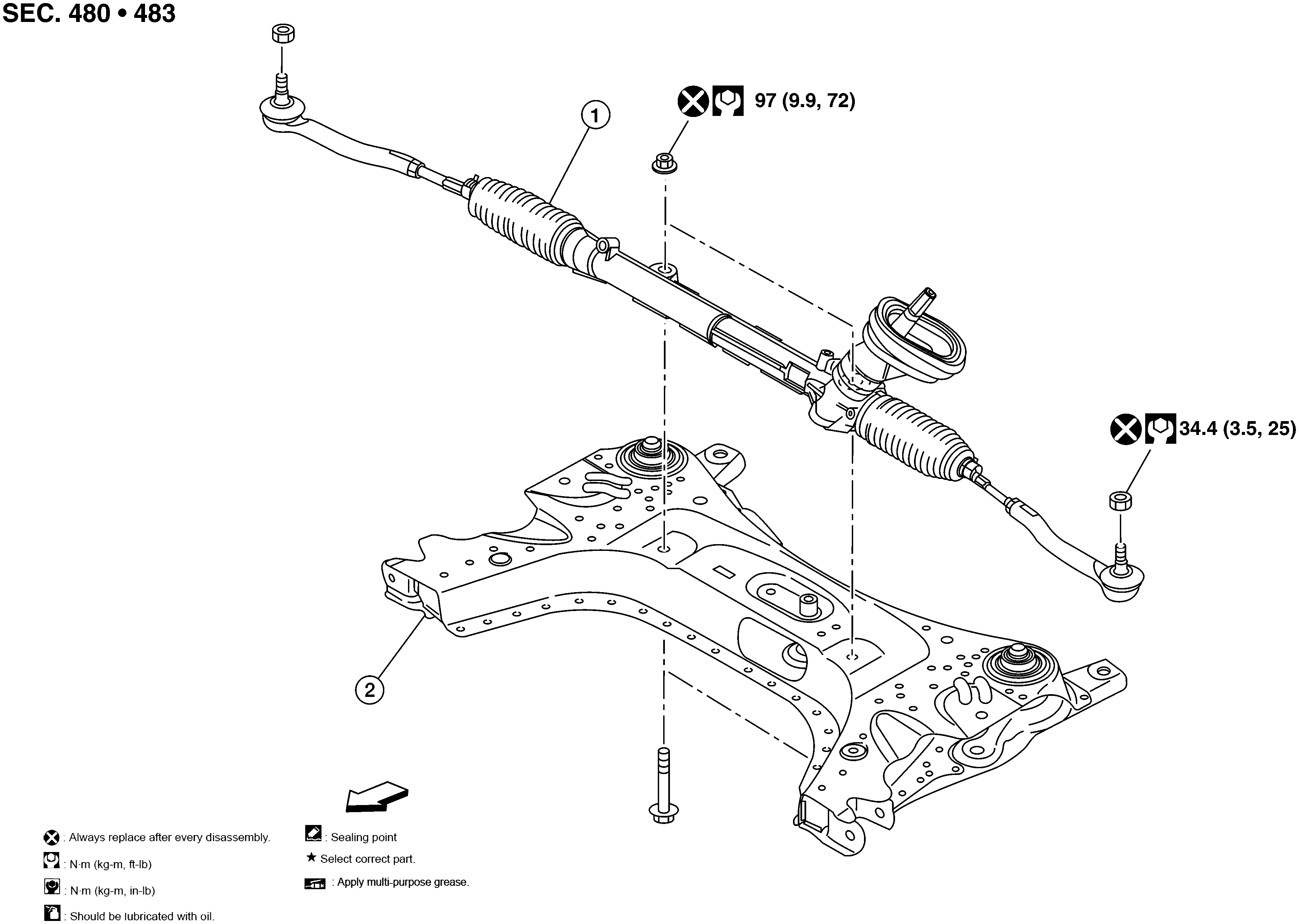

Fig 1: Steering Gear And Linkage Removal And Installation 1.8L With Torque Specifications

GNSAWGIA0254Z-254

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering gear assembly

2.

Front suspension member

Front

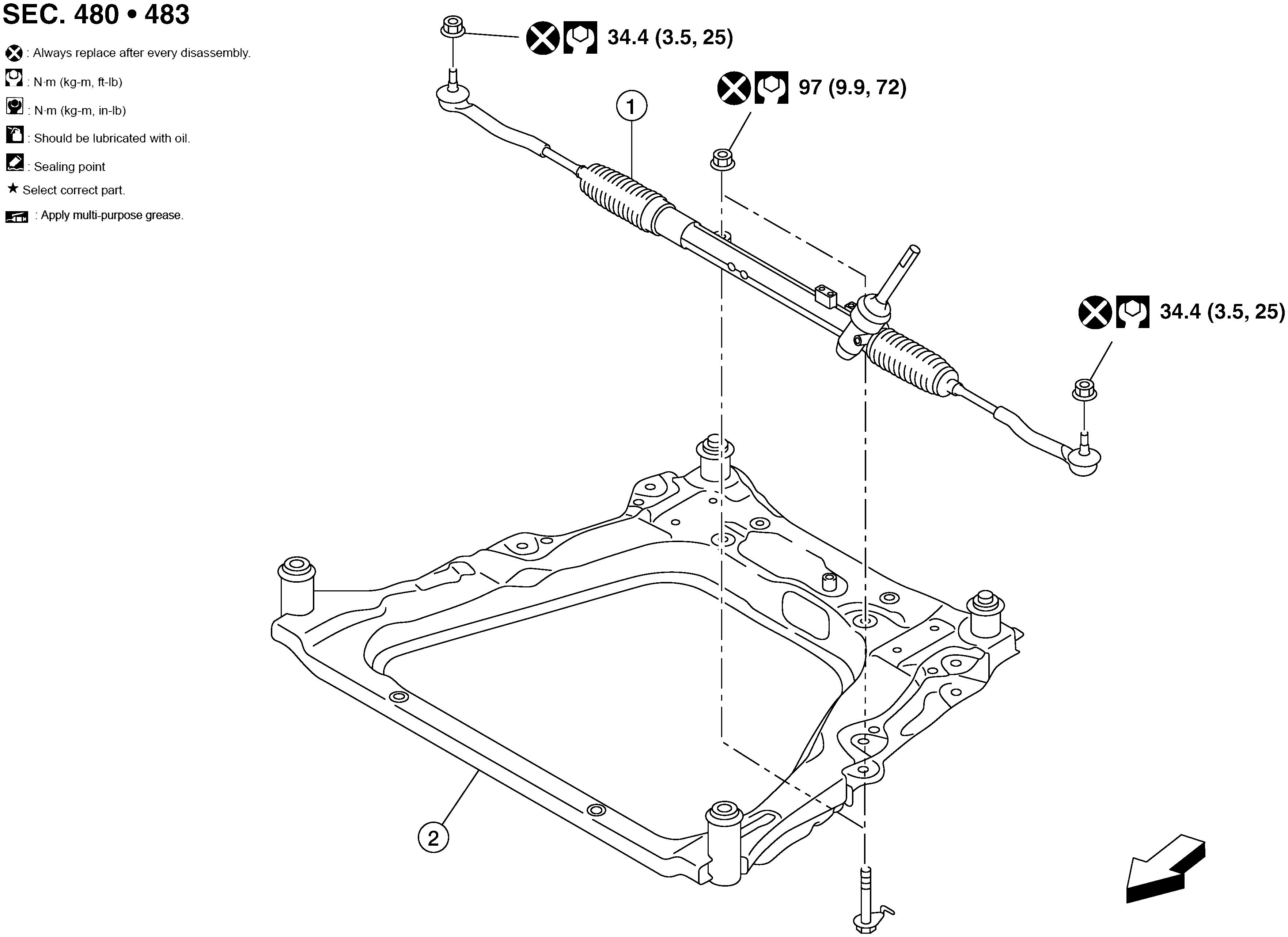

Fig 2: Steering Gear And Linkage Removal And Installation 1.6L With Torque Specifications

GNSAWGIA0491Z-491

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering gear assembly

2.

Front suspension member

Front
