Exploded View

Fig 1: Transverse Link With Torque Specifications
GNSDB119570Courtesy of NISSAN NORTH AMERICA, INC.

1.

Upper link

2.

Front suspension member

3.

Transverse link

SYMBOL

Front

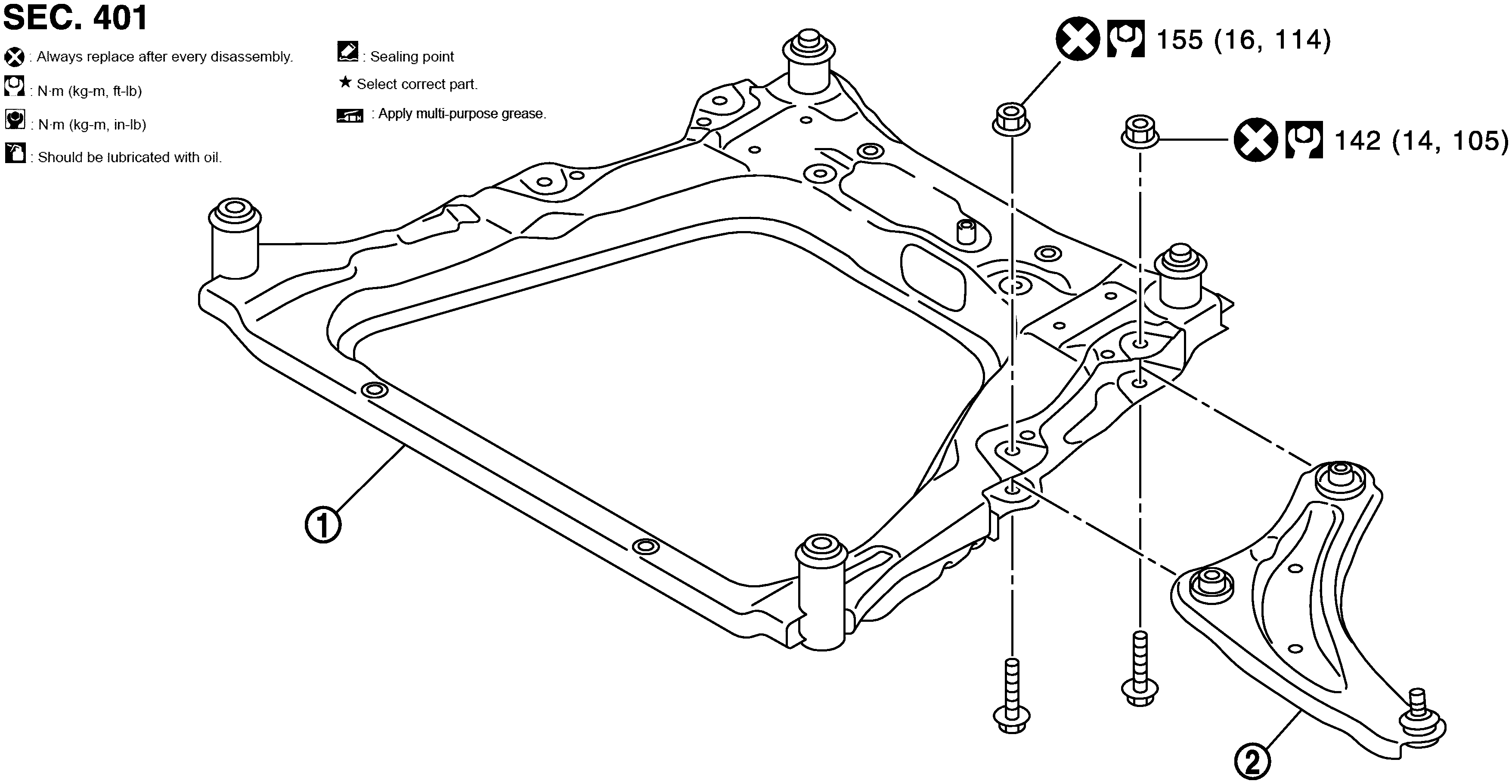

Fig 1: Front Suspension Member With Torque Specifications
GNSJPEIA0242GB-242Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front suspension member

2.

Transverse link
