Exploded View

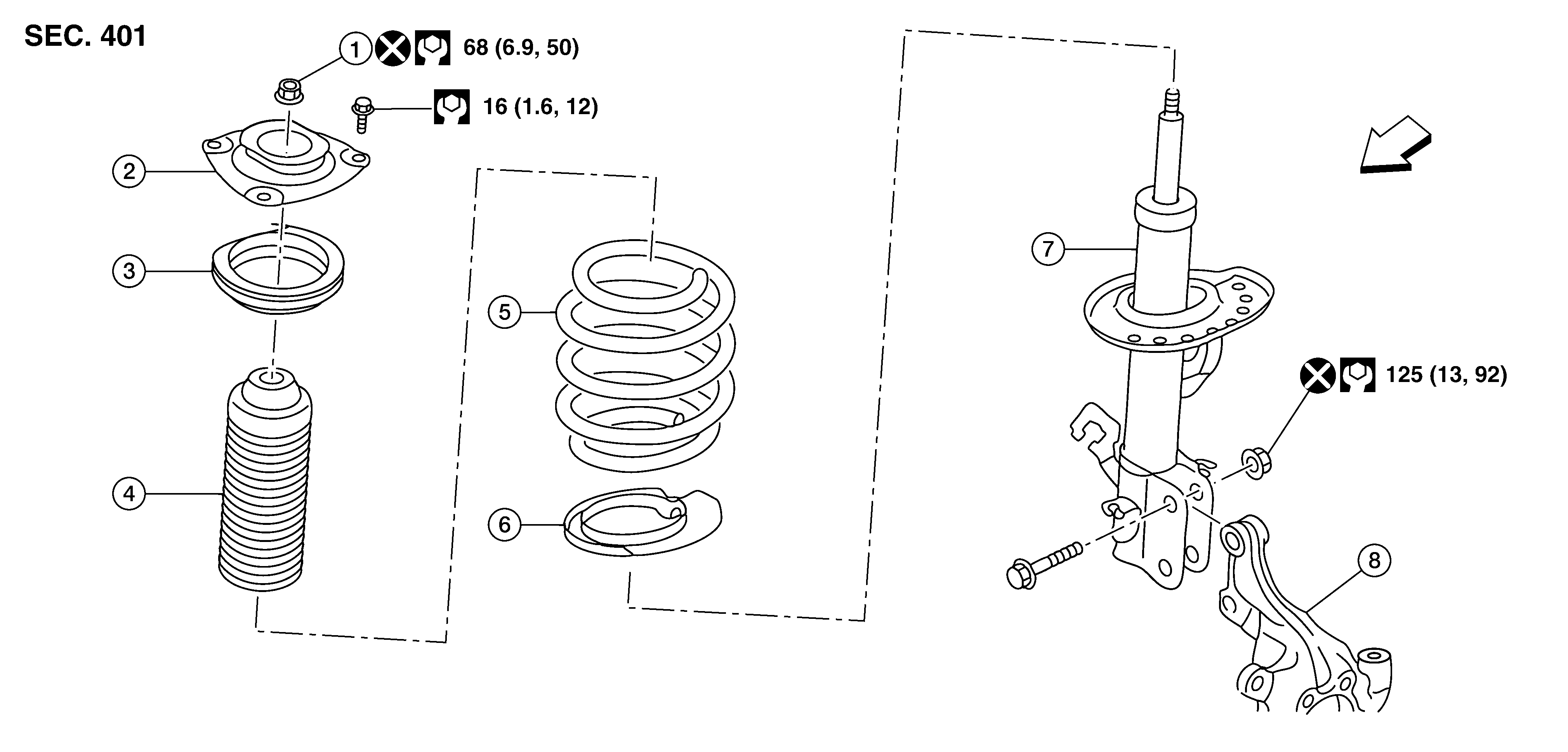

Fig 1: Front Coil Spring And Strut Unit Disassembly And Assembly With Torque Specifications

GNSDB121978

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Piston rod lock nut	2.	Strut mount insulator	3.	Strut mount bearing
4.	Bound bumper	5.	Coil spring	6.	Lower rubber seat
7.	Strut	8.	Steering knuckle		Front
