Exploded View

Fig 1: Front Suspension Member With Torque Specifications (CVT)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Upper link	2.	Front suspension member	3.	Member stay
	Front

Fig 2: Front Suspension Member With Torque Specifications (M/T)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Upper link	2.	Front suspension member	3.	Member stay
	Front

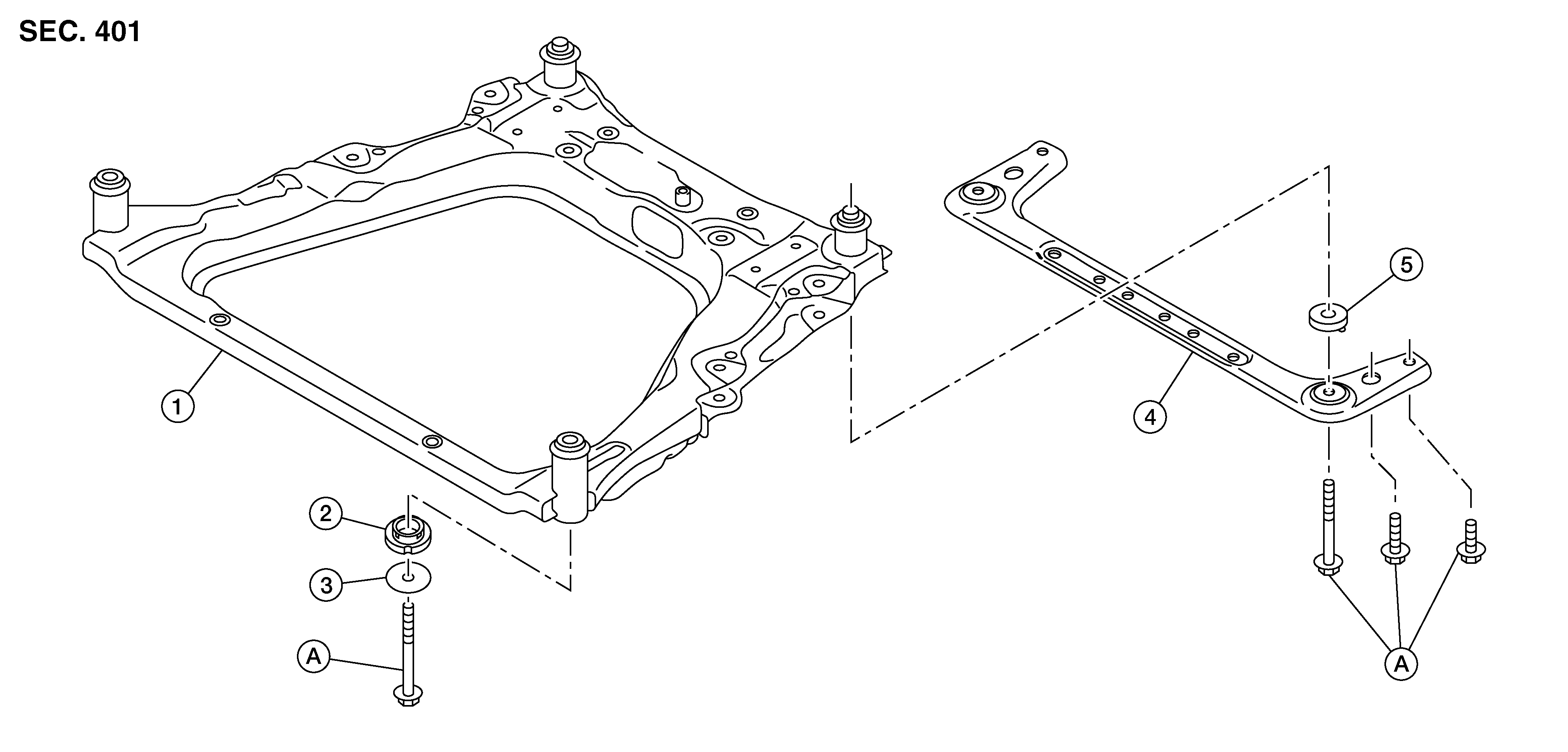

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front suspension member	2.	Rebound stopper rubber	3.	Insulator
4.	Member stay	5.	Rebound stopper	A.	Refer to INSTALLATION.
