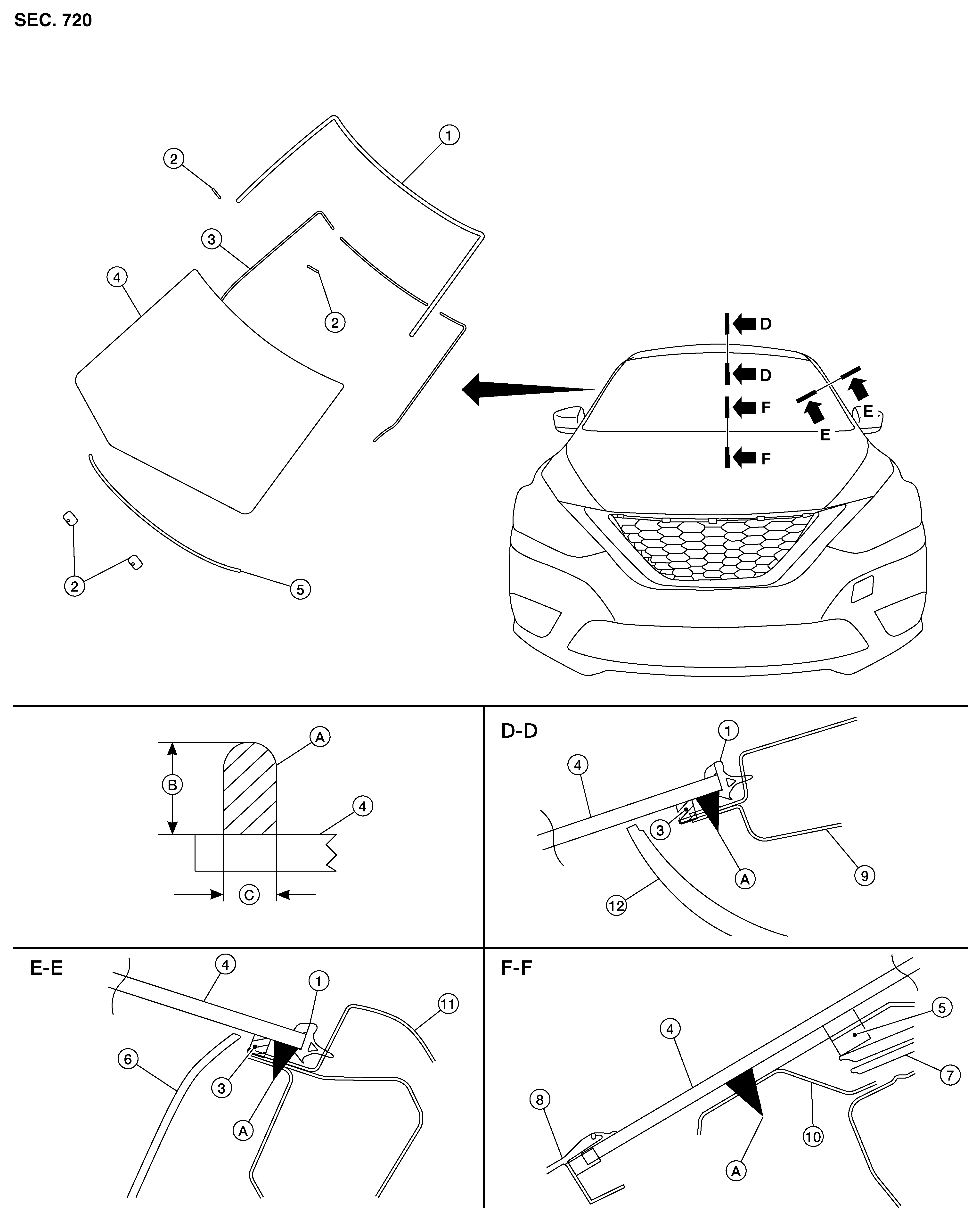

1.
Windshield glass molding
2.
Spacer
3.
Rubber dam
4.
Windshield glass
5.
Windshield insulator
6.
Front pillar finisher
7.
Instrument panel
8.
Cowl top cover
9.
Roof panel
10.
Cowl top
11.
Body side outer
12.
Headlining
A.
Adhesive
B.
12 +2.0 mm (0.5 +0.08 in)
C.
7 +2.0 mm (0.3 +0.08 in)
