Exploded View

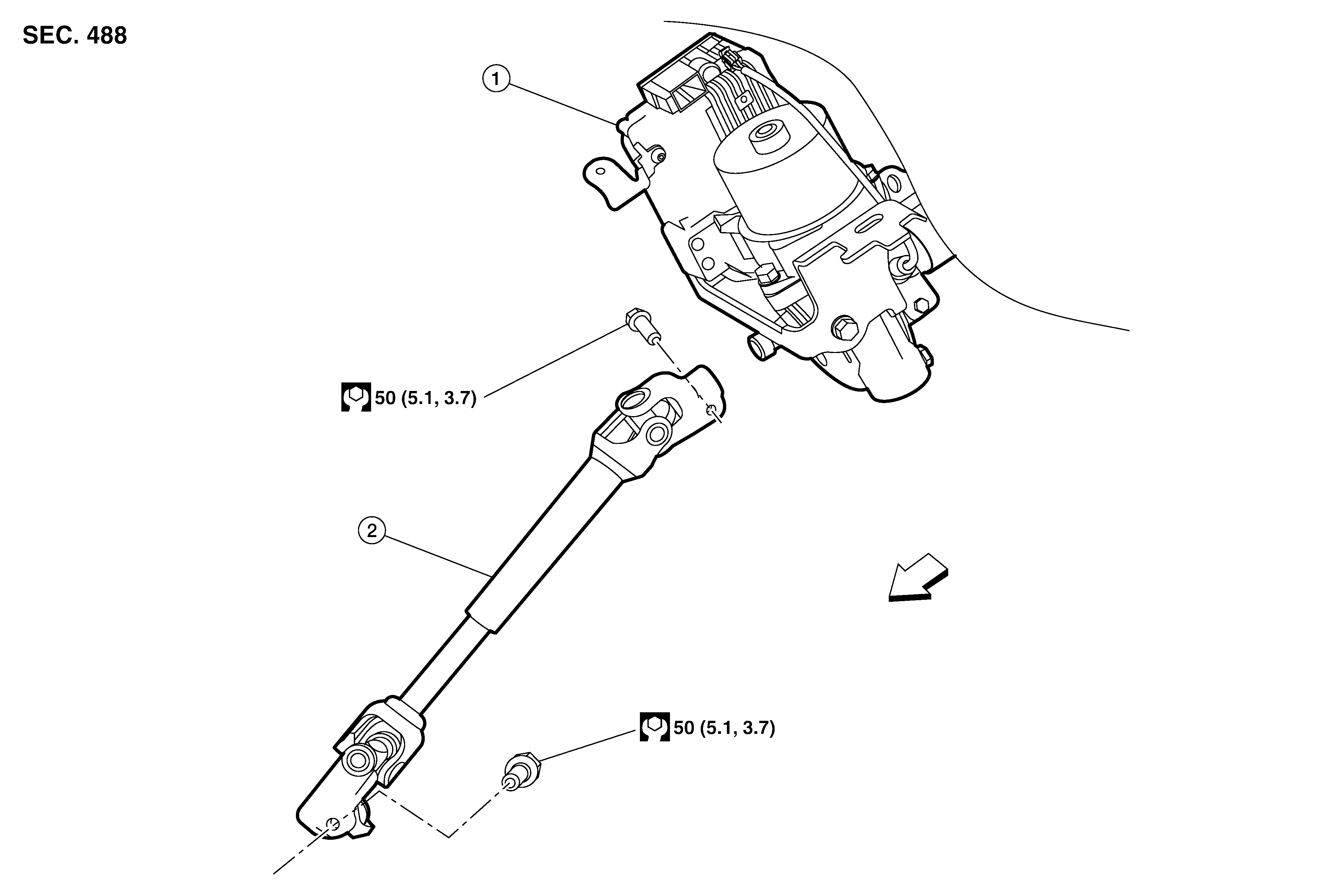

Fig 1: Lower Joint 1.8L With Torque Specifications

GNSALGIA0355Z-355

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column

2.

Lower joint

Front

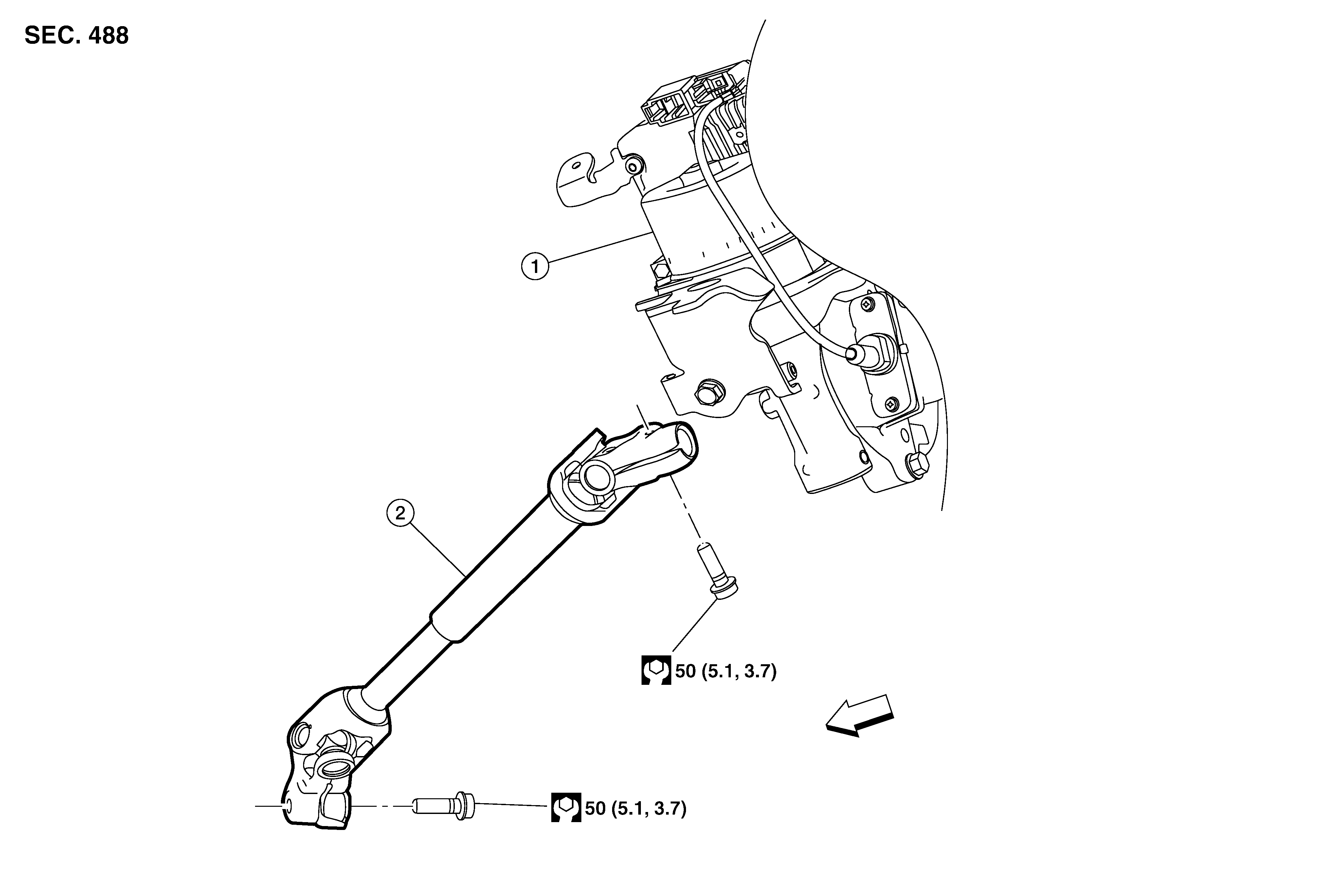

Fig 2: Lower Joint 1.6L With Torque Specifications

GNSALGIA0363Z-363

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column

2.

Lower joint

Front
