Starting System
›
System Description
›
Starting System
›
System Diagram
System Diagram

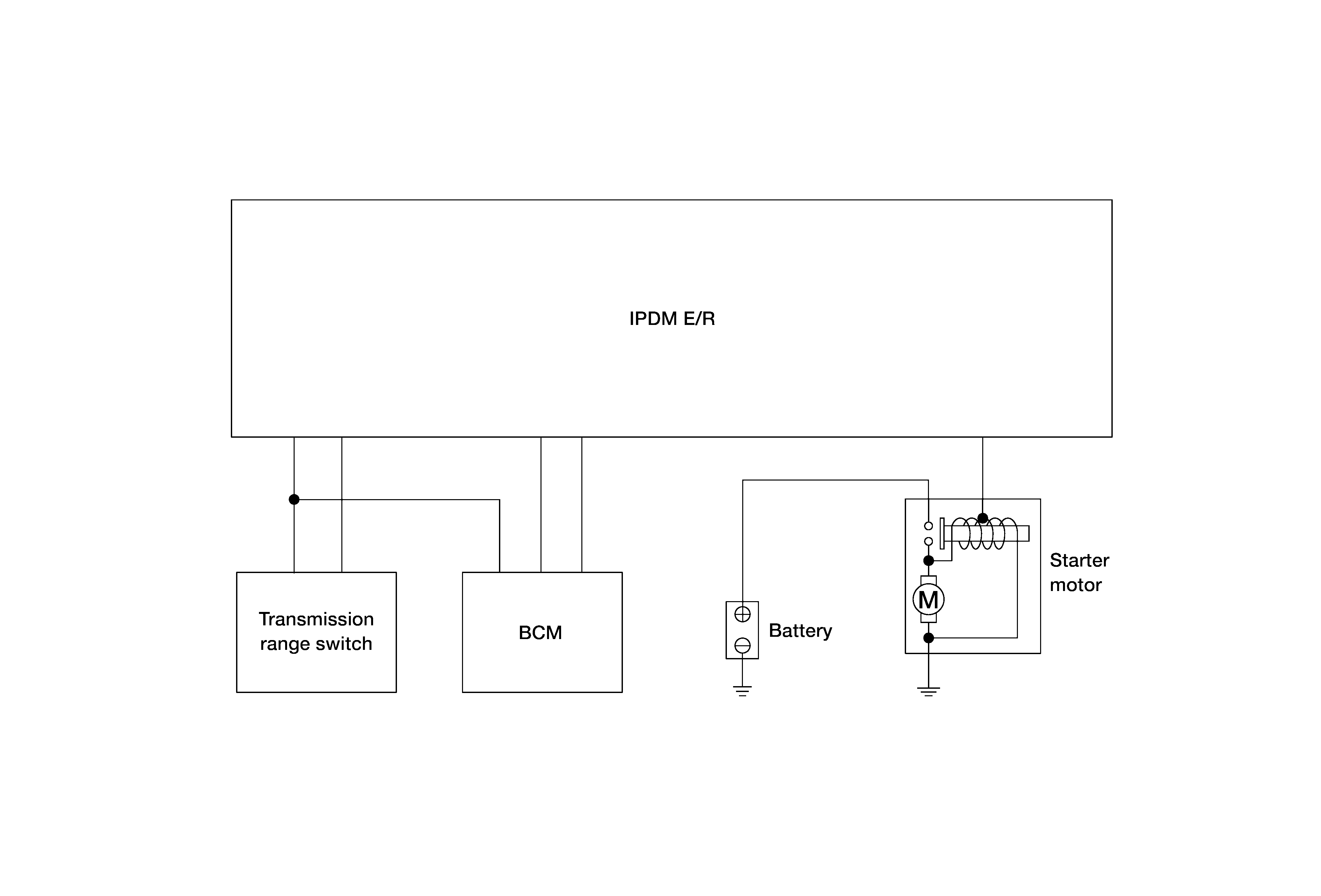

WITH CUMMINS 5.0L
Courtesy of NISSAN NORTH AMERICA, INC.

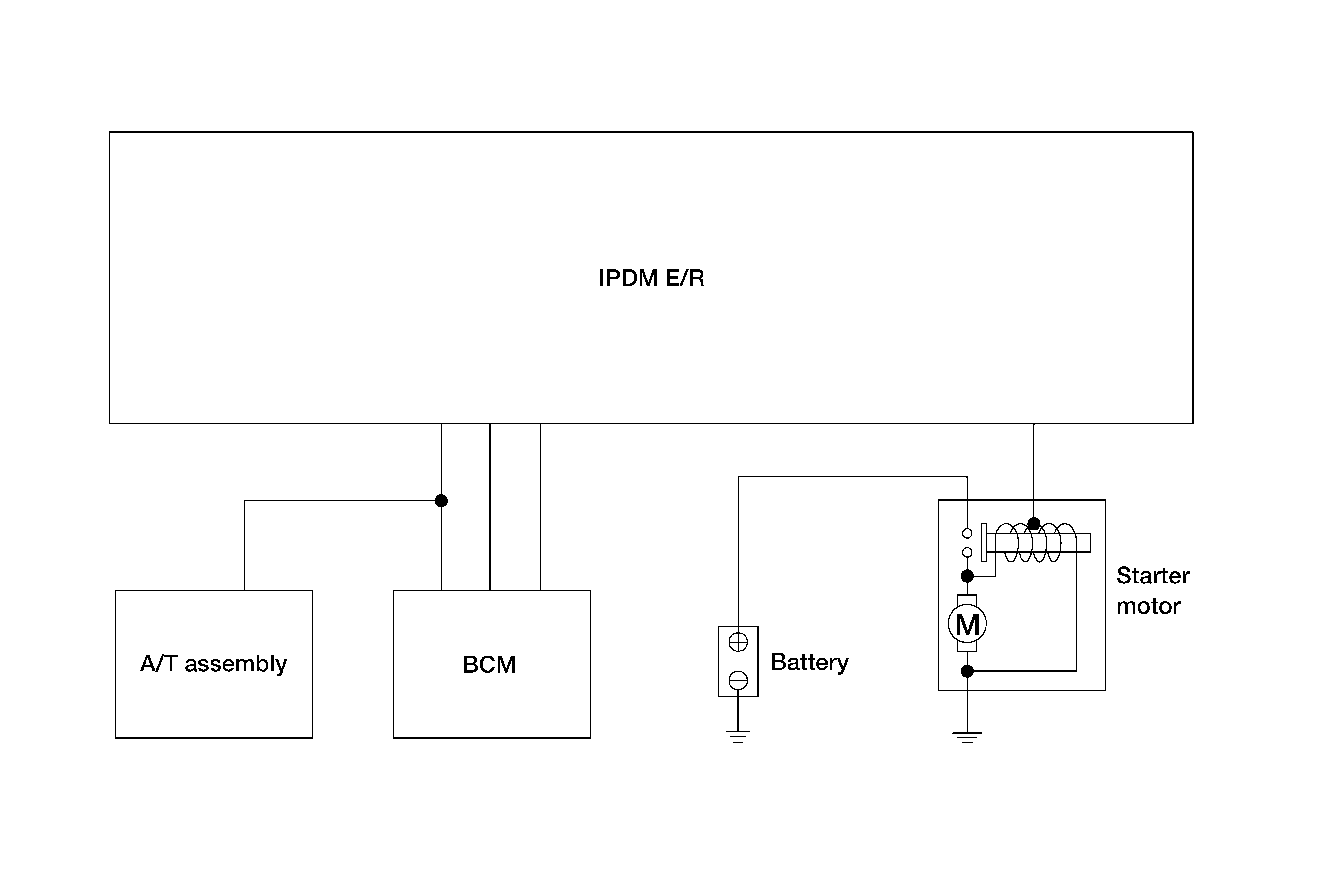

WITH VK56VD
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
