Removal and Installation: Removal

  1. Remove the glove box. Refer to Removal and Installation .

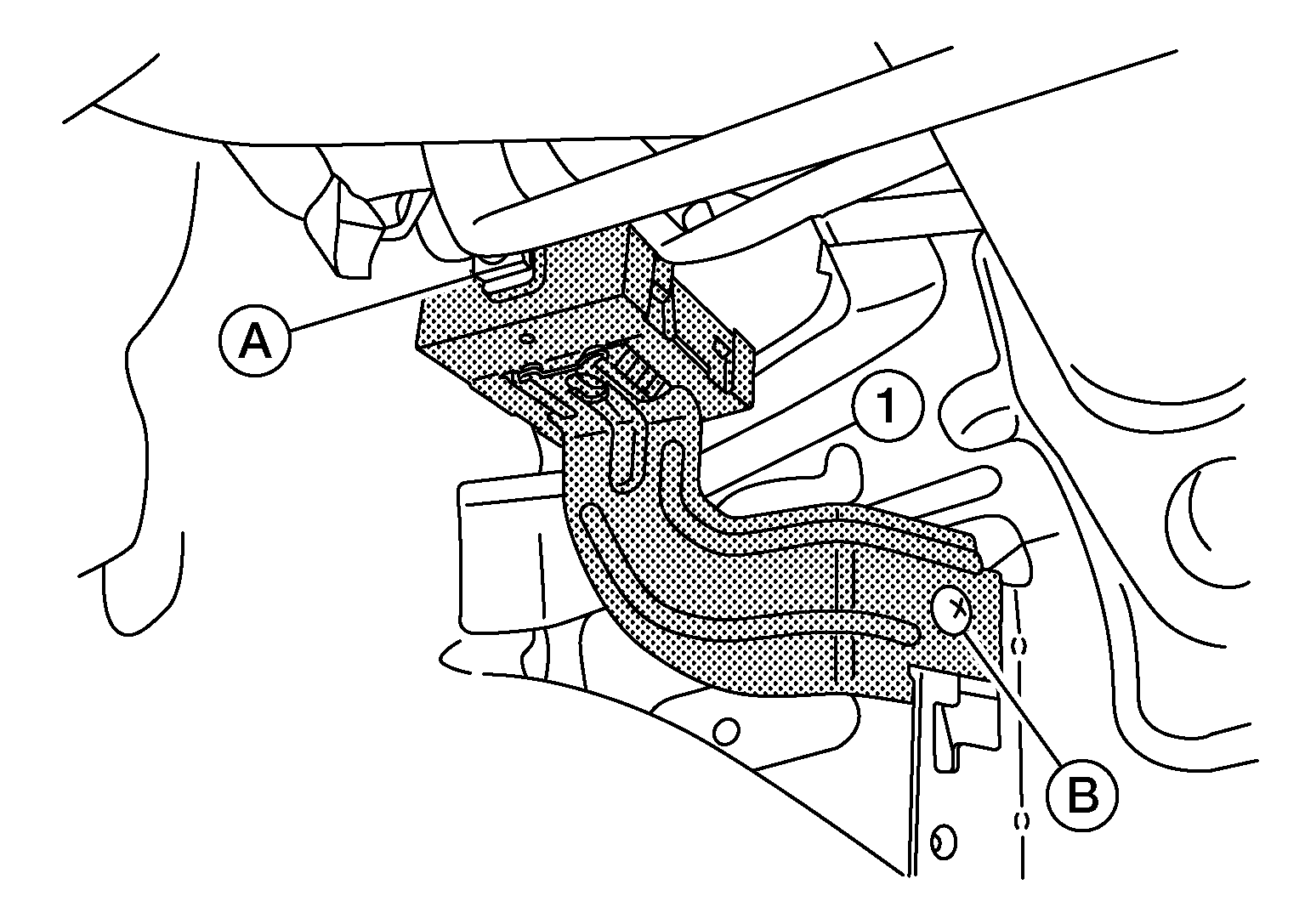

  2. Disconnect the harness connector (A) from remote keyless entry receiver (1).
    GNSALKIA3178Z-178Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove screw (B) and remove remote keyless entry receiver.
