Exploded View

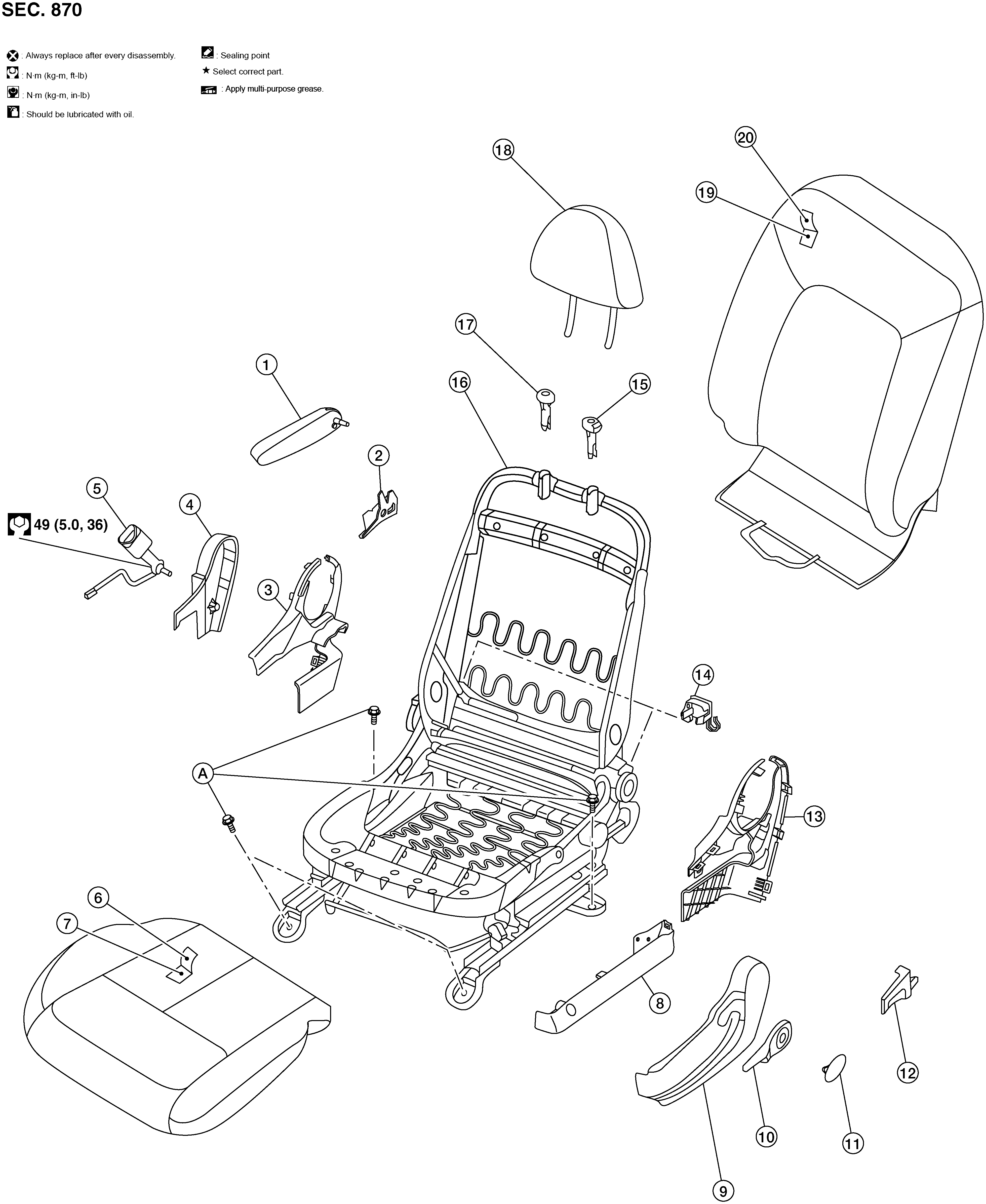

Driver Seat With Lift And Armrest
|
1. |
Armrest |
2. |
Slide finisher inner (RH) |
3. |
Seat cushion inner finisher (RH) |
|
4. |
Seat cushion outer finisher (RH) |
5. |
Seat belt buckle |
6. |
Seat cushion trim |
|
7. |
Seat cushion pad |
8. |
Slide outer finisher (LH) |
9. |
Seat cushion outer finisher (LH) |
|
10. |
Left lever |
11. |
Lift lever cap |
12. |
Recline lever |
|
13. |
Seat cushion inner finisher (LH) |
14. |
Slide finisher (LH/RH) |
15. |
Headrest holder (locked) |
|
16. |
Seat frame assembly |
17. |
Headrest holder (free) |
18. |
Headrest |
|
19. |
Seatback pad |
20. |
Seatback trim |
A. |
Refer to Installation |

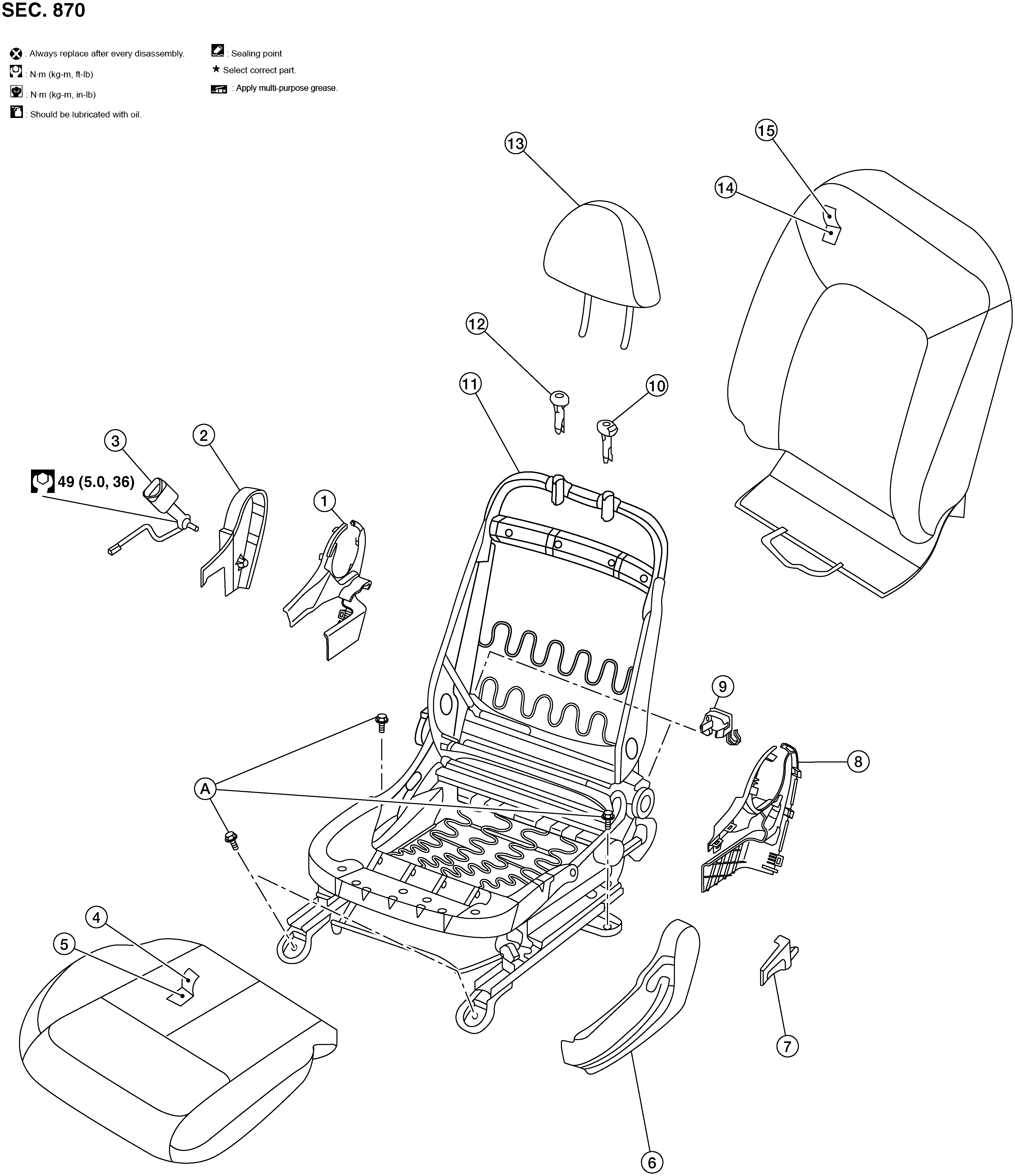

Driver Seat Without Lift And Armrest
|
1. |
Seat cushion inner finisher (RH) |
2. |
Seat cushion outer finisher (RH) |
3. |
Seat belt buckle |
|
4. |
Seat cushion trim |
5. |
Seat cushion pad |
6. |
Seat cushion outer finisher (LH) |
|
7. |
Recline level |
8. |
Seat cushion inner finisher (LH) |
9. |
Slide finisher (LH/RH) |
|
10. |
Headrest holder (locked) |
11. |
Seat assembly |
12. |
Headrest holder (free) |
|
13. |
Headrest |
14. |
Seatback pad |
15. |
Seatback trim |
|
A. |
Refer to Installation |
