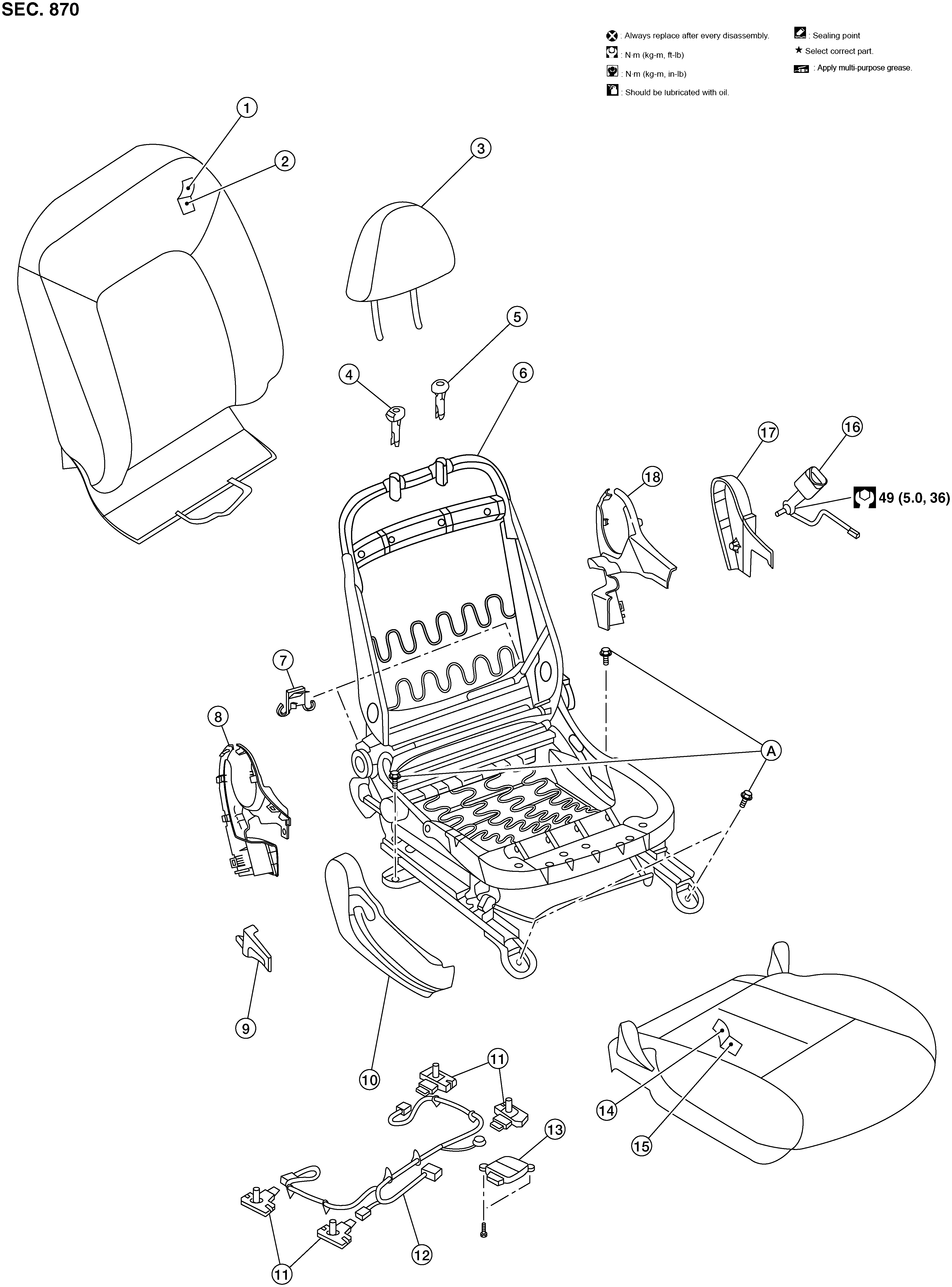

Exploded View

1.

Seatback trim

2.

Seatback pad

3.

Headrest

4.

Headrest holder (free)

5.

Headrest holder (locked)

6.

Seat assembly

7.

Slide finisher (LH/RH)

8.

Seat cushion inner finisher (RH)

9.

Recline level

10.

Seat cushion outer finisher (RH)

11.

Occupant classification system sensors

12.

Occupant classification system harness

13.

Occupant classification system control unit

14.

Seat cushion trim

15.

Seat cushion pad

16.

Seat belt buckle

17.

Seat cushion outer finisher (LH)

18.

Seat cushion inner finisher (LH)

A.

Refer to Installation
