Exploded View

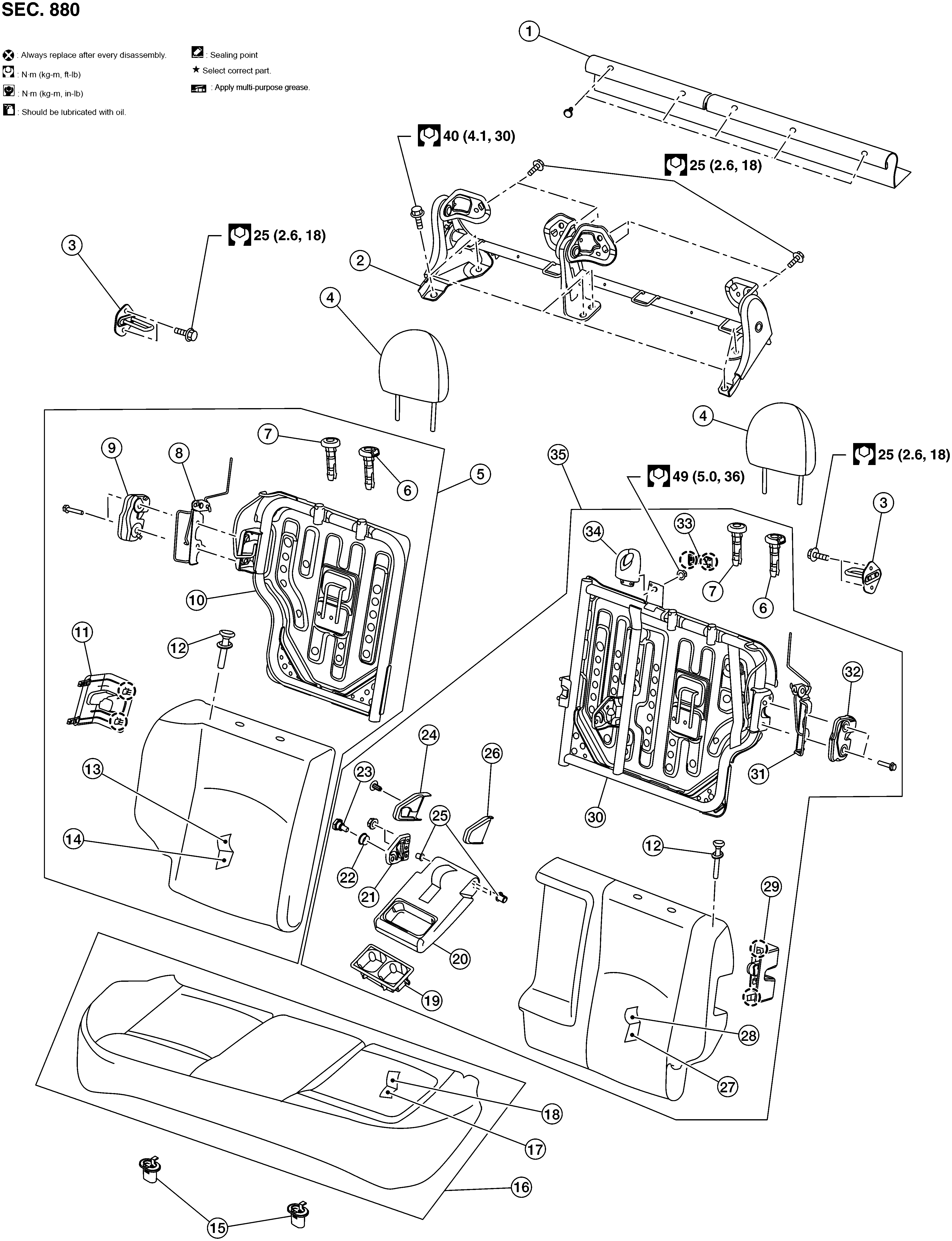

Rear Seat With Armrest
|
1. |
Seatback hinge trim |
2. |
Seatback hinge |
3. |
Seatback striker |
|
4. |
Headrest |
5. |
Seatback (RH) |
6. |
Headrest holder (locked) |
|
7. |
Headrest holder (free) |
8. |
Seatback latch bracket (RH) |
9. |
Seatback latch (RH) |
|
10. |
Seatback frame (RH) |
11. |
Seatback latch finisher (RH) |
12. |
Seatback latch release knob |
|
13. |
Seatback trim (RH) |
14. |
Seatback pad (RH) |
15. |
Seat cushion hook |
|
16. |
Seat cushion |
17. |
Seat cushion pad |
18. |
Seat cushion trim |
|
19. |
Cup holder |
20. |
Armrest |
21. |
Armrest hinge bracket |
|
22. |
Armrest pivot bolt bushing |
23. |
Armrest pivot bolt |
24. |
Armrest hinge bracket finisher (RH) |
|
25. |
Bushing |
26. |
Armrest hinge bracket finisher (LH) |
27. |
Seatback pad (LH) |
|
28. |
Seatback trim (LH) |
29. |
Seatback latch finisher (LH) |
30. |
Seatback frame (LH) |
|
31. |
Seatback latch bracket (LH) |
32. |
Seatback latch (LH) |
33. |
Seatbelt guide finisher |
|
34. |
Seat belt guide |
35. |
Seatback (LH) |
|
Pawl |

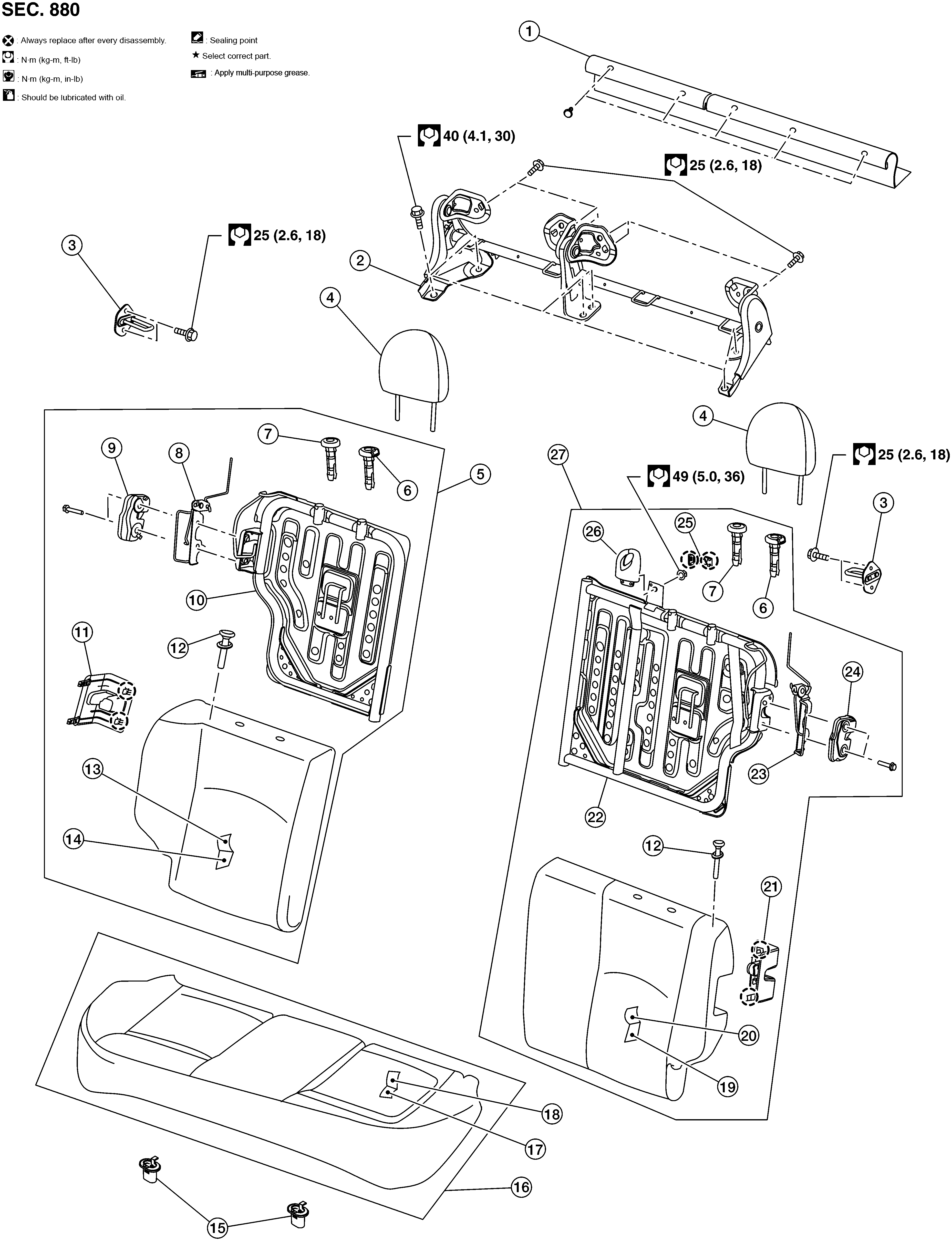

Rear Seat Without Armrest
|
1. |
Seatback hinge trim |
2. |
Seatback hinge |
3. |
Seatback striker |
|
4. |
Headrest |
5. |
Seatback(RH) |
6. |
Headrest holder (locked) |
|
7. |
Headrest holder (free) |
8. |
Seatback latch bracket (RH) |
9. |
Seatback latch (RH) |
|
10. |
Seatback frame (RH) |
11. |
Seatback latch finisher (RH) |
12. |
Seatback latch release knob |
|
13. |
Seatback trim (RH) |
14. |
Seatback pad (RH) |
15. |
Seat cushion hook |
|
16. |
Seat cushion |
17. |
Seat cushion pad |
18. |
Seat cushion trim |
|
19. |
Seatback pad (LH) |
20. |
Seatback trim (LH) |
21. |
Seatback latch finisher (LH) |
|
22. |
Seatback frame (LH) |
23. |
Seatback latch bracket (LH) |
24. |
Seatback latch (LH) |
|
25. |
Seatbelt guide finisher |
26. |
Seat belt guide |
27. |
Seatback (LH) |
|
|
Pawl |
