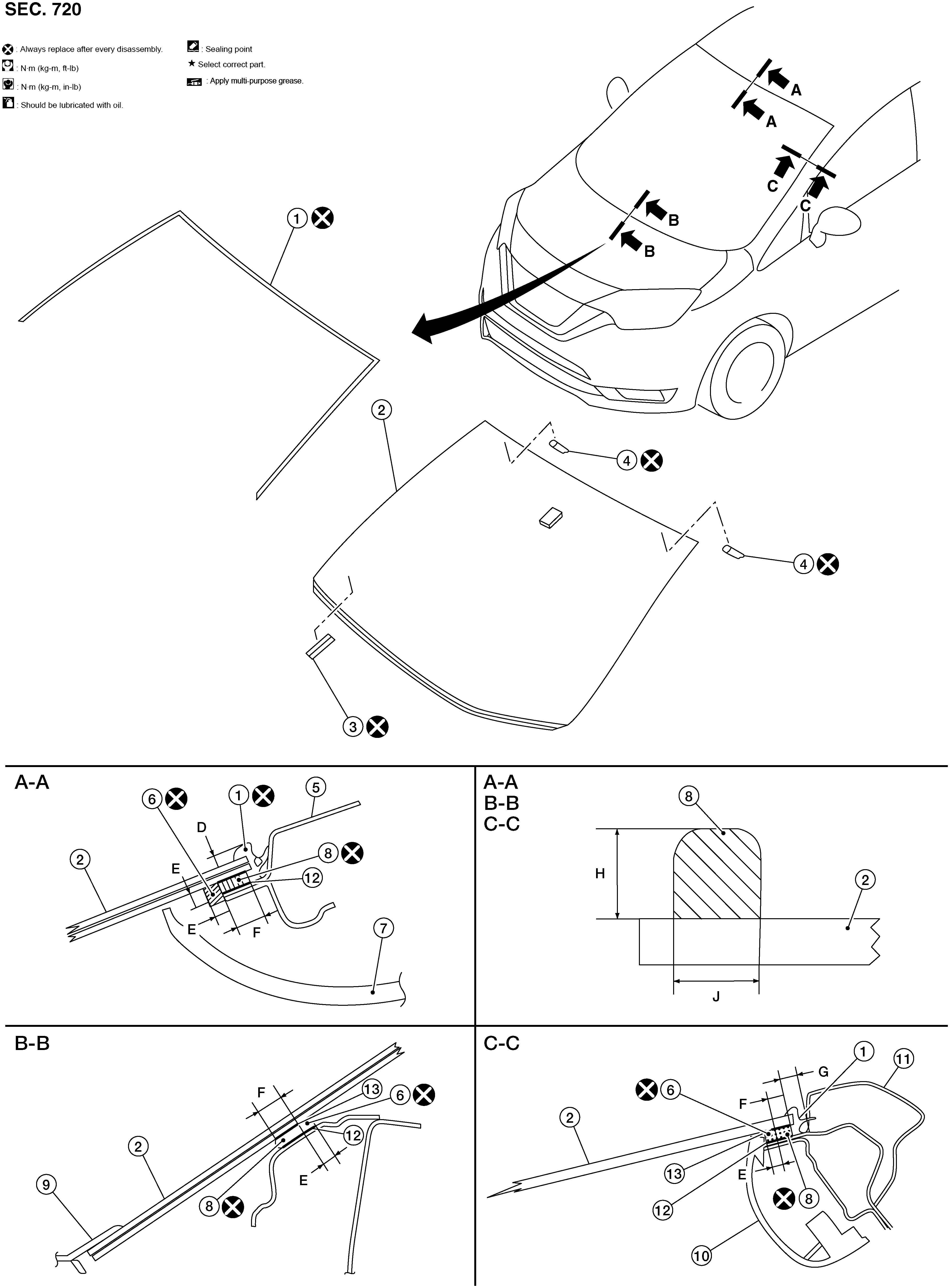

Exploded View

1.

Windshield glass molding

2.

Windshield glass

3.

Spacer

4.

Spacer

5.

Roof

6.

Dam rubber

7.

Headlining

8.

Adhesive

9.

Cowl top cover

10.

Front pillar finisher

11.

Body side outer

12.

Body primer

13.

Primer

D.

3.8 mm (0.15 in)

E.

5.0 mm (0.20 in)

F.

8.0 mm (0.31 in)

G.

6.2 mm (0.24 in)

H.

12.0 - 14.0 mm (0.47 - 0.55 in)

J.

7.0 - 9.0 mm (0.28 - 0.35 in)
