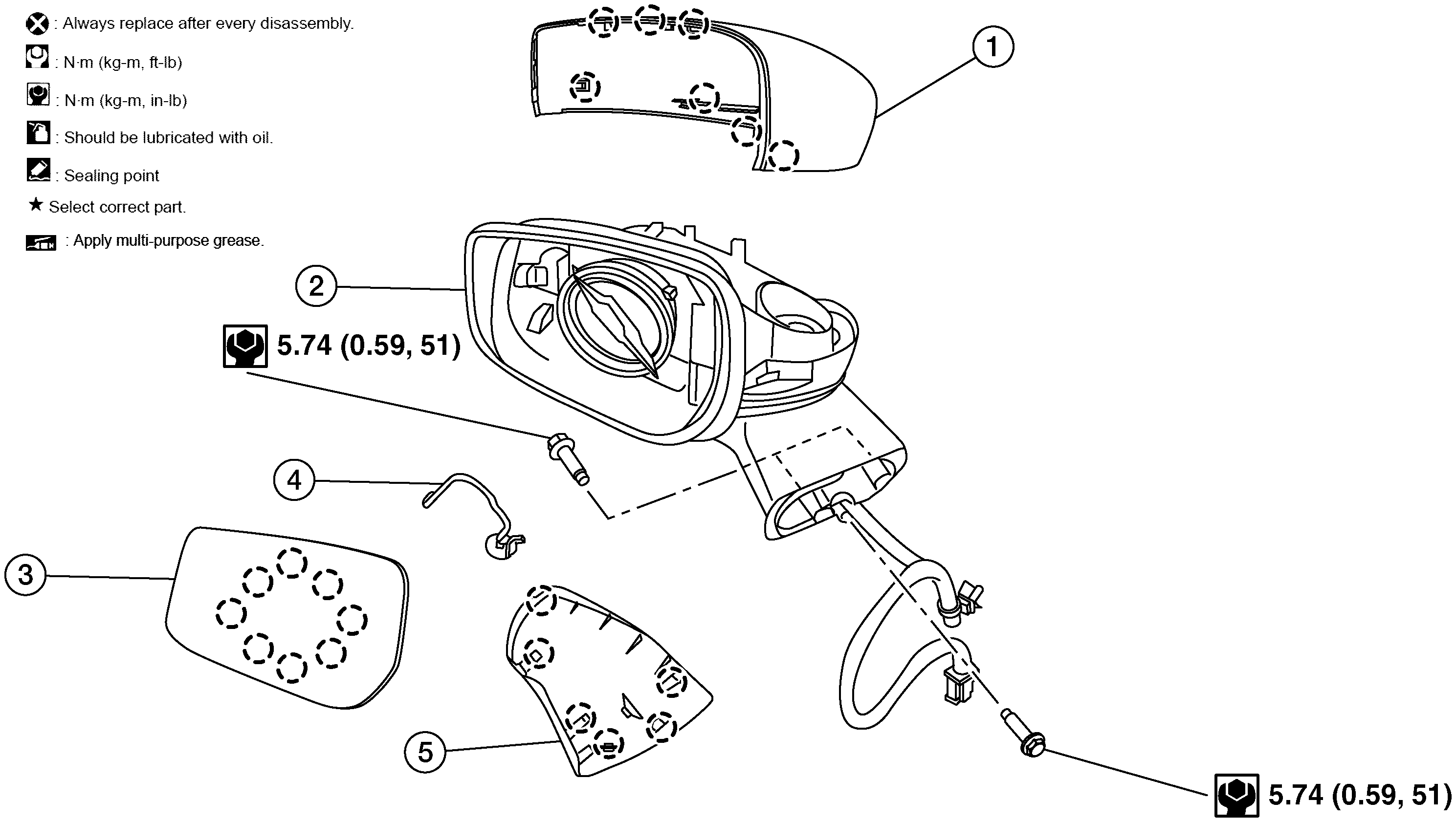

Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2017 Nissan Versa Note. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Door mirror rear finisher	2.	Door mirror	3.	Door mirror glass
4.	Side camera	5.	Door mirror base finisher		Pawl
