Exploded View

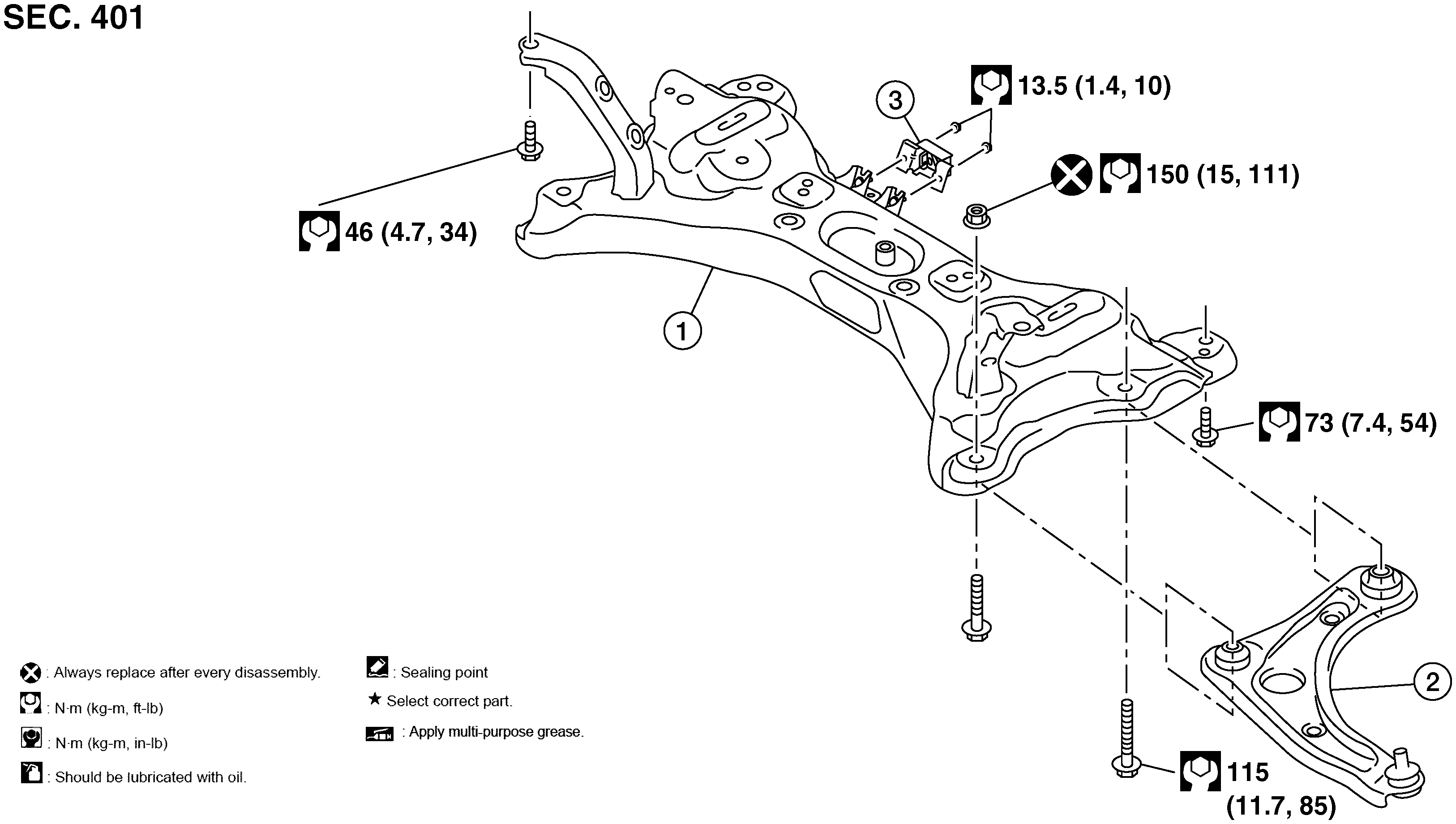

Fig 1: Transverse Link With Torque Specifications
GNSALEIA0061Z-061Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front suspension member

2.

Transverse link

3.

Exhaust mounting bracket
