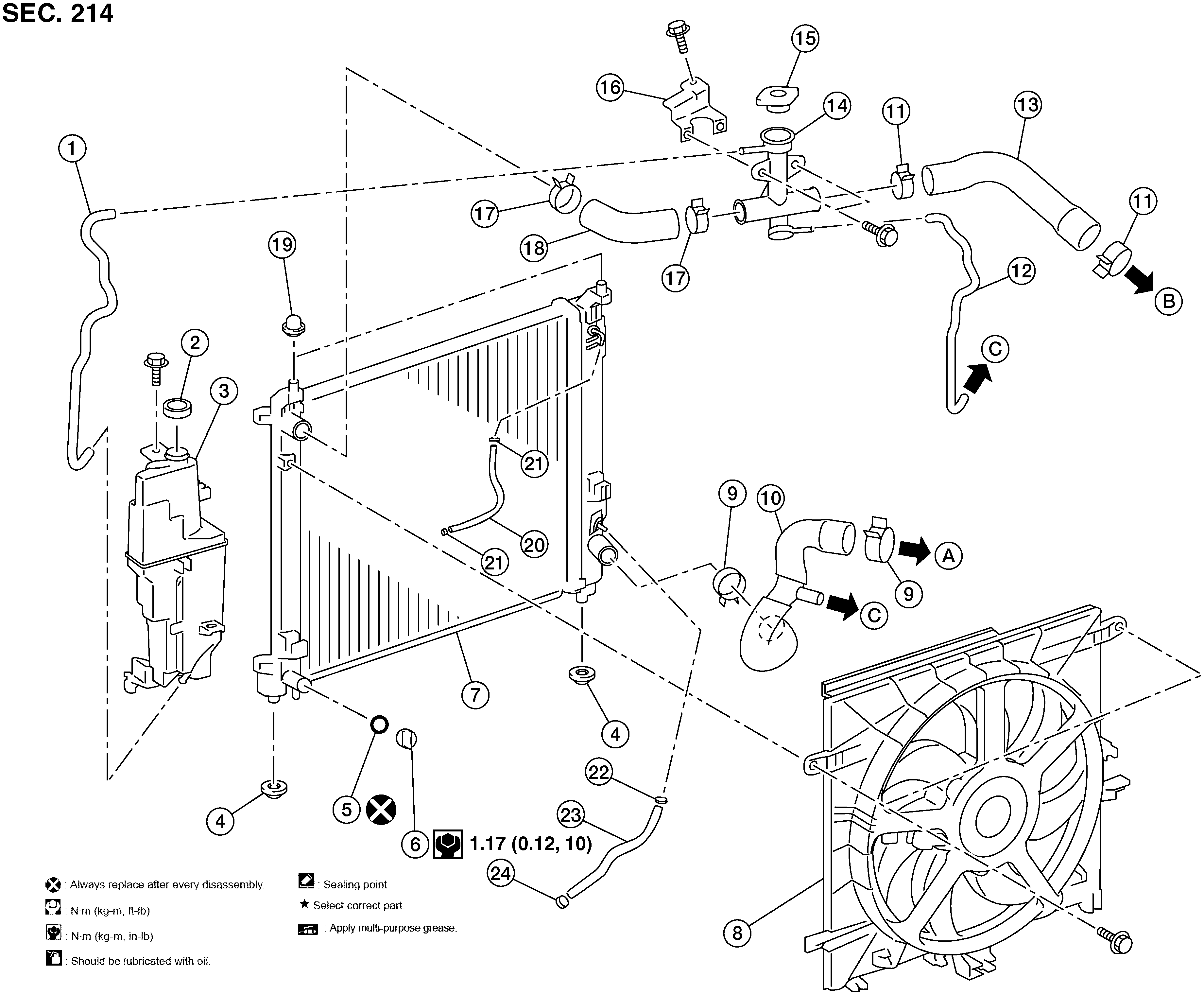

Exploded View
|
1. |
Reservoir tank hose |
2. |
Reservoir tank cap |
3. |
Reservoir tank |
|
4. |
Mounting rubber (lower) |
5. |
O-ring |
6. |
Drain plug |
|
7. |
Radiator |
8. |
Cooling fan assembly |
9. |
Clamp |
|
10. |
Radiator hose (lower) |
11. |
Clamp |
12. |
Oil cooler hose |
|
13. |
Radiator hose to water outlet (upper) |
14. |
Radiator cap adapter |
15. |
Radiator cap |
|
16. |
Radiator cap adapter bracket |
17. |
Clamp |
18. |
Radiator hose (upper) to radiator |
|
19. |
Mounting rubber (upper) |
20. |
CVT cooler hose (CVT models) |
21. |
Clamp |
|
21. |
Clamp |
22. |
Clamp |
23. |
CVT cooler hose (CVT models) |
|
24. |
Clamp |
A. |
To water inlet. Refer to Exploded View . |
B. |
To water outlet. Refer to Exploded View . |
|
C. |
To oil cooler. Refer to Exploded View . |
